30152 - Toro 52" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991)

52" Side-Discharge Mower Deck

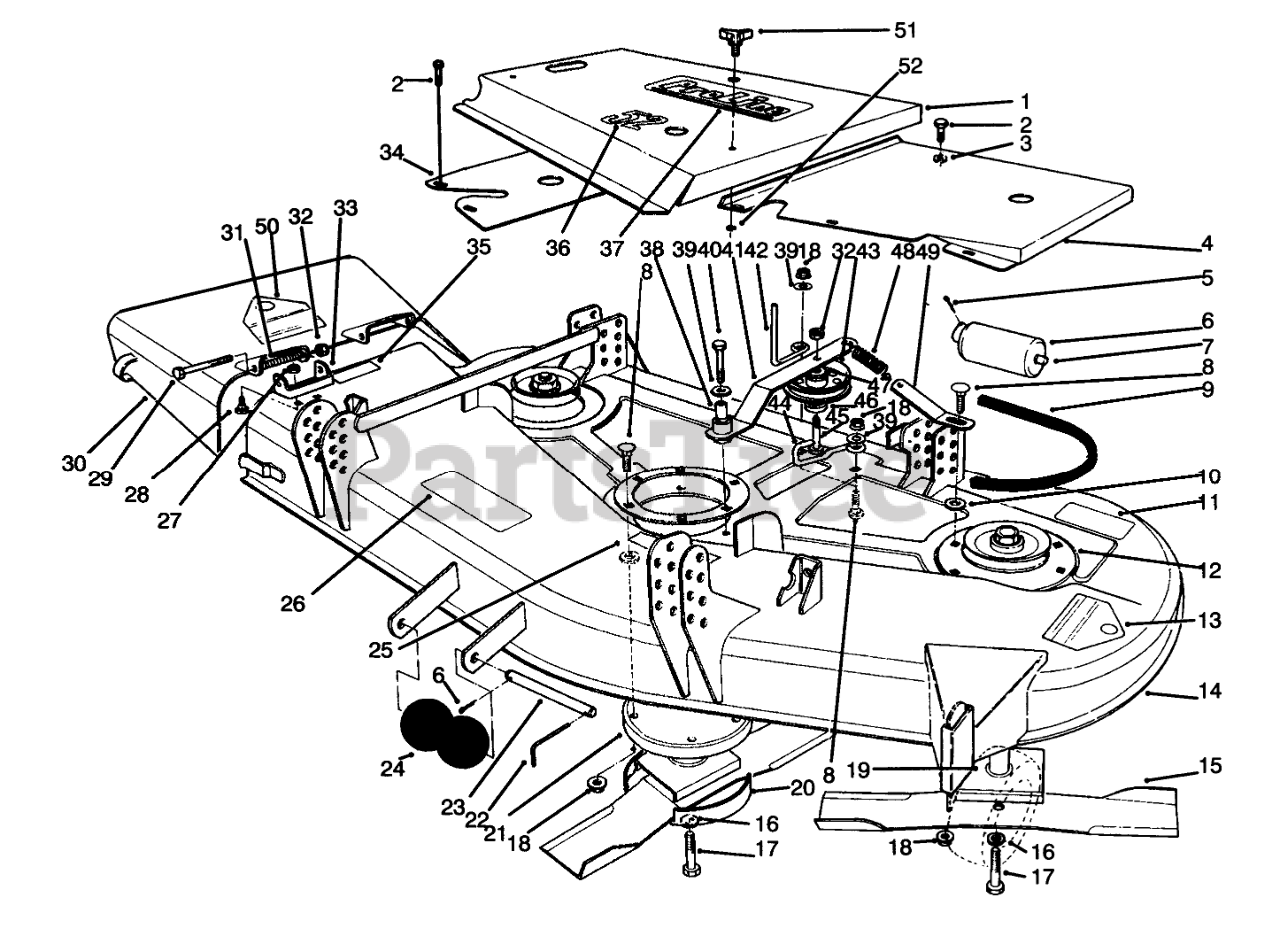

30152 - Toro 52" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) > Parts Diagrams (5) > CUTTING UNIT ASSEMBLY

  • Title
82-5410

1

Cover

Part# 82-5410 (Superseded to 82-5410-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $239.30

46-8560

2

SCREW-HHFTF

Part# 46-8560

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.44

3256-22

3

WASHER-FLAT

Part# 3256-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

51-3910

4

Cover

Part# 51-3910 (Superseded to 51-3910-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $176.24

3272-11

5

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.88

36-1740

6

ROLLER-DECK

Part# 36-1740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.63

40-0340

7

SHAFT-ROLLER, REAR

Part# 40-0340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $27.94

3231-22

8

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.42

27-1160

9

V-BELT

Part# 27-1160

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $42.28

3256-2

10

WASHER-FLAT

Part# 3256-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.44

68-8340

11

DECAL-TORQUE

Part# 68-8340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.66

27-7680

12

SUPPORT-DECK, RING

Part# 27-7680 (Superseded to 27-7680-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.98

43-8480

13

DECAL-DANGER

Part# 43-8480

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.17

14-2339

14

Deck Assembly (Incl. Ref. #11,13,25,26,35 & 50)

Part# 14-2339

OEM Warranty Repair Part for Toro

Not available

27-0990

15

Blade

Part# 27-0990 (Superseded to 27-0990-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.50

56-2390

BLADE-SAIL, EXTRA HIGH

Part# 56-2390 (Superseded to 56-2390-03)

Note: Not Illustrated.

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $23.47

3253-27

16

WASHER-LOCK

Part# 3253-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

44-2200

17

SCREW-BLADE

Part# 44-2200

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.09

32128-21

18

NUT-HF

Part# 32128-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.58

27-0870

19

SPINDLE ASM

Part# 27-0870

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $399.12

72-9361

20

CUP-SCALP, ANTI

Part# 72-9361

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.09

54-7781

21

HOUSING - SPINDLE ASM

Part# 54-7781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $605.46

57-0690

22

PIN-SPECIAL

Part# 57-0690

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.17

40-6400

23

SHAFT-ROLLER

Part# 40-6400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.82

29-4820

24

ROLLER

Part# 29-4820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.92

67-5360

25

DECAL-DANGER

Part# 67-5360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.05

66-1340

26

DECAL-DANGER, THROWN OBJECT

Part# 66-1340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.56

32152-1

27

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.33

3230-18

28

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.93

3211-15

29

SCREW-HH

Part# 3211-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.91

13-3949

30

Deflector-Grass (Incl. Ref.#50)

Part# 13-3949

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $267.58

40-6230

31

SPRING

Part# 40-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $25.64

3296-5

32

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

29-5590

33

Bracket-Pivot

Part# 29-5590 (Superseded to 29-5590-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $23.18

51-3890

34

Cover

Part# 51-3890 (Superseded to 51-3890-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $75.11

66-6380

35

DECAL-DANGER

Part# 66-6380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.14

51-3960

36

DECAL

Part# 51-3960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.08

74-2080

37

DECAL-PROLINE

Part# 74-2080

OEM Warranty Repair Part for Toro

Not available

51-3640

38

SLEEVE

Part# 51-3640

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.75

3256-24

39

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

323-11

40

SCREW-HH

Part# 323-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.62

55-7640

41

Arm-Idler

Part# 55-7640 (Superseded to 55-7640-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $72.75

52-4780

42

ROD-BELT

Part# 52-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.44

65-5940

43

PULLEY-IDLER

Part# 65-5940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.28

55-7620

44

GUIDE-BELT

Part# 55-7620

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $46.92

3211-8

45

SCREW-HH

Part# 3211-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.13

65-5950

46

BUSHING-PULLEY

Part# 65-5950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.08

7-0081

47

WASHER-FLAT

Part# 7-0081

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.89

51-3650

48

SPRING-EXTENSION

Part# 51-3650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.17

55-7650

49

PLATE-SPRING

Part# 55-7650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.76

54-9220

50

DECAL-DANGER

Part# 54-9220 (Superseded to 93-1122)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.70

62-6520

51

KNOB

Part# 62-6520

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.70

32151-72

52

RING-RETAINING

Part# 32151-72

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11
