30152 - Toro 52" Side-Discharge Mower Deck (SN: 089000001 - 089999999) (1998)

52" Side-Discharge Mower Deck

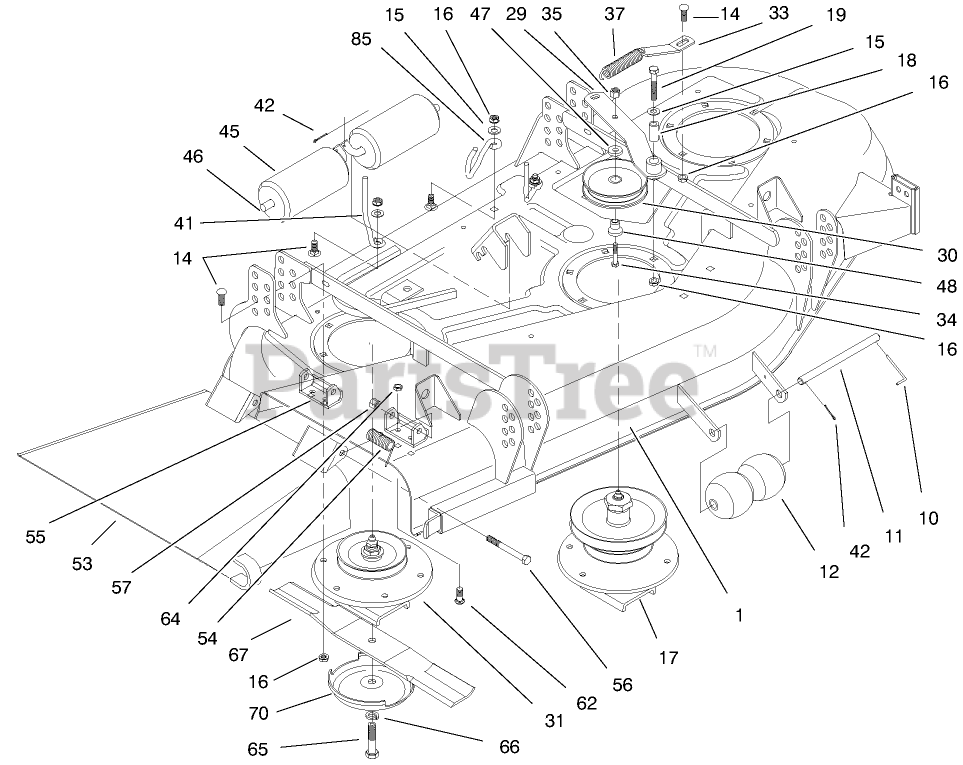

30152 - Toro 52" Side-Discharge Mower Deck (SN: 089000001 - 089999999) (1998) > Parts Diagrams (4) > DECK AND SPINDLE ASM

  • Title
94-6781

1

Deck ASM

Part# 94-6781 (Superseded to 94-5837)

OEM Warranty Repair Part for Toro

Not available

57-0690

10

PIN-SPECIAL

Part# 57-0690

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.70

40-6400

11

SHAFT-ROLLER

Part# 40-6400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.36

29-4820

12

ROLLER

Part# 29-4820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.29

3231-22

14

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.72

3256-24

15

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.55

32128-21

16

NUT-HF

Part# 32128-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.66

54-7781

17

HOUSING - SPINDLE ASM

Part# 54-7781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $679.21

51-3640

18

SLEEVE

Part# 51-3640

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.69

323-11

19

SCREW-HH

Part# 323-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.82

55-7640-03

29

IDLER ARM ASM

Part# 55-7640-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $81.60

65-5940

30

PULLEY-IDLER

Part# 65-5940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.64

27-0870-03

31

Spindle Hsg ASM

Part# 27-0870-03 (Superseded to 27-0870)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $463.36

55-7650

33

PLATE-SPRING

Part# 55-7650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.44

3211-8

34

SCREW-HH

Part# 3211-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.42

3296-5

35

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.87

51-3650

37

SPRING-EXTENSION

Part# 51-3650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.22

52-4780

41

ROD-BELT

Part# 52-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.59

3272-11

42

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

36-1740

45

ROLLER-DECK

Part# 36-1740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $33.07

40-0340

46

SHAFT-ROLLER, REAR

Part# 40-0340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.46

7-0081

47

WASHER-FLAT

Part# 7-0081

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

65-5950

48

BUSHING-PULLEY

Part# 65-5950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.55

40-6200-01

53

Deflector

Part# 40-6200-01

OEM Warranty Repair Part for Toro

Currently unavailable

40-6230

54

SPRING

Part# 40-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $28.77

29-5590-03

55

BRACKET-PIVOT

Part# 29-5590-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.99

3211-15

56

SCREW-HH

Part# 3211-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.64

3296-5

57

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.87

3230-18

62

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.29

32152-1

64

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

44-2200

65

SCREW-BLADE

Part# 44-2200

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.74

3253-27

66

WASHER-LOCK

Part# 3253-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.04

27-0990

67

Blade

Part# 27-0990 (Superseded to 27-0990-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.86

72-9361

70

CUP-SCALP, ANTI

Part# 72-9361

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $32.79

55-7620

85

GUIDE-BELT

Part# 55-7620

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $50.94
