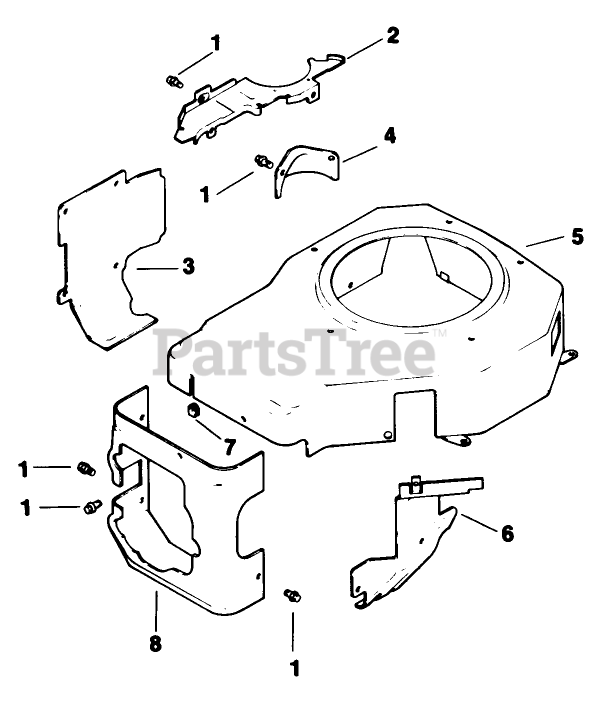

30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 010000001 - 019999999) (1991) Blower Housing Baffles-Engine Kohler Model Cv12.5t Spec. No. 1254 Parts Diagram
ProLine Walk-Behind Mower, Gear Drive, 12.5hp
Blower Housing Baffles-Engine Kohler Model Cv12.5t Spec. No. 1254 Parts Diagram
Toro SM-0545010
Screw
$
$
Currently unavailable
2
12_146_07
Plate-Blower Housing (Only On: 72042,72043,72062,72063)
$
$
Not available
Toro 12 063 01
Baffle-Cylinder Barrel (Only On: 72042, 72063, 72062, 72043)
$
$
Currently unavailable
4
12_096_05
Cover-Starter
$
$
Not available
5
12_027_03
Cover-Housing
$
$
Not available
Toro 12 063 05
Baffle-Carburetor (Only On: 72042, 72043, 72062, 72063)
$
$
Currently unavailable
Toro 12 313 03
Grommet-Blower Housing (Only On: 72042, 72043, 72062, 72063)
$
$
Currently unavailable
8
12_063_03
Baffle-Cylinder Head
$
$
Not available
12_113_02
Decal-H.P.
$
$
Not available
