30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 039000001 - 039999999) (1993) BLOWER HOUSING & BAFFLES-ENGINE KOHLER-MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

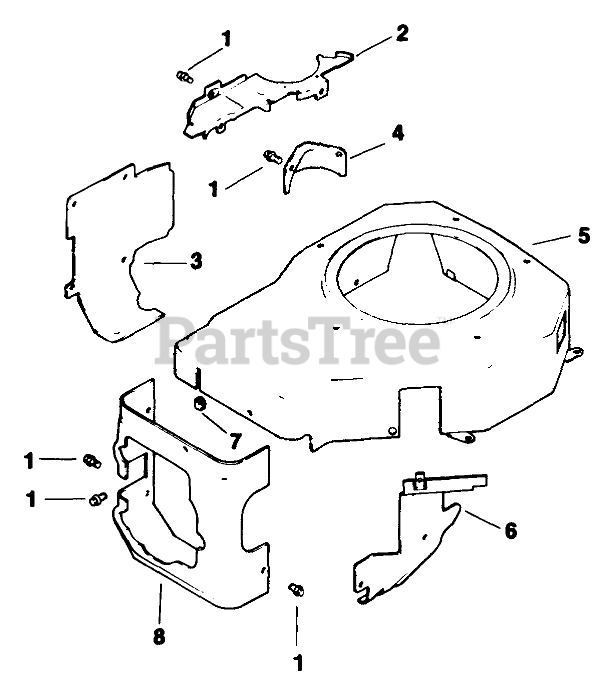

BLOWER HOUSING & BAFFLES-ENGINE KOHLER-MODEL CV12.5T SPEC. NO. 1254 Parts Diagram

  • Title

1

Kohler SM-0545010

Screw

$

$

Not available

2

1214607

Plate Blower

$

$

Not available

3

1206301

Baffle-Cylinder Barrel

$

$

Not available

4

1209605

Cover-Starter

$

$

Not available

5

1202703

Housing-Blower

$

$

Not available

6

1206305

Baffle-Carburetor

$

$

Not available

7

1231303

Grommet

$

$

Not available

8

1206303

Baffle-Cylinder Head

$

$

Not available

1211302

Decal-H.P.

Note: Not Illustrated.

$

$

Not available
