30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 039000001 - 039999999) (1993) Crankcase-Engine Kohler-Model Cv12.5t Spec. No. 1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

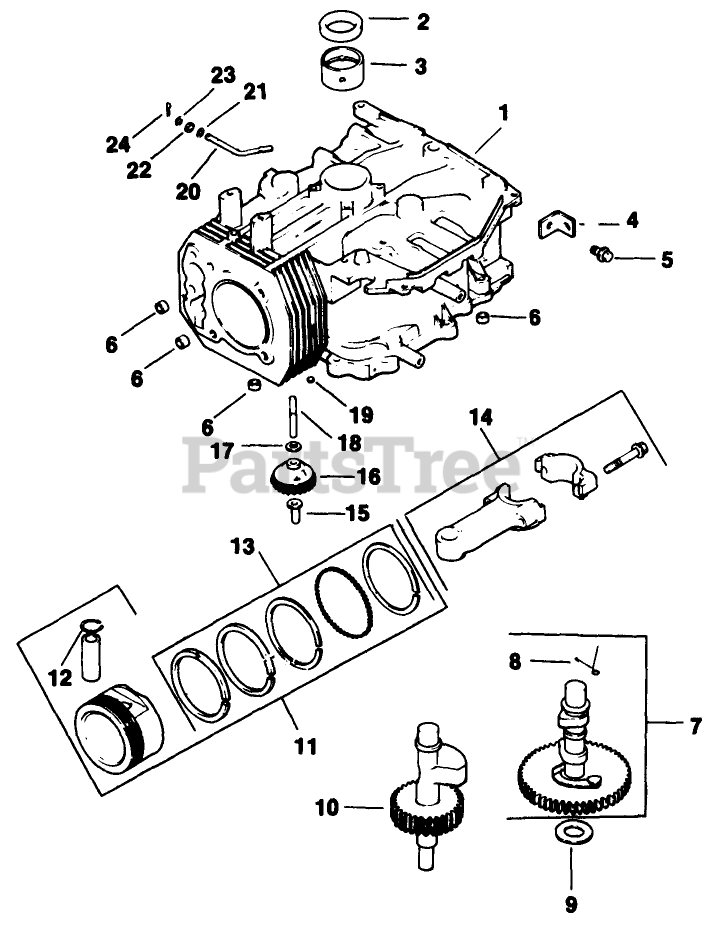

Crankcase-Engine Kohler-Model Cv12.5t Spec. No. 1254 Parts Diagram

  • Title

1

Toro 12_522_02

Short Block

$

$

Currently unavailable

2

12_032_02

Seal

$

$

Not available

3

12_030_01

Bearing-Crankshaft

$

$

Not available

12_030_02

Bearing-Crankshaft (.25)

Note: Not Illustrated.

$

$

Not available

12_030_03

Bearing-Crankshaft (.50)

Note: Not Illustrated.

$

$

Not available

4

Toro 12_445_02

Strap-Lifting (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

5

Toro SM-0839025

Screw

$

$

Currently unavailable

6

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

7

Toro 12 010 02

Camshaft ASM Incl 7

$

$

Currently unavailable

8

12_089_18

Spring-Actuating (Only On: 72042,72043,72062,72063)

$

$

Not available

9

Toro 12_422_08

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_02

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_10

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_11

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_12

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_06

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_07

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

10

12_144_04

Shaft-Balance

$

$

Not available

11

Toro 12 874 01

Piston ASM STD INC 11-12 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

Toro 12_874_02

Piston ASM .25 INCL 11-12 (Only On: 72042,72043,72062, 72063)

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12 874 03

Piston ASM .50 INCL 11-12 (Only On: 72042, 72043, 72062, 72063)

Note: Not Illustrated.

$

$

Currently unavailable

12

12_018_02

Retainer-Piston Pin (Only On: 72042, 72043,72062,72063)

$

$

Not available

13

12_108_01

Ring Set STD (Only On: 72042,72043,72062,72063)

$

$

Not available

12_108_02

Ring Set .25 (Only On: 72042,72043,72062,72063)

Note: Not Illustrated.

$

$

Not available

12_108_03

Ring Set .50 (Only On: 72042,72043,72062,72063)

Note: Not Illustrated.

$

$

Not available

14

Toro 12 067 01

Connecting Rod STD (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

Toro 12 067 02

Connecting Rod .25 (Only On: 72042, 72063, 72062, 72043)

Note: Not Illustrated.

$

$

Currently unavailable

15

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

16

Toro 12 043 05

Gear-Governor ASM (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

17

Toro SM-0631005

Washer

$

$

Currently unavailable

18

12_144_02

Shaft-Govenor Gear

$

$

Not available

19

Toro 53_139_09

Plug-Cup

$

$

Currently unavailable

20

Toro 12 144 01

Shaft-Governor Cross (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

21

Toro X-25-102

Washer

$

$

Currently unavailable

22

Toro SM-0631015

Washer-Governor Shaft (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

23

12_032_01

Seal

$

$

Not available

24

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable
