30156 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 039000001 - 039999999) (1993) Fuel System-Engine Kohler-Model Cv12.5t Spec. No. 1254 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

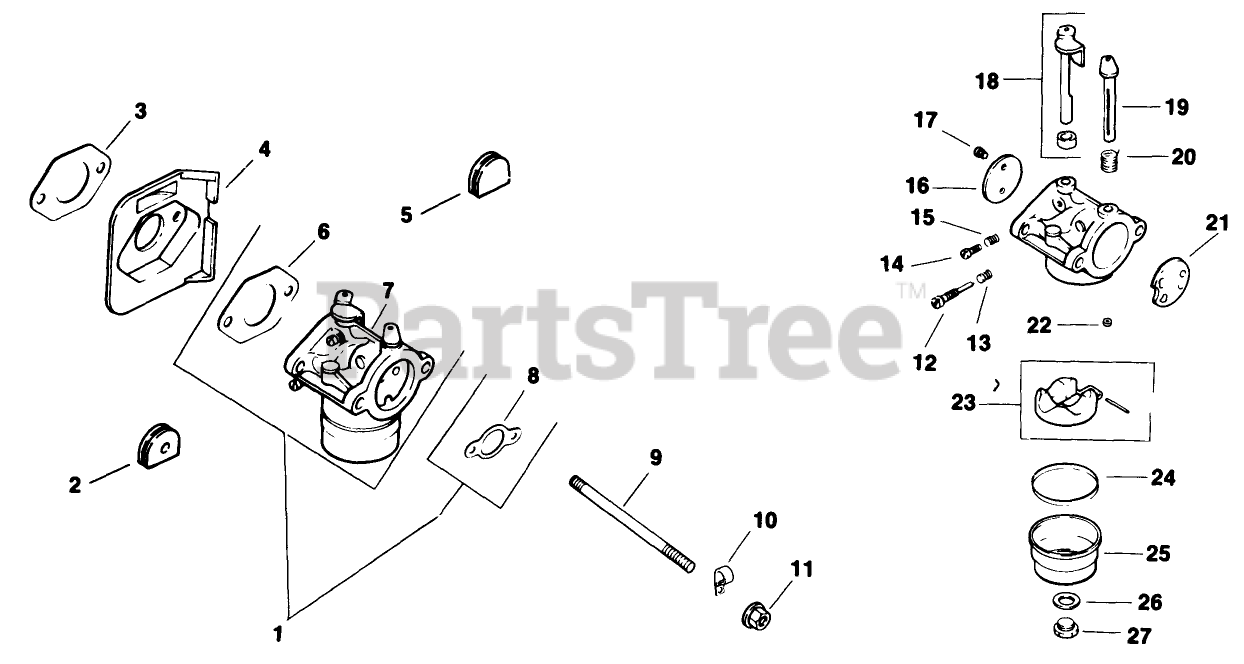

Fuel System-Engine Kohler-Model Cv12.5t Spec. No. 1254 Parts Diagram

  • Title

1

Toro 12_853_11

Kit-Carburetor

$

$

Currently unavailable

2

Toro 12 313 01

Grommet (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

3

Toro 12 041 01

Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

4

Toro 12_265_01

Deflector-Heat (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

5

Toro 12_313_05

Grommet

$

$

Currently unavailable

6

Toro 12 041 01

Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

7

12_053_10

Carburetor (Ref.)

$

$

Not available

8

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

9

Toro M-0629122

Stud M6x1.0x110 (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

10

Toro 47 154 01

Clip-Cable (Only On: 72103)

$

$

Currently unavailable

11

Toro SM-0641060

Nut

$

$

Currently unavailable

12

Toro 12 368 01

Needle-Idle Fuel Adjust (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

13

Toro 12 089 09

Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

14

12_086_04

Screw-Idle Speed Adjust (Only On: 72042,72043,72062,72063)

$

$

Not available

15

Toro 12 089 09

Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

16

12_146_03

Plate-Throttle (Only On: 72042,72043,72062,72063)

$

$

Not available

17

Toro 25_086_27

Screw-Throttle Plate (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

18

Toro 12 144 09

Shaft-W/Lever Seal (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

19

Toro 12 144 08

Shaft-Choke (Only On: 72042. 72063, 72062, 72043)

$

$

Currently unavailable

20

Toro 12 089 10

Spring-Choke Return (Only On: 72042,72063, 72062, 72043)

$

$

Currently unavailable

21

Toro 12 146 02

Plate-Choke (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

22

Toro 12_337_01

Jet-Main

$

$

Currently unavailable

23

Toro 12_757_02

Kit-Float (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

24

12_042_05

Gasket-Bowl

$

$

Not available

25

Toro 12 104 01

Bowl-Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

26

Toro 12 041 06

Gasket-Bowl Screw (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

27

Toro 12 086 05

Screw-Fuel Bowl (Only On: 72042, 72063,72062, 72043)

$

$

Currently unavailable

Toro 12_757_01

Kit-Carburetor Repair (Only On: 72042,72043,72062,72063)

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_755_09

Kit-High Altitude (Only On: 72042,72043,72062,72063)

Note: Not Illustrated.

$

$

Currently unavailable
