30157 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 069000001 - 690001407) (1996) EXHAUST Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

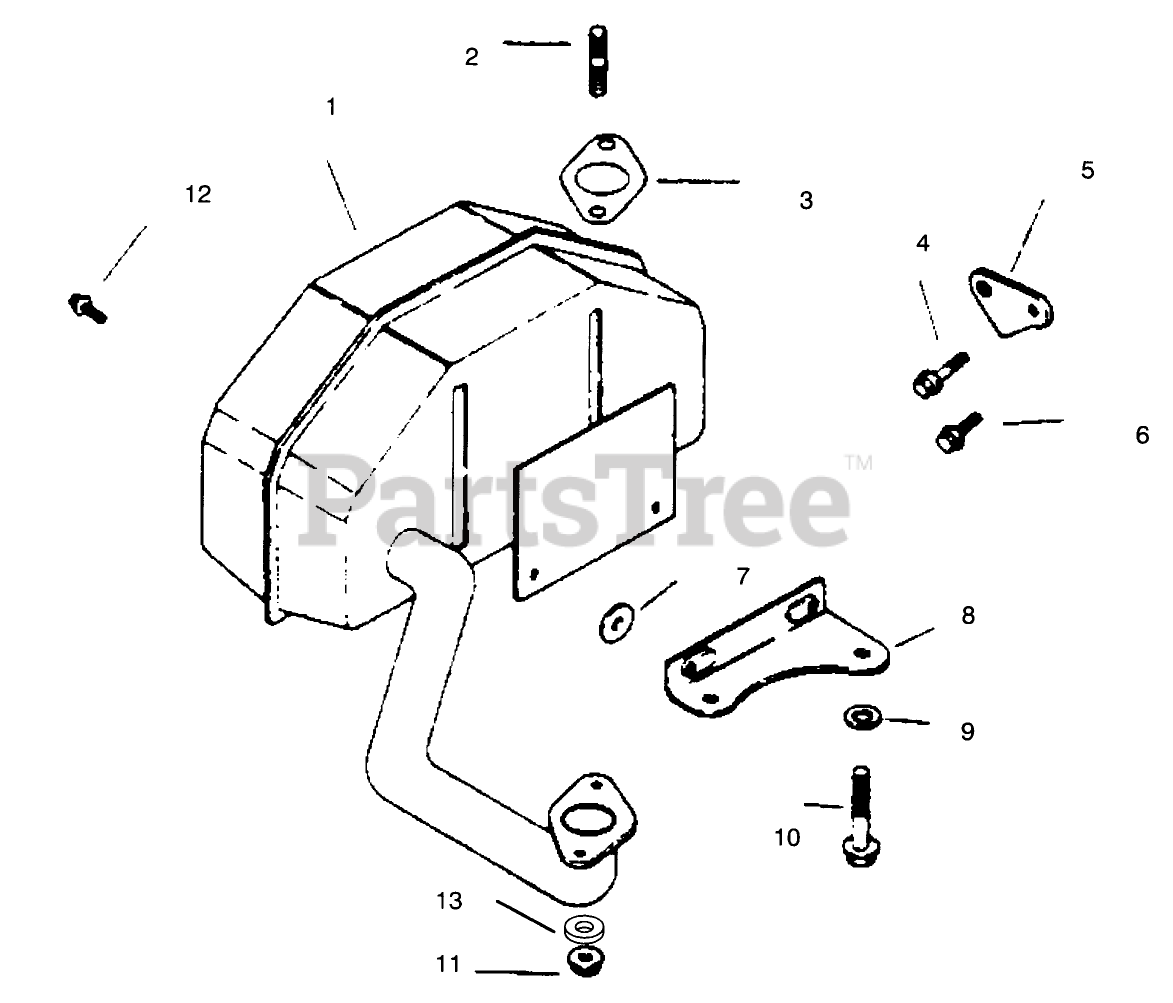

EXHAUST Parts Diagram

  • Title

1

1206803

Muffler

$

$

Not available

2

Kohler M-0829033

Stud
(Superseded to M-829033)

$5.49

$

In Stock, Qty 13

0

3

1204103

Gasket-Exhaust

$

$

Not available

4

Kohler M-0645025

Screw
(Superseded to M-645025)

$3.49

$

In Stock, Qty 14

0

5

1244506

Strap-Lifting

$

$

Not available

6

Kohler M-0645020

Screw
(Superseded to M-645020)

$2.99

$

In Stock, Qty 7

0

7

Kohler X-25-52

Washer
(Superseded to X-25-52-S)

$3.99

$

In Stock, only 2 left!

0

8

1212639

Bracket-Muffler

$

$

Not available

9

1246801

Washer

$

$

Not available

10

1208613

Screw

$

$

Not available

11

Kohler M-0841080

Nut
(Superseded to M-841080)

$2.49

$

In Stock, Qty 16

0

12

Kohler M-0650012

Screw
(Superseded to M-650012-S)

$3.49

$

In Stock, only 3 left!

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

1275501

Gasket Set

$

$

Not available

1275530

Kit-Bracket

$

$

Not available
