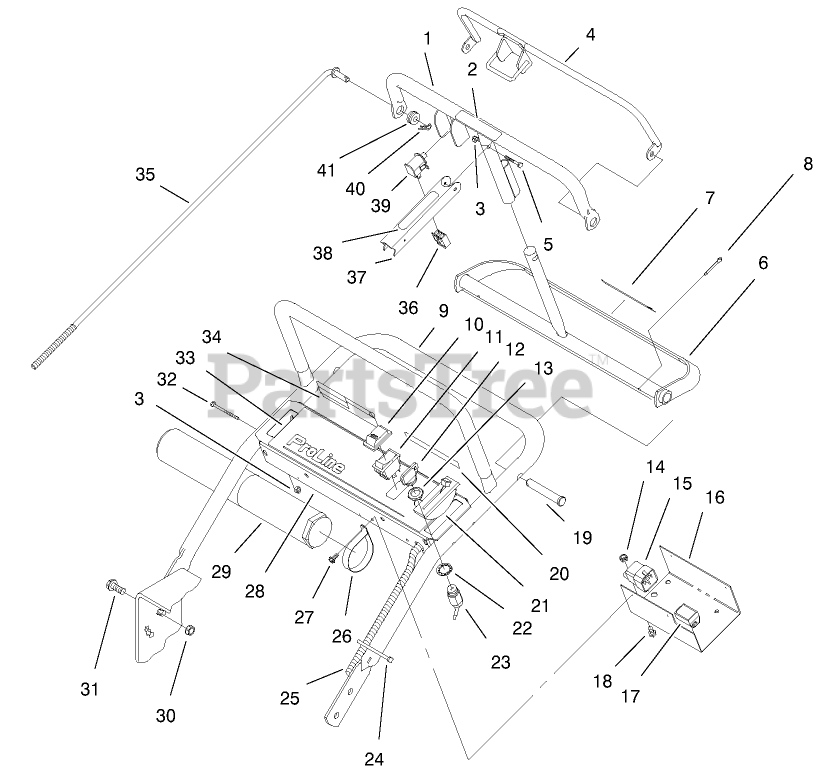

30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 099001180 - 099999999) (1999) HANDLE AND CONTROL PANEL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 13hp

HANDLE AND CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 82-7690-03

BAR-CONTROL

$307.99

$

In Stock, only 1 left!

0

2

Toro 82-2290

DECAL

$13.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

4

Toro 82-7680-03

BAIL

$166.99

$

Usually ships in 3-6 days

0

5

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 6

0

6

Toro 99-8501-03

CONTROL-PIVOT
(Superseded to 106-5477-03)

$222.99

$

Usually ships in 3-6 days

0

7

Toro 82-2280

DECAL

$11.99

$

Usually ships in 3-6 days

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 15

0

9

Toro 67-6440-01

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available

10

Toro 82-3820

BOOT-SWITCH

$

$

Not available

11

Toro 82-2300

SWITCH
(Superseded to 121-8032)

$52.99

$

In Stock, only 1 left!

0

12

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

13

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 63-7590

RELAY

$89.99

$

Usually ships in 3-6 days

0

16

Toro 93-1187-03

PANEL-BOTTOM

$53.99

$

Usually ships in 3-6 days

0

17

Toro 94-9666

MODULE
(Superseded to 107-4113)

$

$

Not available

18

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

19

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 4 left!

0

20

Toro 65-3090

DECAL-INSTRUCTION

$

$

Not available

21

Toro 74-0630

CONTROL-THROTTLE

$139.99

$

Usually ships in 3-6 days

0

22

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 8

0

23

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

Usually ships in 3-6 days

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

25

Toro 95-2803

WIRE HARNESS

$

$

Not available

26

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

28

Toro 82-2180-03

PANEL-CONTROL

$

$

Not available

29

Toro 74-0720

TUBE-MANUAL

$26.99

$

Usually ships in 3-6 days

0

30

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

32

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

33

Toro 82-7730

DECAL-CONTROL PANEL

$

$

Not available

34

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

35

Toro 82-7632

ROD-CONTROL

$80.99

$

In Stock, only 2 left!

0

36

Toro 218-595

CONNECTOR-BODY

$

$

Not available

37

Toro 51-4850-03

LEVER-BRAKE, PARKING

$42.99

$

In Stock, only 1 left!

0

38

Toro 52-2010

DECAL-LEVER, PARKING

$6.49

$

In Stock, only 1 left!

0

39

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0

40

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

41

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, only 4 left!

0
