30159 - Toro ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 200000001 - 200999999) (2000) IGNITION/ELECTRICAL Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 13hp

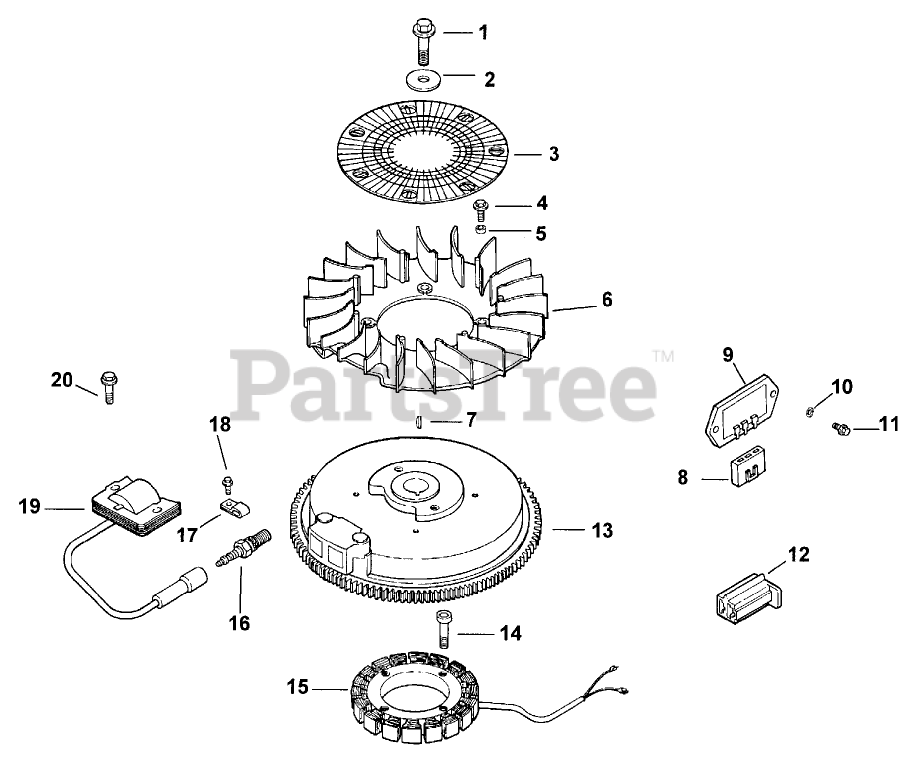

IGNITION/ELECTRICAL Parts Diagram

  • Title

1

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$3.49

$

Usually ships in 2-5 days

0

2

1248603

Washer-Flat

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

3

1216203

Screen-Grass

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

4

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$2.49

$

In Stock, only 3 left!

0

5

1211201

Spacer

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

6

1215702

Fan

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

7

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$2.99

$

In Stock, only 4 left!

0

8

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$7.99

$

In Stock, Qty 11

0

9

1240301

Rectifier-Unregulated

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

10

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$2.49

$

In Stock, Qty 6

0

11

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$2.49

$

In Stock, only 3 left!

0

12

4115503

Connector

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

13

1202515

Flywheel

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

14

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$2.49

$

In Stock, only 2 left!

0

15

Kohler 54 755 09

Kit-Stator-15 Amp (Incl. Bracket P/N #24 126 71)
(Superseded to 54 755 09-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$149.99

$

In Stock, Qty 15

0

16

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$3.49

$

In Stock, Qty 20+

0

17

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$2.49

$

Usually ships in 2-5 days

0

18

Kohler M-0545010

Screw
(Superseded to M-545010)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$4.49

$

In Stock, Qty 13

0

19

1258402

Module-Ignition

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

20

Kohler M-0545020

Screw

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

Kohler X-25-5

Washer
(Superseded to X-25-5-S)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler X-25-5

Washer
(Superseded to X-25-5-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$2.49

$

Usually ships in 2-5 days

0

1251801

Lead-White

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

Kohler 2551805

Lead-Black

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

Kohler 2551805

Lead-Black

Note: Not illustrated

$

$

Not available

2551829

Lead-Black

Note: Not illustrated

$

$

Not available

2551829

Lead-Black

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$

$

Not available

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Not illustrated

$15.99

$

Usually ships in 2-5 days

0

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Kohler Engine Model CV13T SP 21524 Obtain parts from kohler

$15.99

$

Usually ships in 2-5 days

0
