3016 L (1691973) - AGCO Rear-Engine Riding Mower, 16hp Control Lever Parts Diagram

Rear-Engine Riding Mower, 16hp

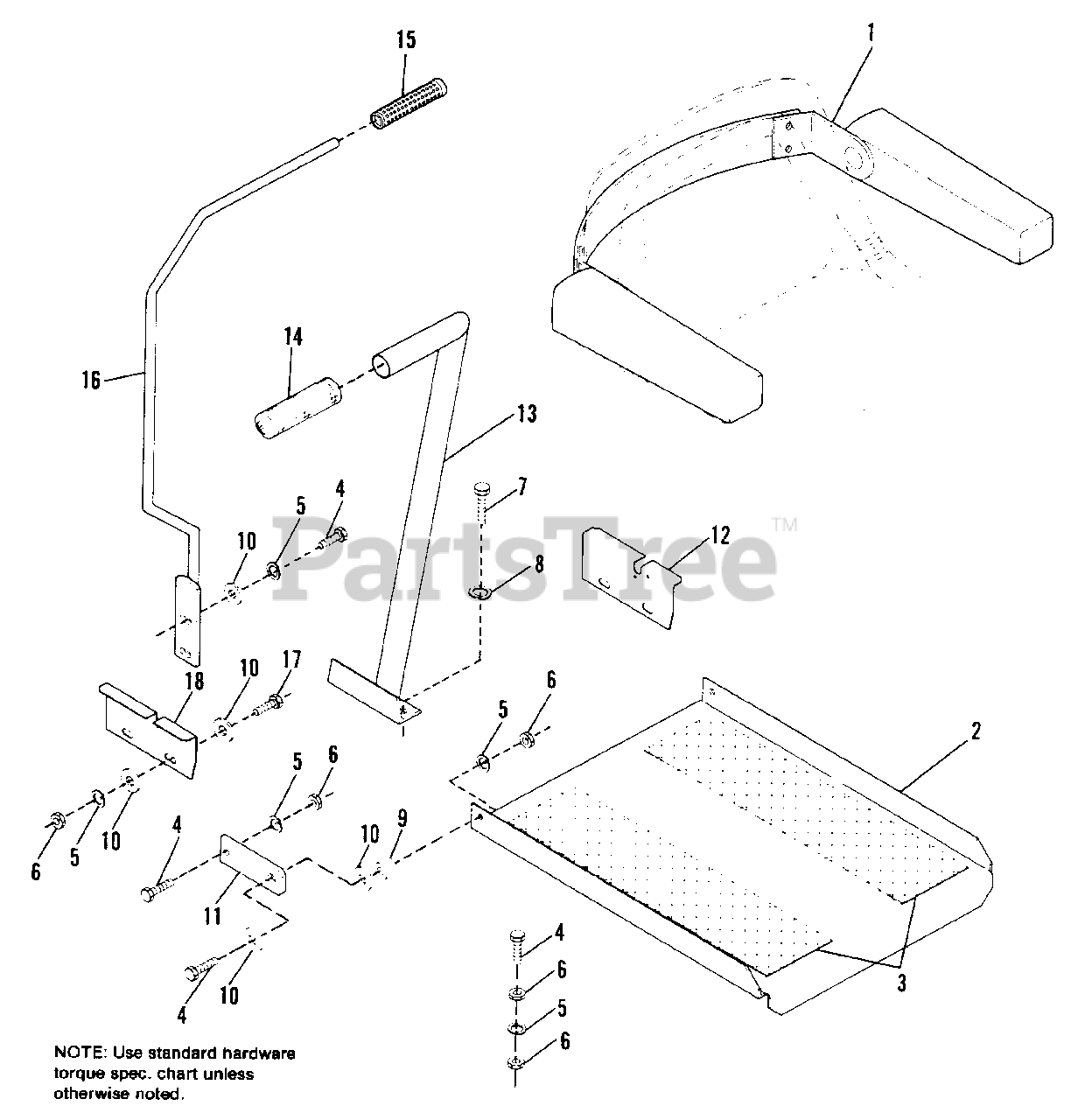

Control Lever Parts Diagram

  • Title

1

Simplicity 1712533

ARM KIT Seat

$

$

Not available

2

Simplicity 1705714

FOOTREST ASSY.

$

$

Not available

3

Simplicity 1705320

PAD, Non-Skid

$

$

Not available

4

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 2 left!

0

5

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1921210SM

CAPSCREW, Hex, 3/18-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

8

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

9

Simplicity 1710437SM

BUSHING

$18.99

$

Usually ships in 2-12 days

0

10

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 18

0

11

Simplicity 1712514

BRACKET, Footrest

$

$

Not available

12

Simplicity 1712511

PLATE, Neutral, L. H.

$

$

Not available

13

Simplicity 1711551

HANDRAIL ASSY.

$

$

Not available

14

Simplicity 1711555

GRIP

$

$

Not available

15

Simplicity 1710434SM

GRIP, Handle

$

$

Not available

16

Simplicity 1710431

HANDLE ASSY.

$

$

Not available

17

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

18

Simplicity 1712510

PLATE, Neutral, R.H.

$

$

Not available
