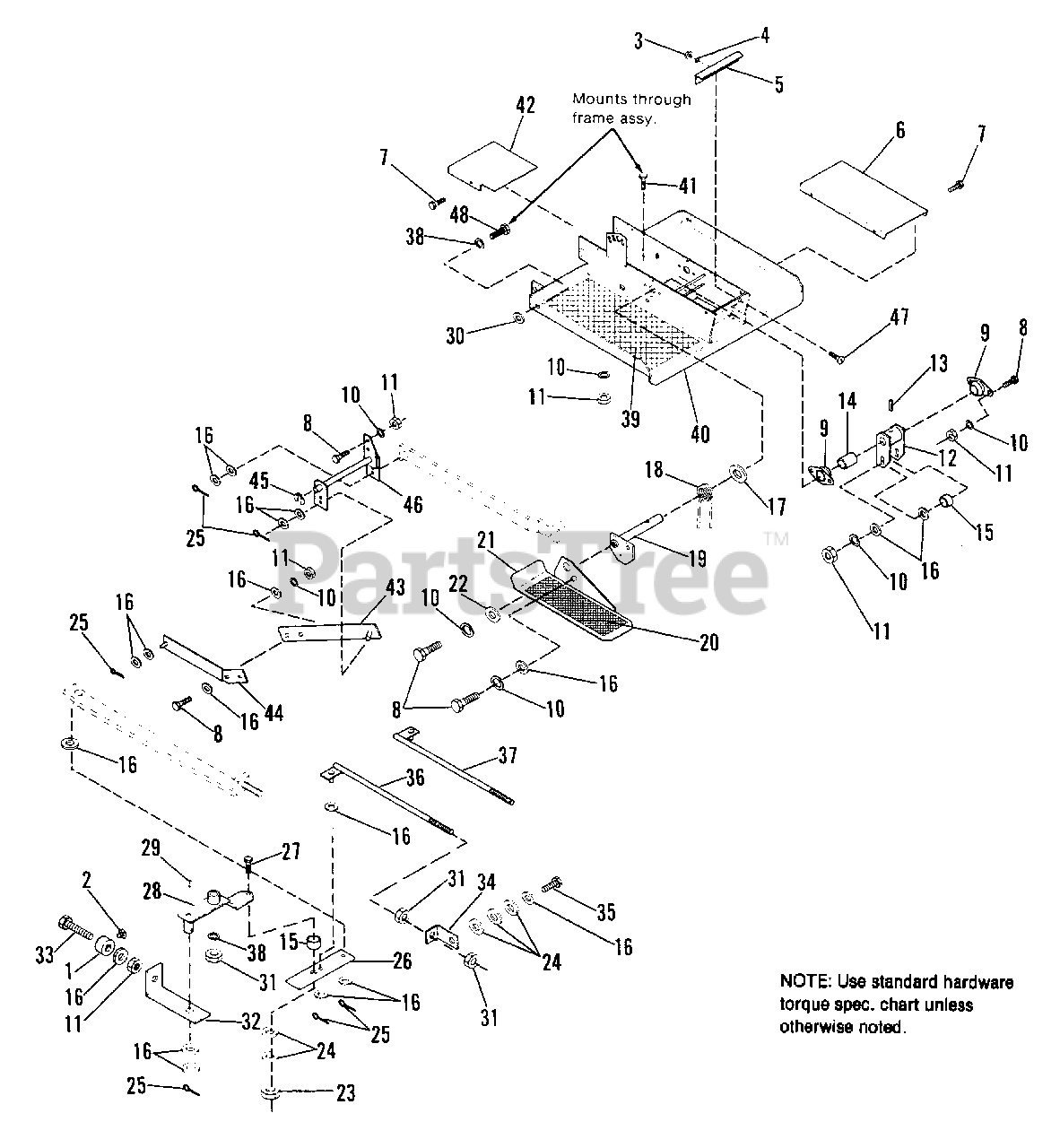

3016 S (1691970) - AGCO Rear-Engine Riding Mower, 16hp Control Pedal Group Parts Diagram

Rear-Engine Riding Mower, 16hp

Control Pedal Group Parts Diagram

  • Title

1

Simplicity 1669597SM

COLLAR, Set

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1928804SM

SETSCREW, Sq. Hd., 1/4-20 x 3/8

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 1916621SM

NUT, Hex, #10-24

$3.49

$

In Stock, only 2 left!

0

4

Simplicity 1917356SM

LOCKWASHER, #10
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1706369

CLAMP, Light

$

$

Not available

6

Simplicity 1712324

COVER, Front

$

$

Not available

7

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

9

Simplicity 1712345SM

BEARING, Flanged

$9.99

$

Usually ships in 2-12 days

0

10

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1712365

ARM ASSY.

$

$

Not available

13

Simplicity 2860396SM

ROLL PIN

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1712368

SPACER

$

$

Not available

15

Simplicity 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

16

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 18

0

17

Simplicity 1960528SM

WASHER, Plain

$7.49

$

Usually ships in 2-12 days

0

18

Simplicity 1712392SM

SPRING, Torsion

$

$

Not available

19

Simplicity 1705994

SPEED CONTROL SHAFT ASSY.

$

$

Not available

20

Simplicity 1712380

PAD, Non-Skid

$

$

Not available

21

Simplicity 1705939

PEDAL, Control

$

$

Not available

22

Simplicity 1960009

WASHER, Plain

$

$

Not available

23

Simplicity 1935048SM

LOCKNUT, Hex, Flanged, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1960027SM

WASHER, Plain
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1960394SM

COTTER PIN

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 1712383SM

BAR
(Superseded to 1712383ASM)

$8.99

$

Usually ships in 2-12 days

0

27

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

28

Simplicity 1712384SM

CONTROL ARM ASSY.

$

$

Not available

29

Simplicity 2860397SM

KEY, Hi-Pro, 1/8 x 1/2

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

32

Simplicity 1712184

STOP ASSY., Forward Travel

$

$

Not available

33

Simplicity 1923141SM

CAPSCREW, Hex 5/16-18 x 2-3/4
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

34

Simplicity 1712369

LINK, Adjusting

$

$

Not available

35

Simplicity 1921977SM

CAPSCREW, Hex, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 16

0

36

Simplicity 1712370SM

SPEED CONTROL LINK ASSY., R.H.

$153.99

$

Usually ships in 2-12 days

0

37

Simplicity 1712373SM

SPEED CONTROL LINK ASSY., L.H.

$111.99

$

Usually ships in 2-12 days

0

38

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

39

Simplicity 1712381

PAD, Non-Skid

$

$

Not available

40

Simplicity 1705815

FOOTREST ASSY.

$

$

Not available

41

Simplicity 1922127SM

CAPSCREW, Hex 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 3 left!

0

42

Simplicity 1712325

COVER, Rear

$

$

Not available

43

Simplicity 1712358

LINK ASSY., Clutch. Rear

$

$

Not available

44

Simplicity 1712387

LINK ASSY., Adjusting

$

$

Not available

45

Simplicity 1703805SM

KLIPRING, 1/2"

$3.49

$

In Stock, only 2 left!

0

46

Simplicity 1712354

SHAFT ASSY.

$

$

Not available

47

Simplicity 1928732SM

SCREW, Pan Hd., #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

48

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0
