30161 - Toro 36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) SPINDLE, BLADE AND BELT ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

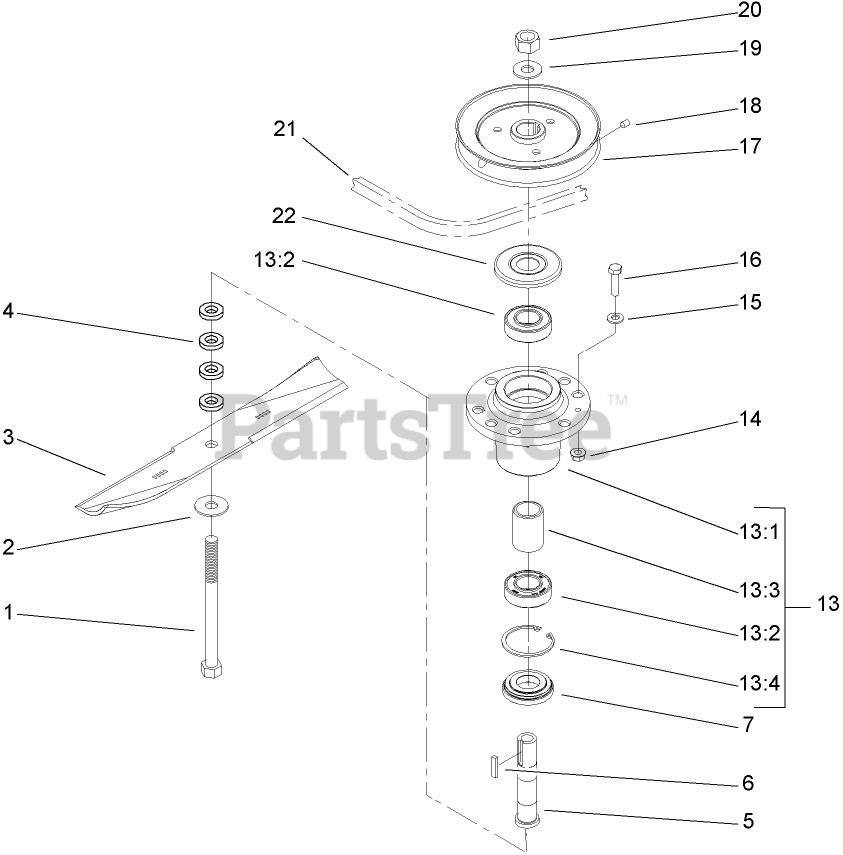

SPINDLE, BLADE AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 10

0

2

Toro 1-513208

WASHER-SPRING

$9.99

$

In Stock, Qty 8

0

3

Toro 103-2508

BLADE-LIFT, LOW

$36.99

$

In Stock, Qty 11

0

3

Toro 103-2528

Blade-Notched

$34.99

$

In Stock, Qty 20+

0

4

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-323529

TUBE-SPINDLE, SHORT

$94.99

$

In Stock, only 3 left!

0

6

Toro 1-807267

KEY

$2.99

$

In Stock, Qty 16

0

7

Toro 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

0

13

Toro 103-8353

CUTTER HOUSING ASM
(Superseded to 107-4065)

$168.99

$

Usually ships in 3-6 days

0

13:1

Toro 103-7975

HOUSING-SPINDLE

$68.99

$

In Stock, only 2 left!

0

13:2

Toro 103-2477

BEARING-JACKSHAFT

$64.99

$

In Stock, only 3 left!

0

13:3

Toro 103-2534

Spacer-Bearing

$9.49

$

In Stock, only 4 left!

0

13:4

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, only 1 left!

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 8

0

16

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

17

Toro 1-403183

SHEAVE

$74.99

$

In Stock, only 2 left!

0

18

Toro 1-803310

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

19

Toro 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, only 3 left!

0

20

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

21

Toro 1-323737

BELT-BLADE, DRIVE

$139.99

$

Usually ships in 3-6 days

0

22

Toro 103-1330

Guard-Bearing, Top

$5.99

$

In Stock, Qty 20+

0
