30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 28B702-1041-E1 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

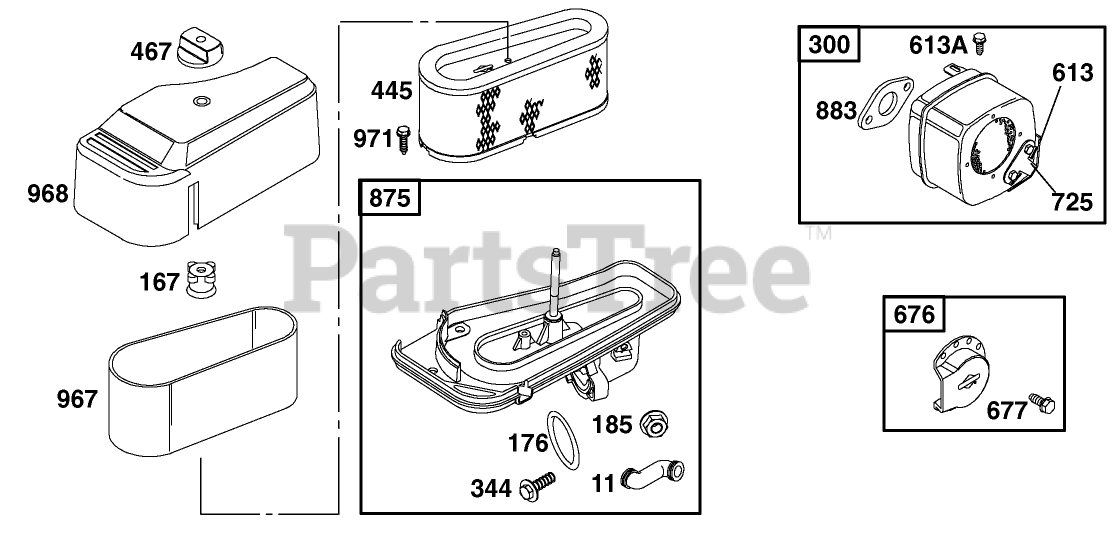

ENGINE BRIGGS & STRATTON MODEL 28B702-1041-E1 Parts Diagram

  • Title

1

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$4.99

$

In Stock, Qty 6

0

11

Briggs & Stratton 280100

Tube-Breather
(Superseded to 692253)

$10.99

$

In Stock, Qty 5

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$7.99

$

In Stock, only 3 left!

0

105

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$16.99

$

In Stock, Qty 13

0

127

Briggs & Stratton 694916

Welch Plug
(Superseded to 806460)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$11.99

$

In Stock, only 1 left!

0

130B

Briggs & Stratton 694917

Throttle Valve

$

$

Not available

137

Briggs & Stratton 694920

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$10.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 490666

Bushing-Sump

$

$

Not available

167

Briggs & Stratton 281051

Nut
(Superseded to 692297)

$11.99

$

In Stock, only 2 left!

0

176

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

185

Briggs & Stratton 94010

Nut
(Superseded to 690958)

$3.49

$

In Stock, Qty 8

0

300

Briggs & Stratton 491413

Muffler
(Superseded to 691874)

$57.99

$

Usually ships in 2-12 days

0

344

Briggs & Stratton 693675

Screw

$4.49

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 493910

Filter-Air
(Superseded to 691667)

$30.99

$

In Stock, Qty 5

0

467

Briggs & Stratton 493903

Knob
(Superseded to 691668)

$5.99

$

In Stock, Qty 20+

0

613

Briggs & Stratton 93927

Screw
(Superseded to 691416)

$12.99

$

In Stock, only 4 left!

0

613A

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$6.49

$

In Stock, Qty 20+

0

676

Briggs & Stratton 393761

Deflector-Muffler
(Superseded to 795036)

$8.49

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

725

Briggs & Stratton 690420

Heat Shield

$

$

Not available

875

Briggs & Stratton 693670

Air Cleaner Base (Use with Walbro Carburetor

$

$

Not available

Briggs & Stratton 694942

Air Cleaner Base (Use with Nikki Carburetor)
(Superseded to 696129)

$

$

Not available

967

Briggs & Stratton 272477

Filter-Air
(Superseded to 272477S)

$4.49

$

In Stock, only 2 left!

0

968

Briggs & Stratton 691324

Cover-Cleaner, Air

$61.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 692126

Screw (Air Cleaner Base)
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0
