30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 28B702-1041-E1 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

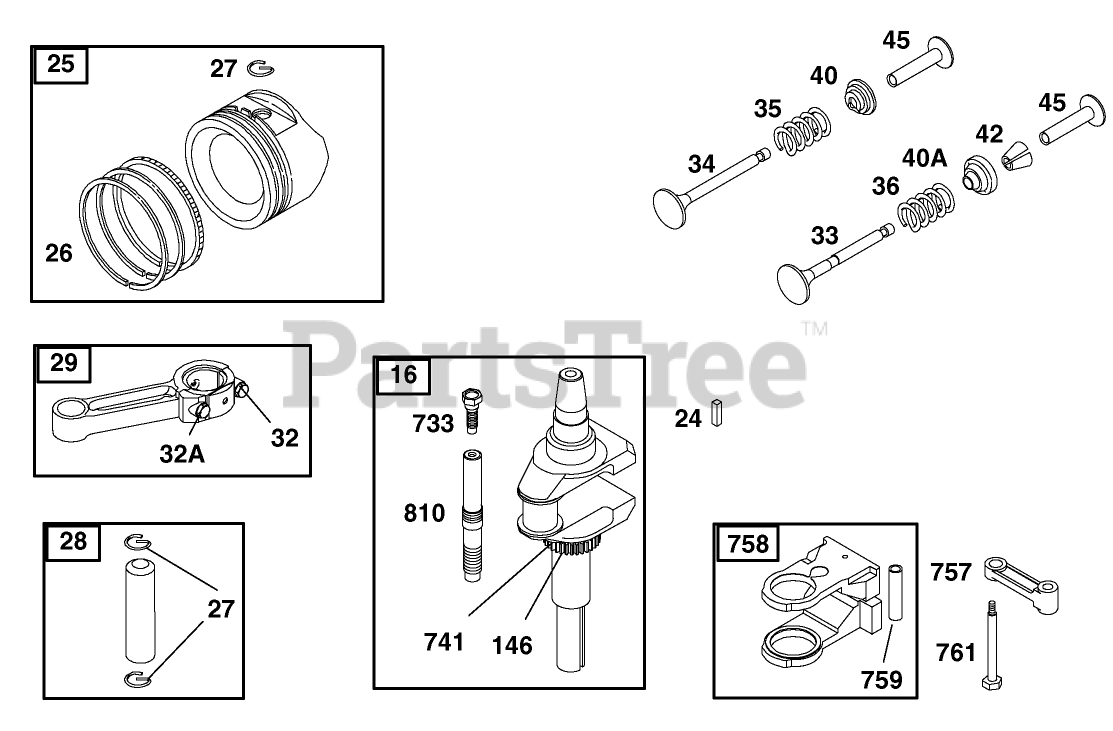

ENGINE BRIGGS & STRATTON MODEL 28B702-1041-E1 Parts Diagram

  • Title

1

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$4.99

$

In Stock, Qty 11

0

16

Briggs & Stratton 693944

Crankshaft

$246.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 490666

Bushing-Sump

$40.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499282

Piston Assy. (Std.)
(Superseded to 499284)

$84.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 394662

Piston Assy-.010" O.S.

$

$

Not available

Briggs & Stratton 394663

Piston Assy-.020" O.S.
(Superseded to 499292)

$

$

Not available

Briggs & Stratton 394664

Piston Assy-.030" O.S.
(Superseded to 499296)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391780

Ring Set (Std.)
(Superseded to 499996)

$53.99

$

In Stock, only 2 left!

0

Briggs & Stratton 392331

Chrome Ring Set (Std.

$37.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391781

Ring Set (.010 O.S.)

$

$

Not available

Briggs & Stratton 391782

Ring Set (.020 O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499999

Ring Set (.030 O.S.)

$27.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691299

Lock-Piston Pin

$4.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 498319

Pin-Piston (Std.)

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 498320

Pin-Piston (.005 O.S.)

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 494504

Rod-Connecting
(Superseded to 494504S)

$112.99

$

In Stock, Qty 5

0

Briggs & Stratton 495490

Rod-Conn. (.020" U.S.)

$30.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 691133

Screw (Connecting Rod 1 7/8")

$5.49

$

Usually ships in 2-12 days

0

32A

Briggs & Stratton 690348

Screw (Connecting Rod 5/8")
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 262246

Valve-Exhaust
(Superseded to 262246S)

$27.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 262247

Valve-Intake
(Superseded to 262247S)

$30.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

40A

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 494553

Keeper-Valve

$7.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 262248

Tappet
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$15.99

$

In Stock, Qty 16

0

127

Briggs & Stratton 694916

Welch Plug
(Superseded to 806460)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$10.99

$

In Stock, only 1 left!

0

130B

Briggs & Stratton 694917

Throttle Valve

$10.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 694920

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$9.99

$

In Stock, only 4 left!

0

146

Briggs & Stratton 94196

Key-Timing
(Superseded to 691639)

$4.49

$

In Stock, only 3 left!

0

733

Briggs & Stratton 94673

Screw-Hex.Head
(Superseded to 698139)

$5.99

$

In Stock, Qty 5

0

741

Briggs & Stratton 691284

Gear-Timing

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 213998

Link-Counteweight
(Superseded to 691714)

$26.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 399891

Counterweight
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 691239

Counterweight Pin

$8.99

$

In Stock, only 1 left!

0

761

Briggs & Stratton 691096

Screw (Counterweight)

$5.49

$

Usually ships in 2-12 days

0

810

Briggs & Stratton 231828

Crankshaft Extension
(Superseded to 691779)

$47.99

$

Usually ships in 2-12 days

0
