30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 28B702-1041-E1 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

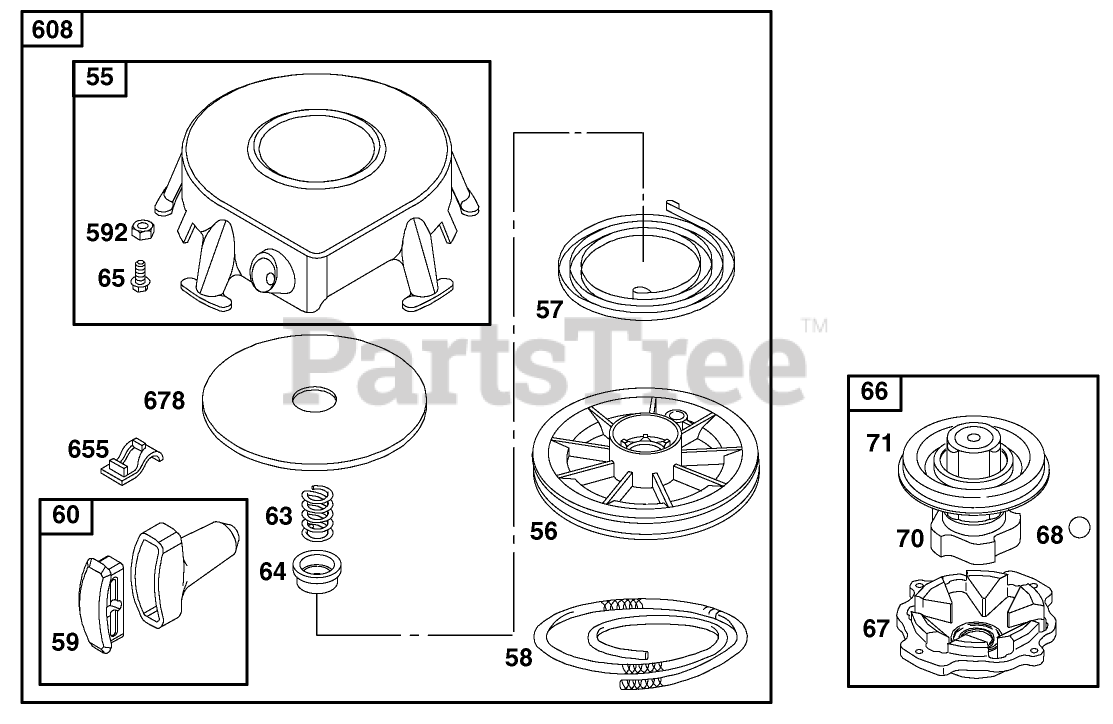

ENGINE BRIGGS & STRATTON MODEL 28B702-1041-E1 Parts Diagram

  • Title

19

Briggs & Stratton 490666

Bushing-Sump

$40.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$4.99

$

In Stock, Qty 11

0

55

Briggs & Stratton 393576

Housing Rewind Starter (Includes 63" Rope)

$85.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, only 2 left!

0

57

Briggs & Stratton 490179

Spring-Rewind

$14.99

$

In Stock, Qty 10

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 2 left!

0

59

Briggs & Stratton 490653

Grip Insert
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

60

Briggs & Stratton 490652

Grip-Starter Rope

$5.49

$

In Stock, Qty 8

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, only 4 left!

0

64

Briggs & Stratton 281204

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 690837

Screw

$3.49

$

In Stock, Qty 18

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 12

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 691359

Ratchet Cover

$9.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$15.99

$

In Stock, Qty 16

0

127

Briggs & Stratton 694916

Welch Plug
(Superseded to 806460)

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$10.99

$

In Stock, only 1 left!

0

130B

Briggs & Stratton 694917

Throttle Valve

$10.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 694920

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$9.99

$

In Stock, only 4 left!

0

592

Briggs & Stratton 690800

Nut

$3.99

$

In Stock, only 3 left!

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, only 1 left!

0

678

Briggs & Stratton 490817

Spacer

$9.49

$

In Stock, only 2 left!

0
