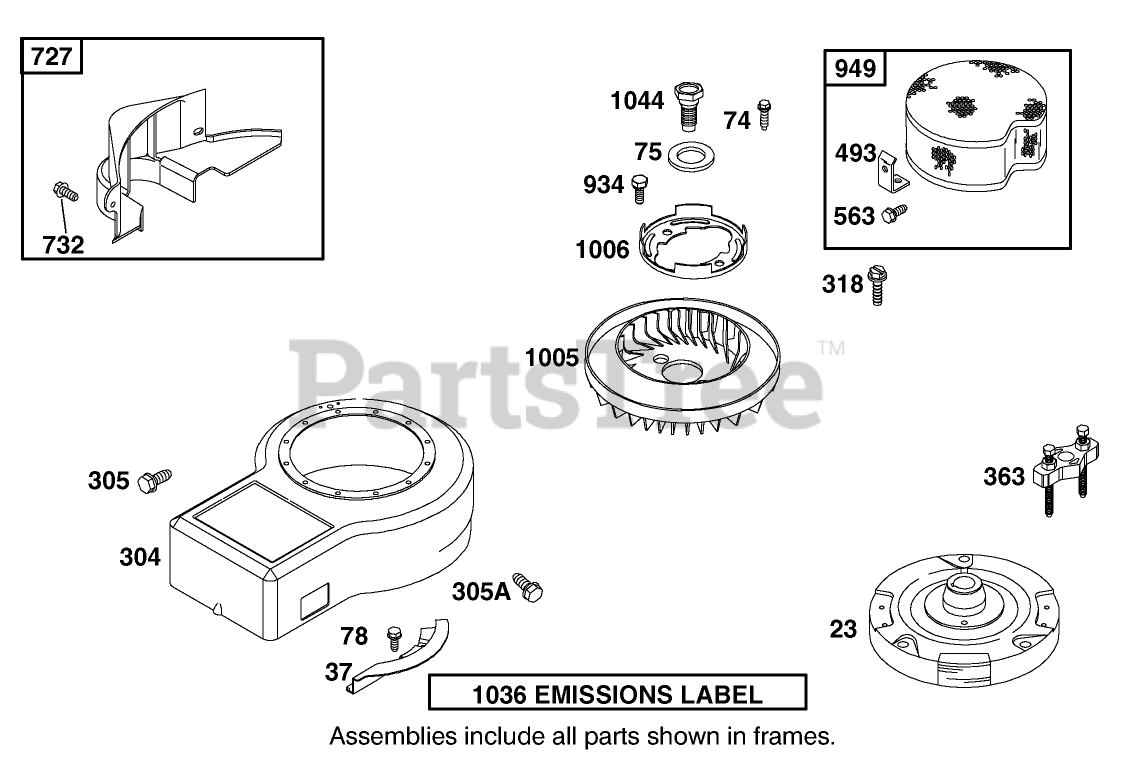

30164 - Toro 32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp (SN: 220000001 - 220999999) (2002) BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28B702-1041-E1 Parts Diagram

32" ProLine Walk-Behind Mower, Gear Drive, 10.5hp

BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 28B702-1041-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693555

Flywheel
(Superseded to 595093)

$269.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 690456

Flywheel Guard

$7.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93758

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 225136

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

78

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 690846

Blower Housing

$108.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

305A

Briggs & Stratton 692127

Screw (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

318

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

493

Briggs & Stratton 690426

Mounting Bracket
(Superseded to 692825)

$14.99

$

Usually ships in 2-12 days

0

563

Briggs & Stratton 94902

Screw-Air Cleaner
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

727

Briggs & Stratton 490324

Cover-Starter

$26.99

$

In Stock, only 1 left!

0

732

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

934

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

1005

Briggs & Stratton 280687

Retainer
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 694325

Emissions Label

$4.49

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 94673

Screw-Hex.Head
(Superseded to 698139)

$5.99

$

In Stock, only 4 left!

0
