30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Air-Filter Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

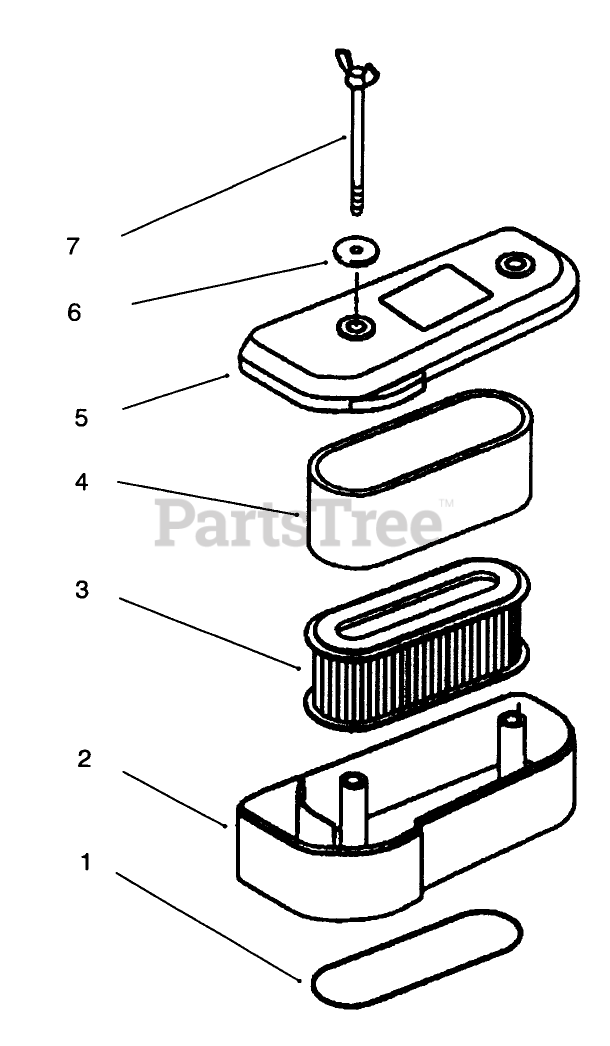

Air-Filter Parts Diagram

  • Title

1

Toro 11009-2443

Gasket

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

2

Toro 11011-2174

CASE-Air Filter

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

3

Toro 11013-2021

Element

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

4

Toro 11013-2020

Element

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

5

Toro 11012-2192

CAP-Air Filter

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

6

Toro 92022-2220

Washer

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

7

Toro 92002-2230

Bolt

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

Toro 11010-2291

Air Filter Assy (includes items 32, 33, 34 35)

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

Toro 11010-2291

Air Filter Assy (includes items 32, 33, 34 35)

Note: Not illustrated

$

$

Currently unavailable
