30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Crankcase Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

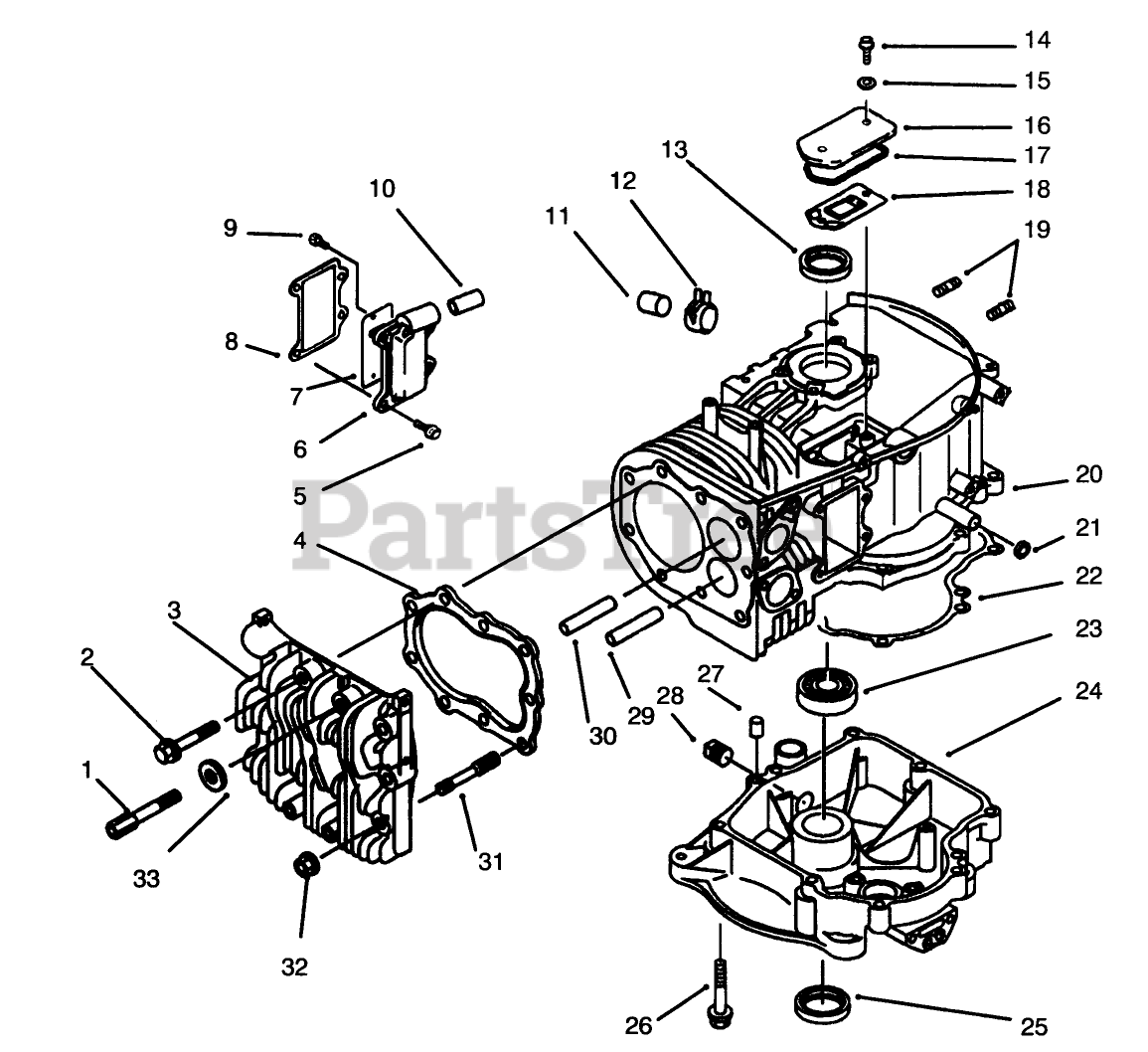

Crankcase Parts Diagram

  • Title

1

Toro 92002-2258

Bolt

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

2

Toro 130G1055

Bolt

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

3

Toro 11001-2151

Head-Cylinder

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

4

Toro 11004-2091

Gasket-Head

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

5

Toro 130G0616

Bolt-Flanged (6X16)

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

6

Toro 49108-2011

Cover-Valve Chamber

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

7

Toro 14025-2143

Cover

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

8

Toro 11060-2059

Gasket

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

9

Toro 92009-2307

Screw

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

10

Toro 92059-2142

Tube

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

11

Toro 92066-2096

Plug

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

12

Toro 92170-2043

Clamp

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

13

Toro 92049-2096

Oil Seal

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

14

Toro 92002-2087

Bolt

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

15

Toro 11060-2323

Gasket

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

16

Toro 14025-2040

Cover

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

17

Toro 11009-2339

Gasket

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

18

Toro 14069-2062

Breather

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

19

Toro 92004-2083

Stud

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

20

Toro 49120-6108

Crankcase-Complete (Incl. Ref. #29, 30)

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

21

Toro 92049-2097

SEAL-OIL (VC6X10X2.6)

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

22

Toro 11060-2015

Gasket-Crankcase

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

23

Toro 601A6207

Ball Bearing

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

24

Toro 49015-6176

Cover-Crankcase

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

25

Toro 92049-2104

Oil Seal

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

26

Toro 130G0845

Bolt-Flanged (8X45)

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

27

Toro 92043-1263

Pin

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

28

Toro 92066-2097

Plug

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

29

Toro 49002-2071

Guide-Exhaust Valve

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

30

Toro 49002-2070

Guide-Intake Valve

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

31

Toro 92004-2082

Stud

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

32

Toro 92015-2115

Nut

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

33

Toro 410B1000

Washer

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable
