30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

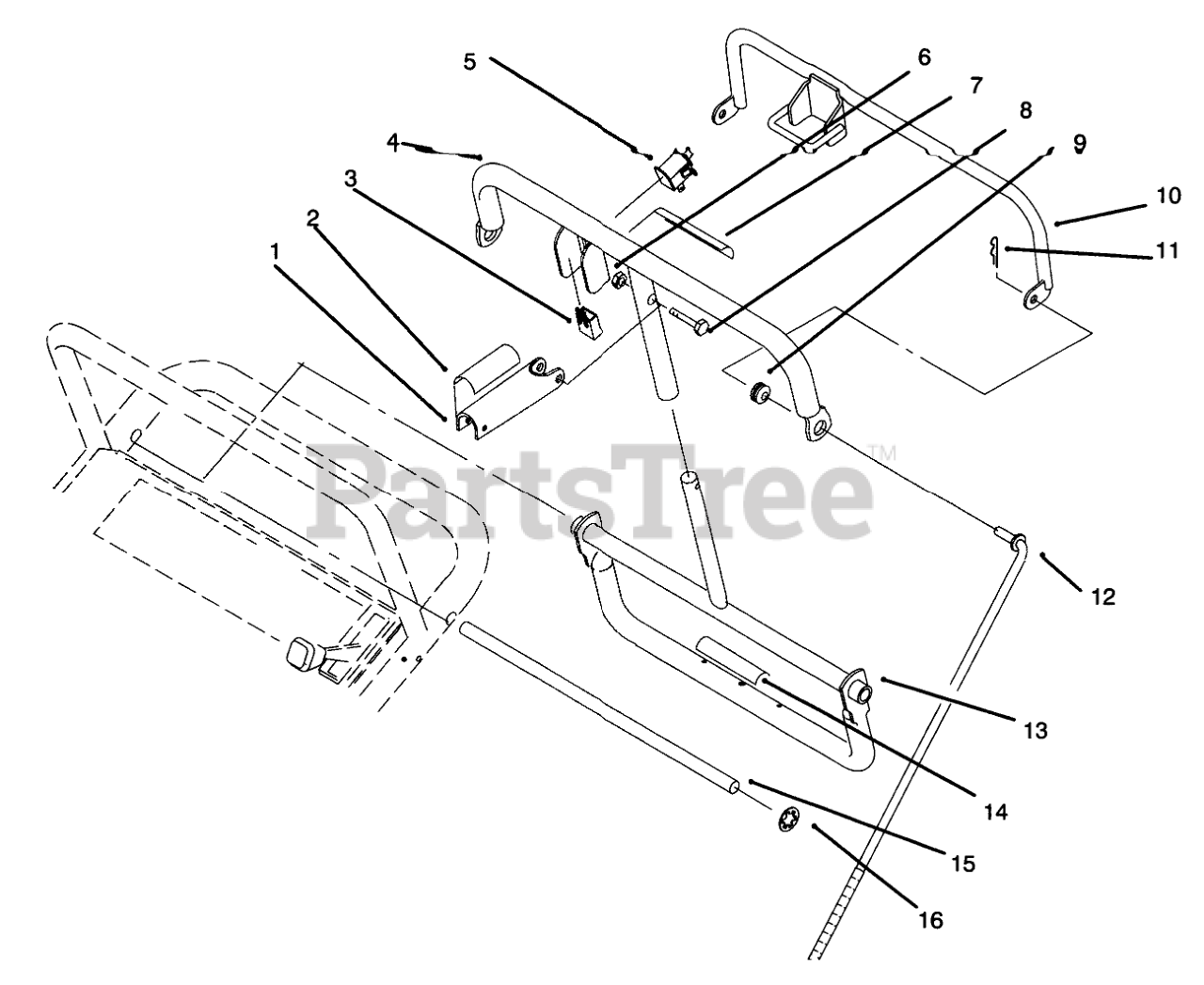

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$41.99

$

In Stock, only 1 left!

0

2

Toro 93-7442

DECAL-LEVER, PARKING

$25.99

$

Usually ships in 3-6 days

0

3

Toro 218-595

CONNECTOR-BODY

$

$

Not available

4

Toro 93-7298

DECAL-BAR, CONTROL

$41.99

$

In Stock, only 1 left!

0

5

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 82-2290

DECAL

$13.99

$

Usually ships in 3-6 days

0

8

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 7

0

9

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

10

Toro 82-7680

Bail
(Superseded to 82-7680-03)

$161.99

$

Usually ships in 3-6 days

0

11

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

12

Toro 82-7631

ROD-CONTROL

$76.99

$

Usually ships in 3-6 days

0

13

Toro 74-0380

Control Pivot
(Superseded to 74-0380-03)

$

$

Not available

14

Toro 93-7299

DECAL-REVERSE

$36.99

$

Usually ships in 3-6 days

0

15

Toro 74-0470

PIVOT ROD

$55.99

$

Usually ships in 3-6 days

0

16

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.99

$

In Stock, Qty 7

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
