30165 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Muffler Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

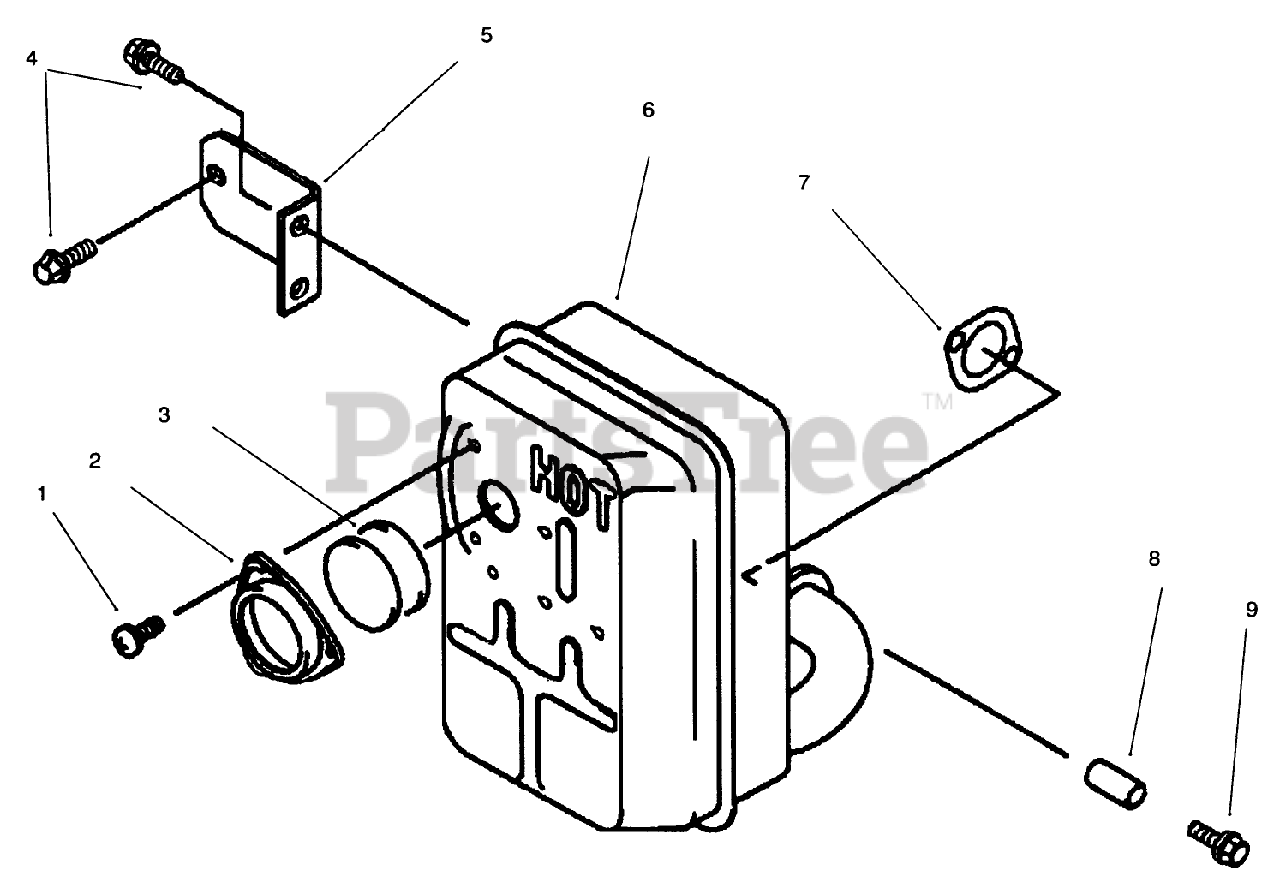

Muffler Parts Diagram

  • Title

1

Toro 92009-2166

Screw

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

2

Toro 11012-2165-9Y

Cap

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

3

Toro 18077-2052

Arrester-Spark

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

4

Toro 130G0812

Bolt-Flanged (8X12)

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

5

Toro 11044-2069-9Y

Bracket

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

6

Toro 49069-2190-9Y

Muffler Assembly (Incl. Ref.# 4,5 6)

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

7

Toro 11009-2527

Gasket-Muffler

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

8

Toro 92027-2081

Collar

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable

9

Toro 130G0845

Bolt-Flanged (8X45)

Note: Kawasaki Model FB460V Type JS08 Order Parts from Kawasaki

$

$

Currently unavailable
