30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

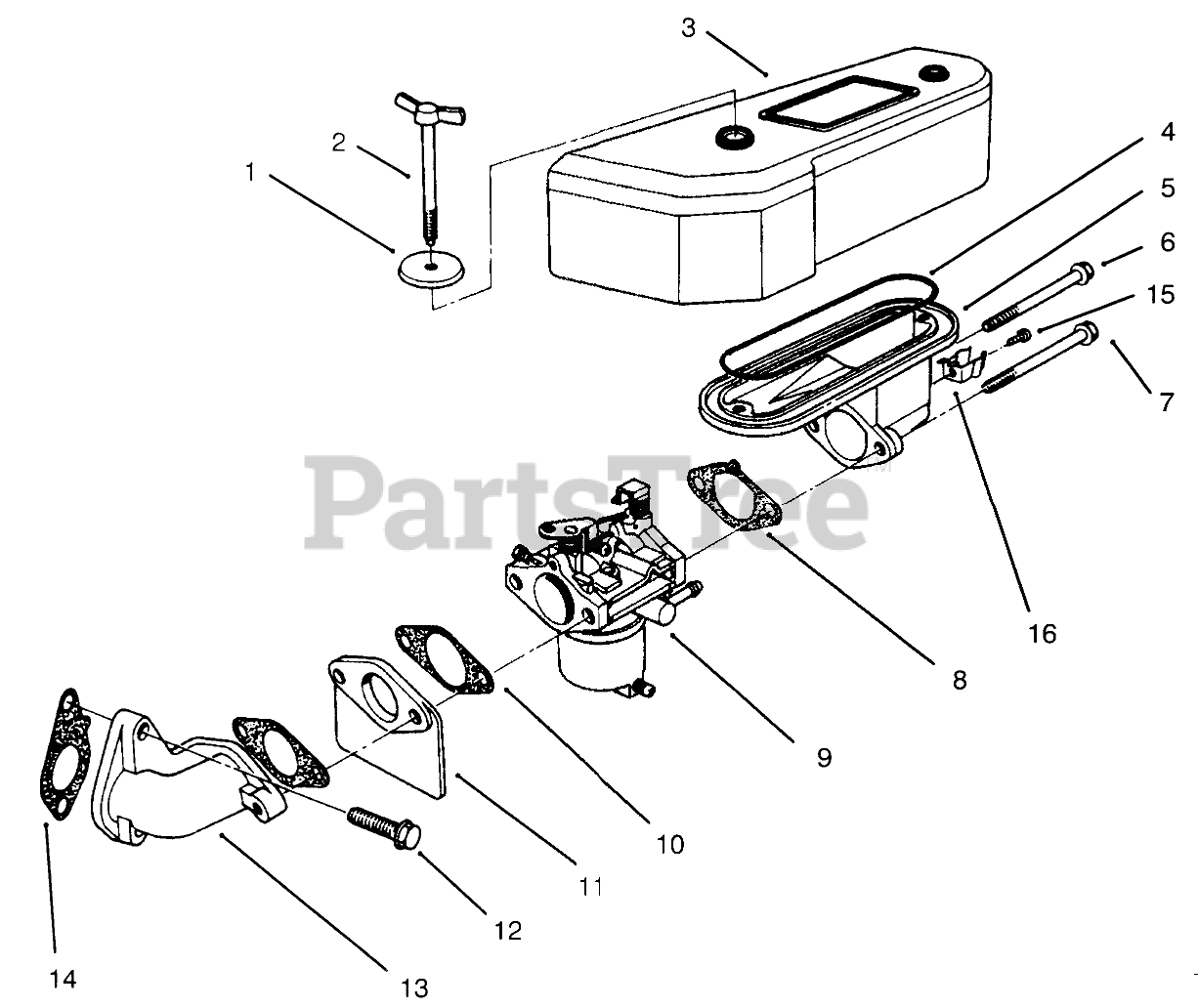

AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Kawasaki 92022-2220

Washer
(Superseded to 92200-0423)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

2

Kawasaki 92002-2230

Bolt

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$3.99

$

In Stock, only 2 left!

0

3

Toro 11010-2291

Filter ASM

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

4

Kawasaki 11009-2443

Gasket
(Superseded to 11009-2340)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$2.99

$

In Stock, only 1 left!

0

5

Kawasaki 16060-2108

Pipe-Intake

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

6

Kawasaki 92002-2254

Bolt

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$1.99

$

In Stock, only 2 left!

0

7

Toro 92002-2253

Bolt

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

8

Kawasaki 11009-2344

Gasket
(Superseded to 11060-2338)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$0.99

$

In Stock, Qty 5

0

9

Toro 15001-2721

Carburetor ASM

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

10

Kawasaki 11009-2343

Gasket
(Superseded to 11060-2339)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$1.49

$

In Stock, Qty 15

0

11

Kawasaki 16073-2091

Insulator

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

12

Toro 130G0825

Bolt-Flanged (8X25)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

13

Kawasaki 16060-2109

Pipe-Intake
(Superseded to M88502)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

14

Kawasaki 11009-2342

Gasket
(Superseded to 11060-2337)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

15

Kawasaki 224B0508

Screw
(Superseded to 224AA0508)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$0.99

$

In Stock, only 4 left!

0

16

Toro 92037-2019

Clamp

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable
