30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Carburetor Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

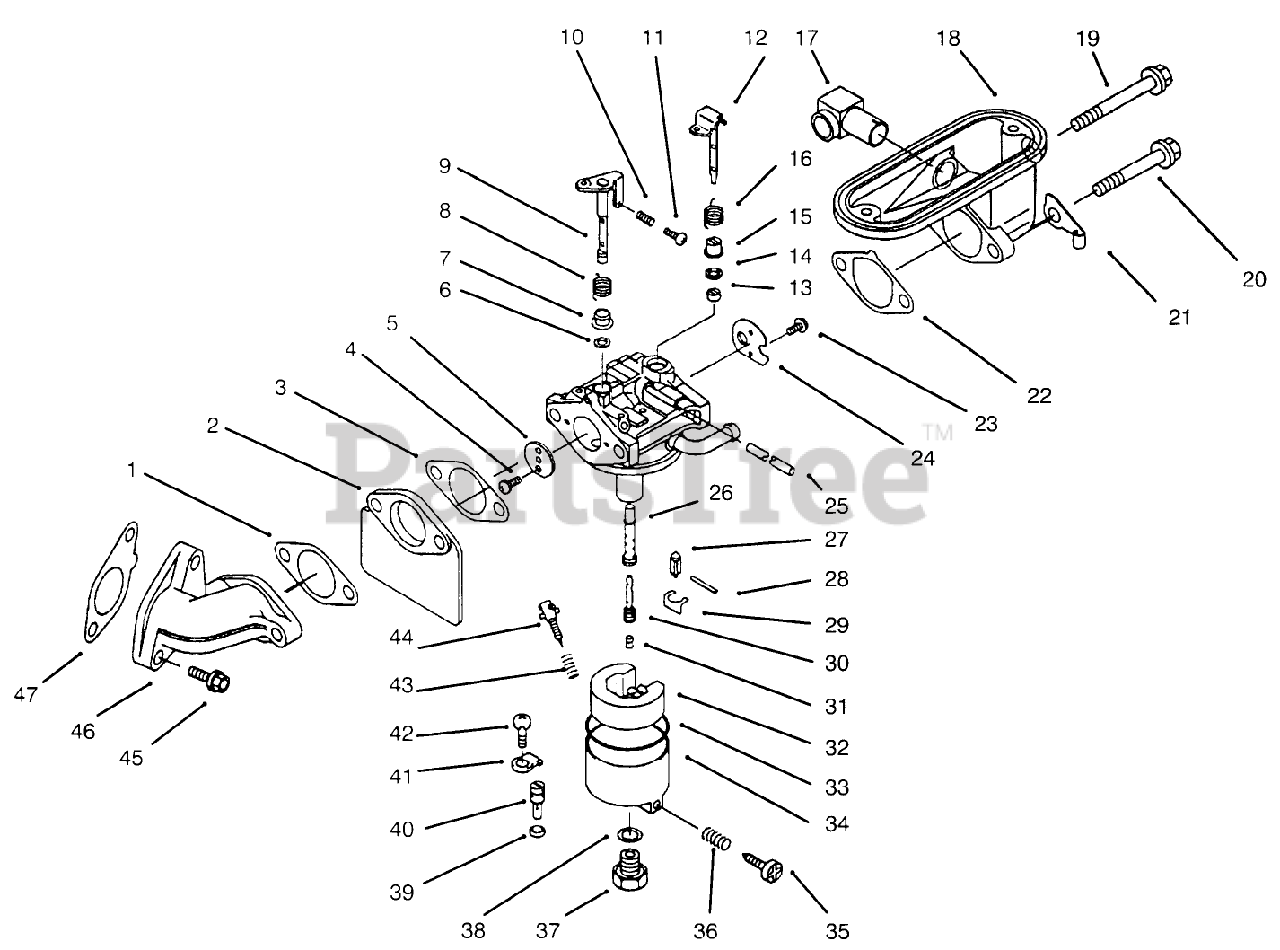

Carburetor Parts Diagram

  • Title

1

Toro 11060-2338

Gasket

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

2

Toro 16073-2091

Insulator

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

3

Toro 11060-2339

Gasket-Carburetor

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

4

Toro 92009-2080

Screw

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

5

Toro 16025-2114

Valve-Throttle

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

6

Toro 92093-2002

Seal

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

7

Toro 92027-2025

Collar

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

8

Toro 92081-2077

Spring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

9

Toro 16041-2009

Shaft-Throttle

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

10

Toro 92081-2046

Spring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

11

Toro 92009-2079

Screw

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

12

Toro 16041-2010

Shaft-Choke

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

13

Toro 92027-2003

Collar

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

14

Toro 92093-2069

Seal

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

15

Toro 92143-2142

Ring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

16

Toro 92144-2160

Spring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

17

Toro 59071-2062

Joint

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

18

Toro 16060-2108

Pipe-Intake

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

19

Toro 92002-2254

Bolt

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

20

Toro 92002-2253

Bolt

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

21

Toro 92170-2019

Clamp

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

22

Toro 11009-2025

Gasket

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

23

Toro 92009-2081

Screw

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

24

Toro 16126-2105

Valve-Choke

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

25

Toro 92059-2266

Tube

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

26

Toro 49121-2077

Nozzle

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

27

Toro 16030-2073

Valve-Float

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

28

Toro 92043-2006

Pin

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

29

Toro 92033-2067

Ring-Snap

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

30

Toro 49123-2058

Pipe-Bleed

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

31

Toro 92063-2010

Jet

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

32

Toro 16031-2066

Float

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

33

Toro 11009-2024

Gasket

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

34

Toro 16020-2094

Chamber-Float (Incl. Ref. #26 27)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

35

Toro 92009-2015

Screw

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

36

Toro 92081-2009

Spring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

37

Toro 92002-2009

Bolt

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

38

Toro 11009A-2025

Gasket

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

39

Toro 16038-024

Gasket

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

40

Toro 92064-2062

Jet

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

41

Toro 13183-2252

Plate

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

42

Toro 92009-2244

Screw

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

43

Toro 92081-2008

Spring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

44

Toro 16014-2055

Screw

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

45

Toro 130G0825

Bolt-Flanged (8X25)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

46

Toro 16060-2109

Pipe-Intake

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

47

Toro 11060-2337

Gasket-Intake Pipe

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 15003-2183

Carburetor-Assembly (Incl. Ref. # 1-16 22-44)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable
