30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Governor Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

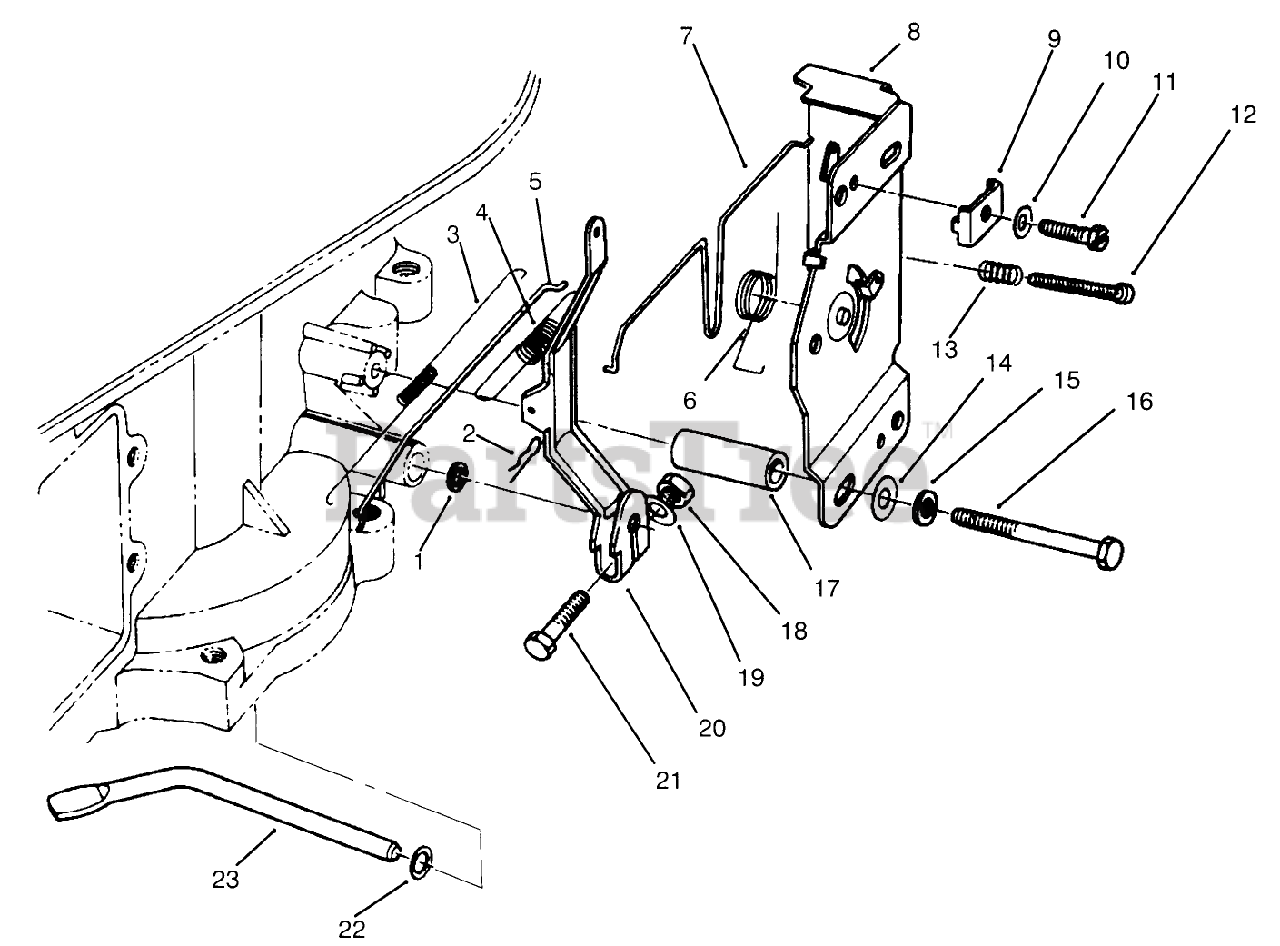

Governor Assembly Parts Diagram

  • Title

1

Toro 92049-2097

SEAL-OIL (VC6X10X2.6)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

2

Toro 554A0600

Pin-Snap (1.2 X 21.2)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

3

Toro 92081-2213

Spring

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

4

Toro 39129-2010

Spring

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

5

Toro 16171-2001

Link

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

6

Toro 920981-2316

Spring

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

7

Toro 16169-2074

LINK-Choke

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

8

Toro 49113-2067

Panel Incl #2 4-7

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

9

Toro 92037-2020

Clamp

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

10

Toro 411B0500

Washer

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

11

Toro 310701-1225A

Bolt

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

12

Toro 214b0425

Screw

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

13

Toro 314401-5321B

Spring

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

14

Toro 311509-3595-00

Washer

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

15

Toro 461F0600

Washer

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

16

Toro 112B0650

Bolt

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

17

Toro 92027-2071

Collar

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

18

Toro 311B0600

NUT-HEX (6mm)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

19

Toro 411B0600

Washer-Plain (6mm)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

20

Toro 21187-2052

Arm ASM

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

21

Toro 92002-2269

Bolt (6X28)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

22

Toro 410B0600

Washer

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

23

Toro 39003-2062

Arm-Pivot

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable
