30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) MUFFLER ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

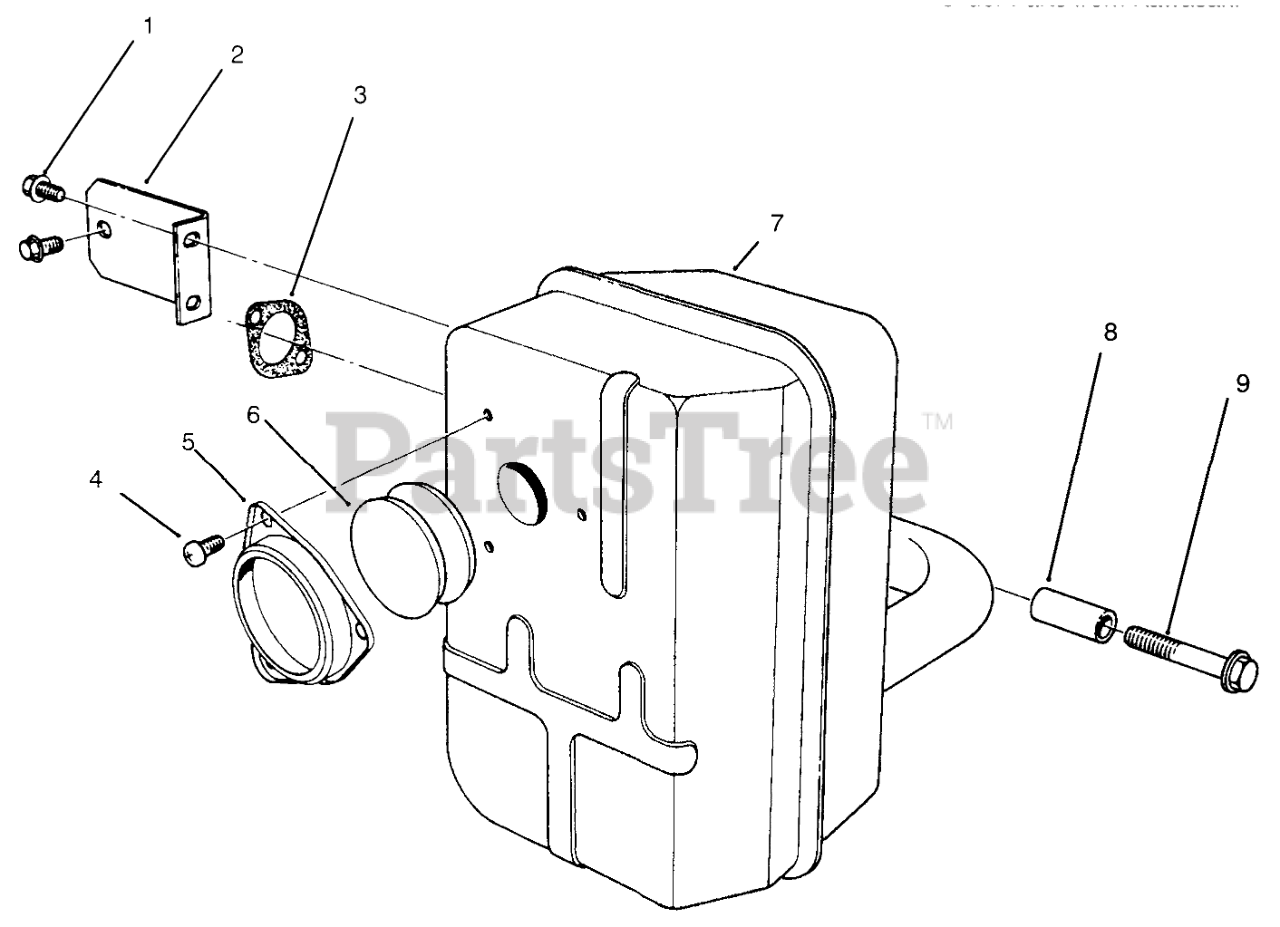

MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 130G0812

Bolt-Flanged (8X12)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

2

Toro 11044-2069-9Y

Bracket

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

3

Toro 11009-2378

Gasket

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

4

Kawasaki 92009-2166

Screw

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$0.99

$

Usually ships in 2-5 days

0

5

Kawasaki 11012-2165-9Y

Cap
(Superseded to 11012-2251-9Y)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

6

Kawasaki 18077-2052

Arrester-Spark

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

7

Kawasaki 49069-2190-9Y

Muffler ASM
(Superseded to 49069-2096-9Y)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

8

Kawasaki 92027-2081

Collar

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$2.49

$

In Stock, only 2 left!

0

9

Kawasaki 130G0845

Bolt-Flanged (8X45)
(Superseded to 130BA0845)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$1.99

$

In Stock, Qty 13

0
