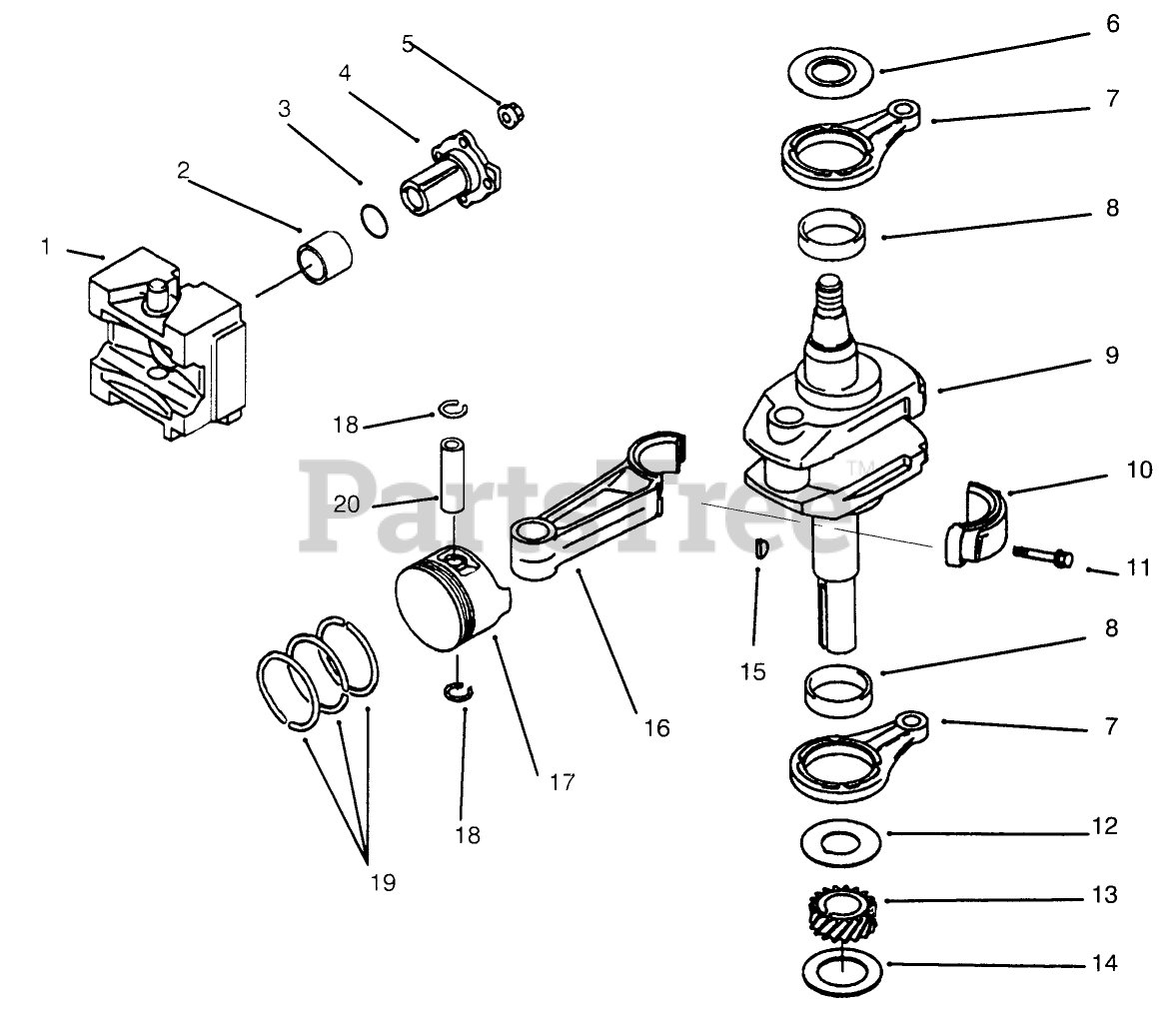

30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Piston/crankshaft Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

Piston/crankshaft Parts Diagram

  • Title

1

Toro 13042-6006

Weight Complete (includes item 133)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

2

Toro 92141-2097

Bushing

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

3

Toro 92055-2072

O-Ring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

4

Toro 13107-2253

Shaft

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

5

Toro 92015-1193

Nut

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

6

Toro 92026-2164

Spacer

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

7

Toro 46102-6007

Rod Incl #8

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

8

Toro 92141-2108

Bearing

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

9

Toro 49119-2177

CrankshaftASM

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

10

Cap-Rod

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Not available

11

Toro 92150-2193

Bolt

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

12

Toro 92026-2156

Spacer

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

13

Toro 59056-2105

Gear

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

14

Toro 92025-2145

Shim (1.18)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92025-2146

Shim (1.25)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92025-2147

Shim (1.32)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92025-2148

Shim (1.39)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92025-2149

Shim (1.46)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92025-2150

Shim (1.53)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92025-2151

Shim (1.60)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92025-2152

Shim (1.67)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92025-2153

Shim (1.74)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92180-2015

Shim T=1.11

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 92180-2016

Shim T=1.81

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

15

Toro 92038-2094

Key

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

16

Toro 13251-6005

Connecting Rod Ass-y-Standard (includes item 44)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 13251-6007

Connecting Rod Ass-y-.025mm Under Size (includes item 44)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

17

Toro 13001-2084

Piston

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 13029-2019

Piston 0.25

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 13029-2020

Piston 0.50

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

18

Toro 92033-2066

Ring-Snap

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

19

Toro 13008-6001

Piston Ring Set

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 13008-6002

Set-Ring Piston 0.25

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

Toro 13008-6003

Set-Ring Piston 0.50

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

20

Toro 13002-2066

Pin-Piston

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable
