30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) RECOIL & FLYWHEEL ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

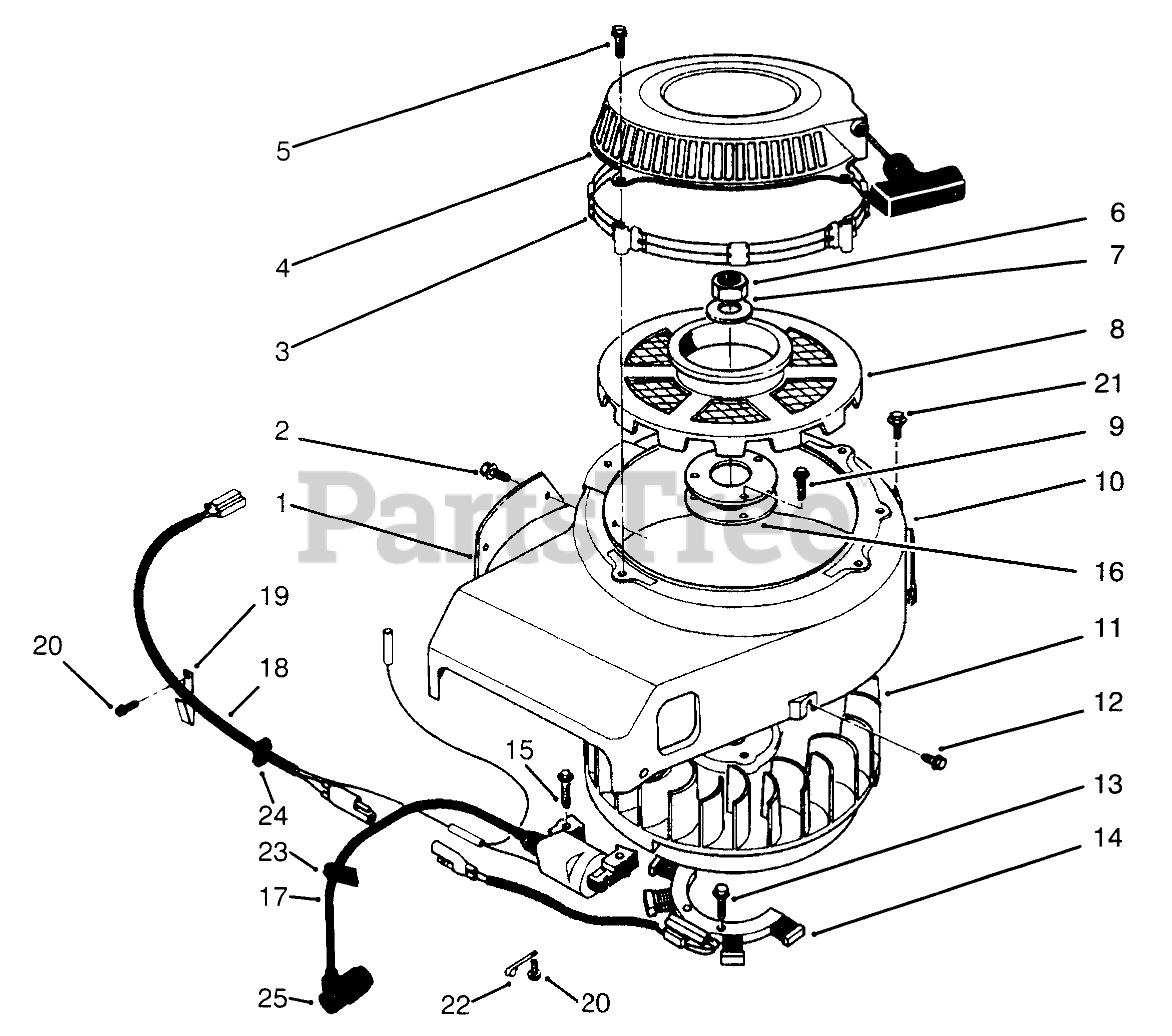

RECOIL & FLYWHEEL ASSEMBLY Parts Diagram

  • Title

1

Kawasaki 14024-2038-9H

Cover
(Superseded to 14024-2038-9B)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

2

Toro 234b0408

Screw

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

3

Toro 55020-2054

Guard

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

4

Kawasaki 49088-2212-YK

Recoil Starter ASM

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$175.99

$

In Stock, only 4 left!

0

5

Kawasaki 130B0635

Bolt-Flanged (6X35)
(Superseded to 130AA0635)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$1.99

$

In Stock, Qty 16

0

6

Kawasaki 314G1800

Nut

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$2.49

$

In Stock, only 2 left!

0

7

Kawasaki 92022-2178

Washer

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$2.99

$

Usually ships in 2-5 days

0

8

Toro 49080-22123YK

Pulley

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

9

Toro 130G0812

Bolt-Flanged (8X12)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

10

Toro 59066-2310-9H

Housing-Fan

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

11

Toro 21194-2001

Flywheel

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

12

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$0.99

$

In Stock, Qty 14

0

13

Toro 244B0620

Screw

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

14

Toro 59031-2065

Coil

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

15

Kawasaki 130B0525

Bolt
(Superseded to 130AA0525)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$0.99

$

In Stock, only 2 left!

0

16

Kawasaki 92025-2161

Shim

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$2.49

$

Usually ships in 2-5 days

0

17

Kawasaki 21121-2008

Coil
(Superseded to AM101065)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$105.99

$

In Stock, only 3 left!

0

18

Kawasaki 26001-2113

Harness

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

19

Kawasaki 313646-8161-00

Clamp
(Superseded to 92037-2063)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$0.99

$

Usually ships in 2-5 days

0

20

Toro 130G0610

Bolt-Flanged (6X10)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

21

Toro 130G0614

Bolt-Flanged (6X14)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

22

Toro 92037-2158

Clamp

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

23

Kawasaki 92071-2100

Grommet

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$1.99

$

In Stock, only 1 left!

0

24

Kawasaki 92071-2099

Grommet

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Not available

25

Kawasaki 21130-2060

Cap-Spark
(Superseded to M88905)

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$14.99

$

In Stock, only 1 left!

0

Toro 26011-2119

Lead Wire

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

Toro 26011-2119

Lead Wire

Note: Not illustrated

$

$

Currently unavailable
