30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Recoil Starter Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

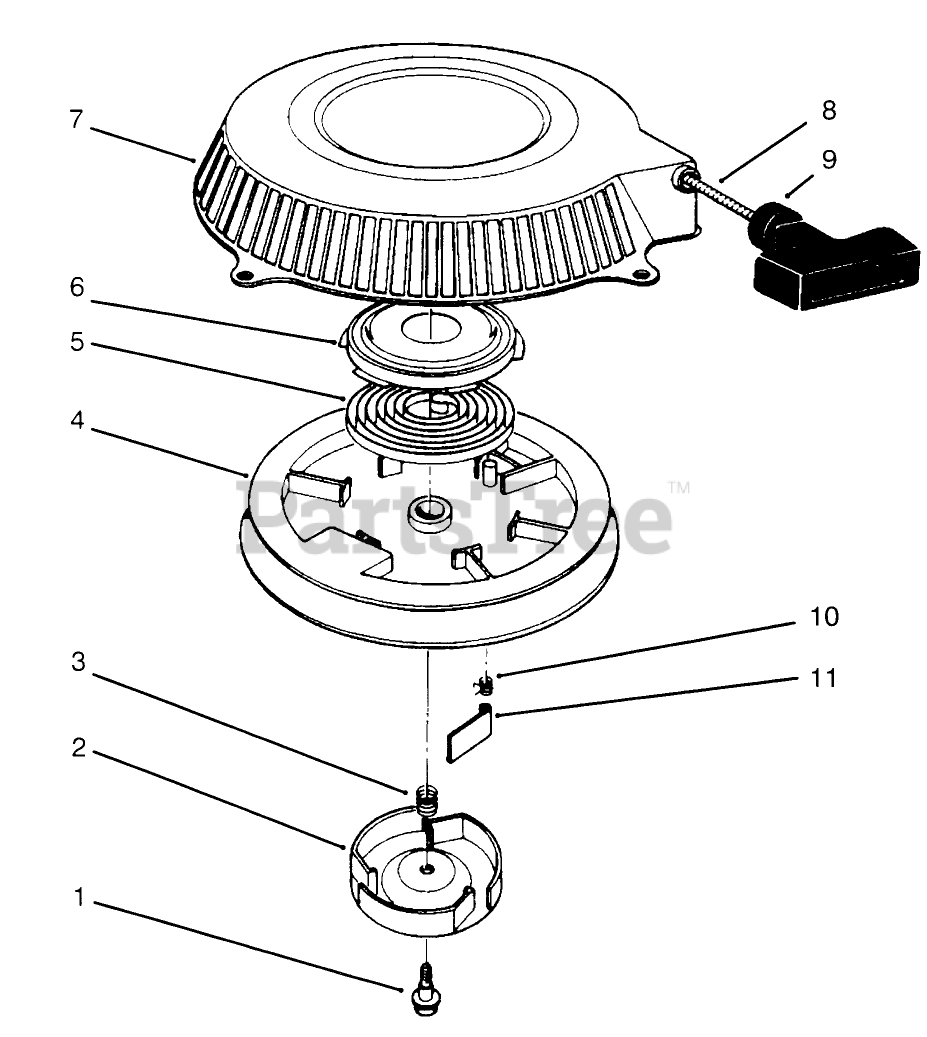

Recoil Starter Parts Diagram

  • Title

1

Toro 314501-3447A

Bolt

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

2

Toro 14020-2054

Retainer

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

3

Toro 92081-2268

Spring

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

4

Toro 59101-2054

Reel

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

5

Toro 92081-2267

Spring

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

6

Toro 32099-2060

Case

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

7

Toro 32099-2059YK

Case

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

8

Toro 59106-2060

Rope

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

9

Toro 46075-2059

Grip

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

10

Toro 314401-3444A

Spring-RETURN

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

11

Toro 13165-2057

Pawl

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

Toro 49088-2212-YK

Recoil Starter ASM

Note: Kawasaki Model FB460V Type DS08-Order Parts from Kawasaki-Used On Serial Nos. 590001-590900

$

$

Currently unavailable

Toro 49088-2212-YK

Recoil Starter ASM

Note: Not illustrated

$

$

Currently unavailable
