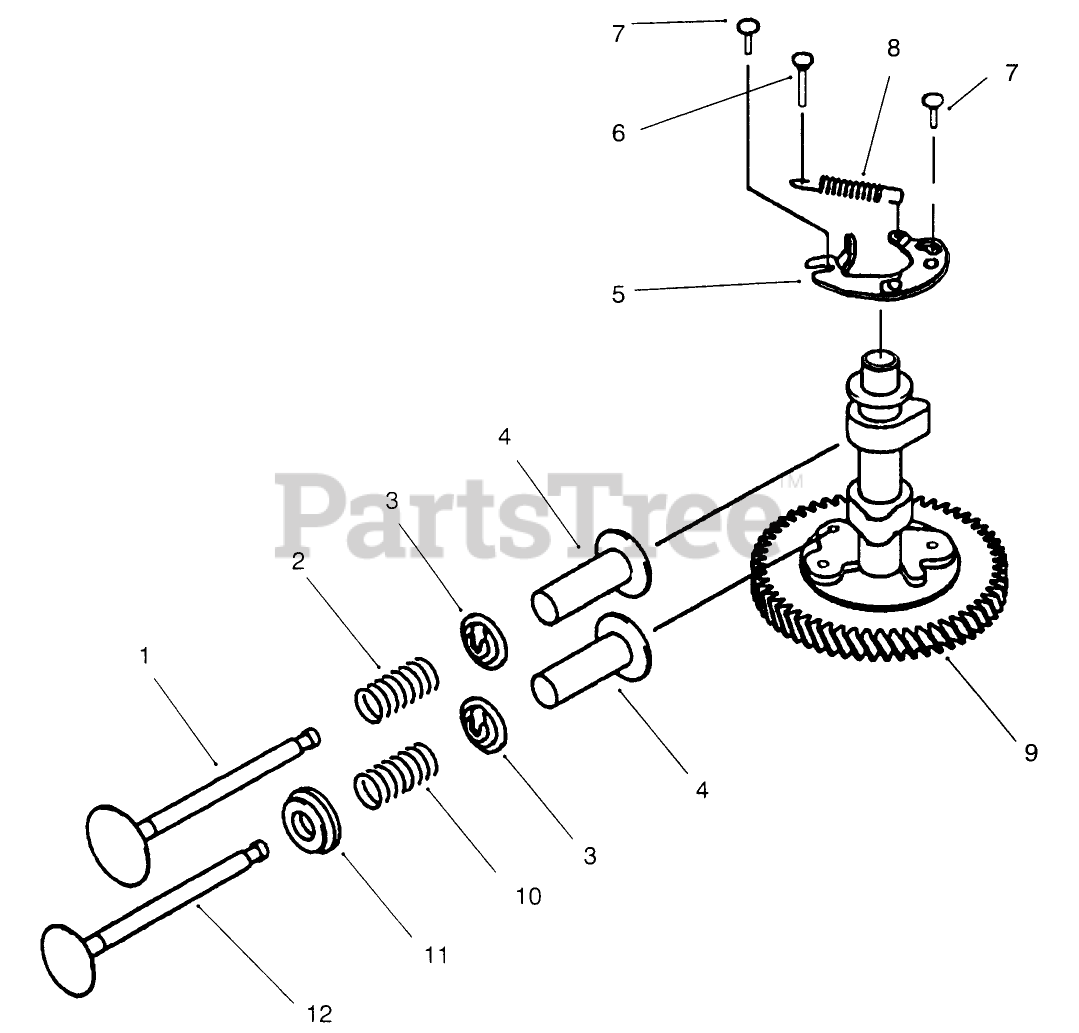

30166 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 059000001 - 059999999) (1995) Valve/camshaft Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

Valve/camshaft Parts Diagram

  • Title

1

Toro 12004-2076

Intake Valve

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

2

Toro 49078-2059

Spring-Valve

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

3

Toro 39108-2054

Retainer-Spring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

4

Toro 12032-2058

Tappet

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

5

Toro 21118-2068

Decompressor

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

6

Toro 92043-2167

Pin

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

7

Toro 92043-2113

Pin

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

8

Toro 92144-2171

Spring

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

9

Toro 49118-2134

Camshaft-Complete (Incl. Ref. #5-8)

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

10

Toro 49078-2058

Spring-Valve

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

11

Toro 12039-2052

Rotator

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable

12

Toro 12005-2066

Exhaust Valve

Note: Kawasaki Model FB460V Type JS08-Order Parts from Kawasaki-Used On Serial Nos. 590901 UP

$

$

Currently unavailable
