30168 - Toro ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 200000001 - 200999999) (2000) ENGINE & MUFFLER ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 15hp

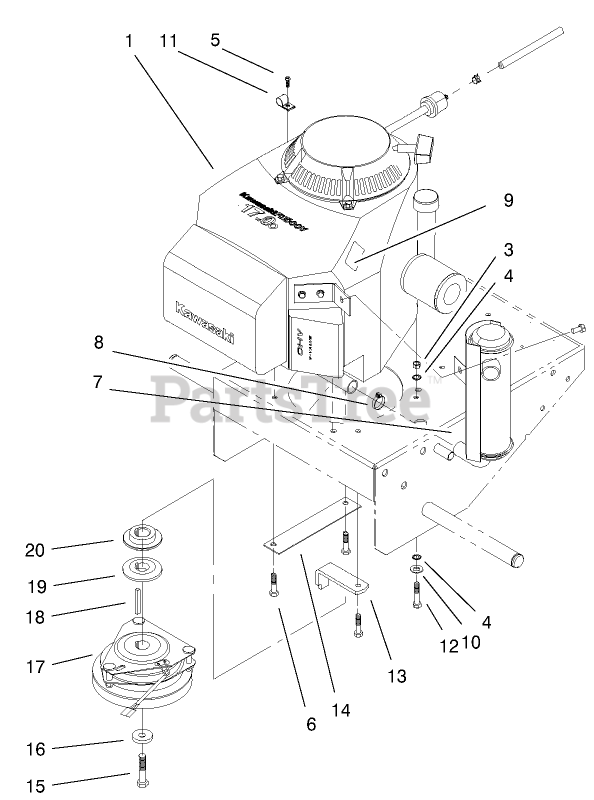

ENGINE & MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 100-6464

Engine-15 Kawasaki

$

$

Not available

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

4

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 100-6467

MUFFLER

$

$

Not available

8

Toro 100-6468

Clamp-Muffler

$0.99

$

Usually ships in 3-6 days

0

9

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

12

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

13

Toro 51-4540-03

RETAINER-CLUTCH

$19.99

$

Usually ships in 3-6 days

0

14

Toro 94-5847-01

COVER-PULLEY

$12.99

$

Usually ships in 3-6 days

0

15

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 1 left!

0

16

Toro 112843

WASHER

$3.49

$

In Stock, Qty 19

0

17

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

Usually ships in 3-6 days

0

18

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

19

Toro 74-0050

SHEAVE-LOWER HALF

$18.99

$

Usually ships in 3-6 days

0

20

Toro 74-0060

SHEAVE-UPPER HALF

$18.99

$

Usually ships in 3-6 days

0
