30169 - Toro ProLine Walk-Behind Mower, Gear Drive, 17hp (SN: 220000001 - 220999999) (2002) WHEEL AND BRAKE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 17hp

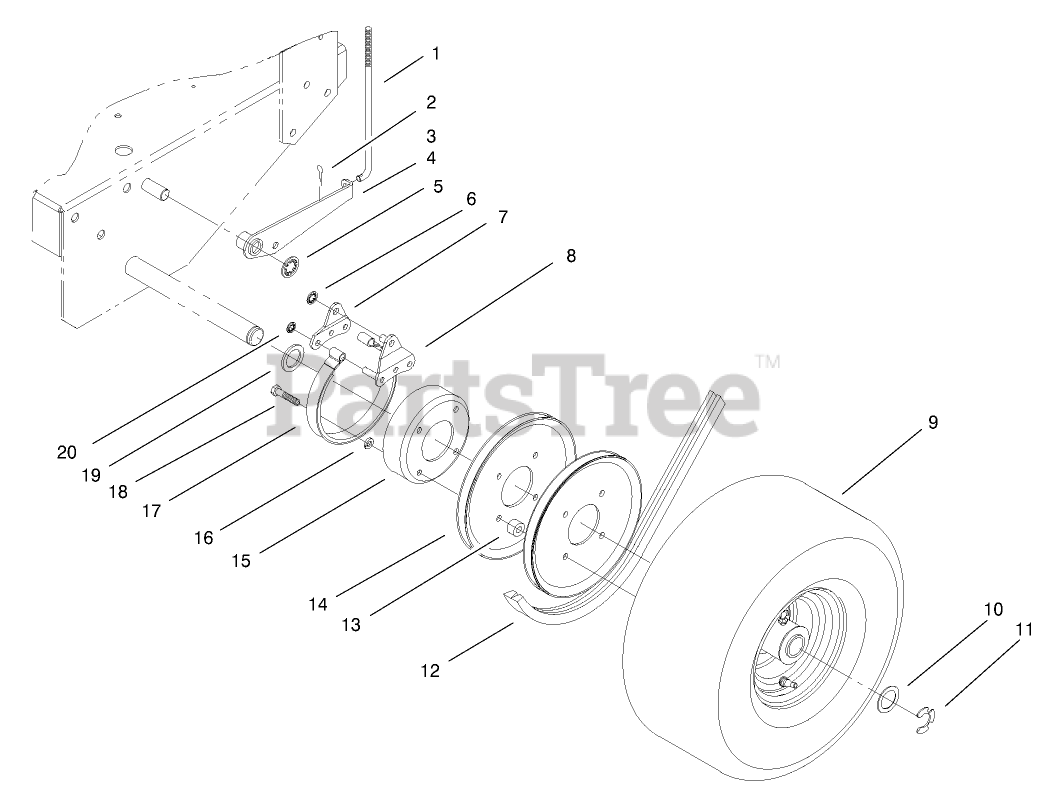

WHEEL AND BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 51-4580

ROD-BRAKE

$64.99

$

Usually ships in 3-6 days

0

2

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

3

Toro 51-4600-01

ARM-BRAKE, RH
(Superseded to 106-5537-01)

$149.99

$

Usually ships in 3-6 days

0

4

Toro 51-4610-01

ARM-BRAKE, LH
(Superseded to 106-5537-01)

$149.99

$

Usually ships in 3-6 days

0

5

Toro 32151-40

RING-RETAINING

$7.99

$

In Stock, only 3 left!

0

6

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

In Stock, only 2 left!

0

7

Toro 51-4660-01

PLATE-LINK, BRAKE

$40.99

$

Usually ships in 3-6 days

0

8

Toro 51-4650-01

LINK-BRAKE

$

$

Not available

9

Wheel/Tire Assembly

Note: Not serviced separately

$

$

Not available

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 14

0

11

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 6

0

12

Toro 51-4290

V-BELT

$100.99

$

In Stock, only 2 left!

0

13

Toro 51-4170

SPACER-PULLEY

$

$

Not available

14

Toro 51-4160-03

PULLEY-WHEEL

$71.99

$

Usually ships in 3-6 days

0

15

Toro 51-4180-03

DRUM-BRAKE

$81.99

$

Usually ships in 3-6 days

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

17

Toro 51-4700

BAND-BRAKE

$76.99

$

In Stock, Qty 9

0

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

19

Toro 51-4230

WASHER-WHEEL

$14.99

$

In Stock, only 1 left!

0

20

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0
