30170 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 010000001 - 019999999) (1991) Engine Clutch Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

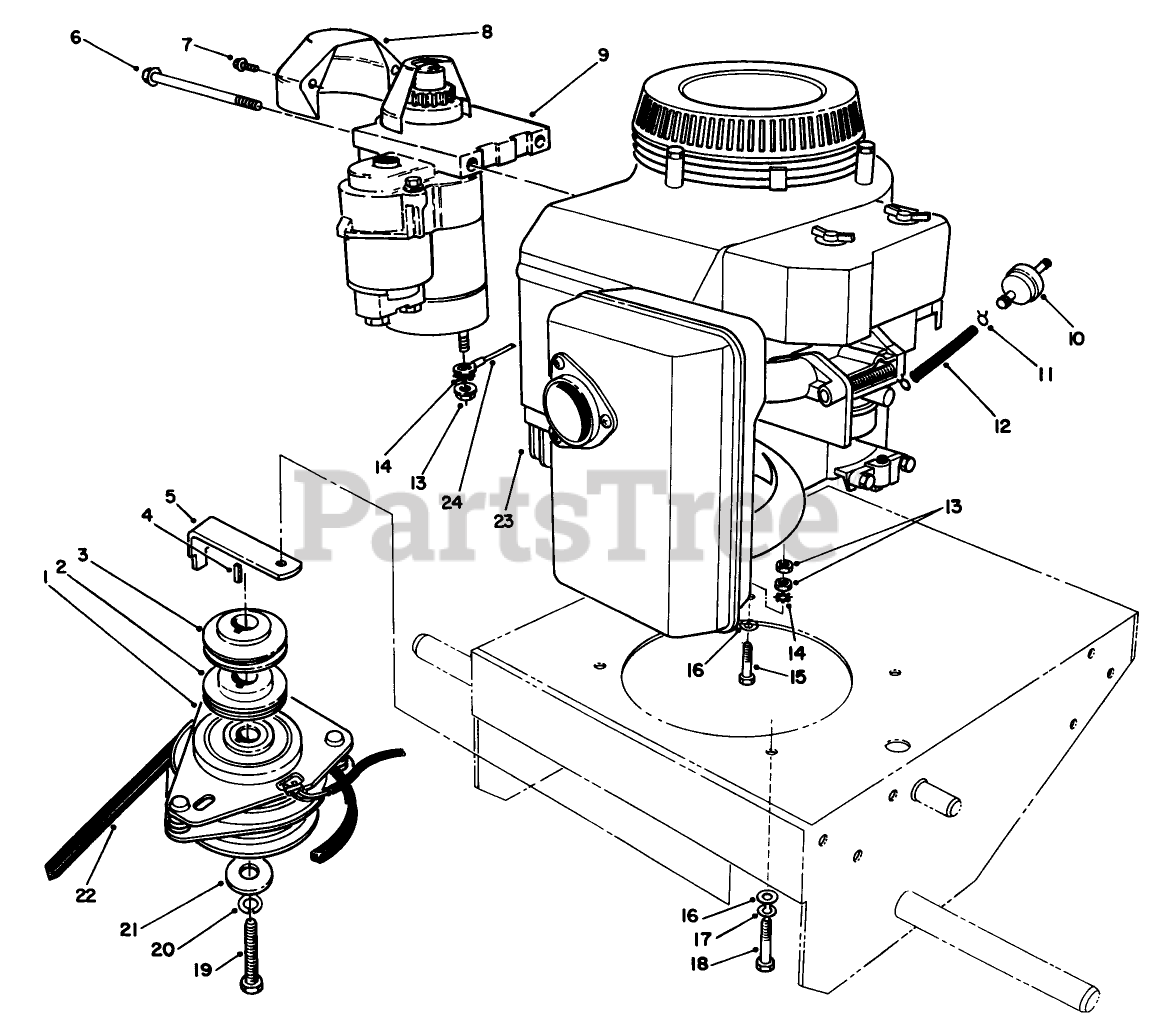

Engine Clutch Assembly Parts Diagram

  • Title

1

Toro 54-3200

See Supercession: 105-2635
(Superseded to 105-2635)

$612.99

$

Usually ships in 3-6 days

0

2

Toro 74-0050

SHEAVE-HALF, LOWER

$24.99

$

Usually ships in 3-6 days

0

3

Toro 74-0060

SHEAVE-HALF, UPPER

$24.99

$

Usually ships in 3-6 days

0

4

Toro 5-1336

KEY-SQUARE

$11.99

$

In Stock, only 3 left!

0

5

Toro 51-4540

See Supercession: 51-4540-03
(Superseded to 51-4540-03)

$24.99

$

In Stock, only 2 left!

0

6

Screw-Hex. Hd. Cap

$

$

Not available

7

Screw-Hex. Hd. Cap

$

$

Not available

8

Cover

$

$

Not available

9

Motor-Starter/Alternator

$

$

Not available

(Incl. Ref. Items #6, 7, 8 Supplied With Engine)

$

$

Not available

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 10

0

11

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

12

Toro 47-2982

See Supercession: 110-4894
(Superseded to 110-4894)

$10.99

$

Usually ships in 3-6 days

0

13

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

15

Toro 57-6370

SCREW

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

18

Toro 57-6380

See Supercession: 33114-025
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

19

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

21

Toro 44-8160

DISCONTINUED

$

$

Not available

22

Toro 54-2750

V-BELT, DRIVE

$55.99

$

Usually ships in 3-6 days

0

23

Engine-Kawasaki Model FB460V Type AF32

$

$

Not available

24

Toro 54-3092

WIRE ASM

$

$

Not available
