30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

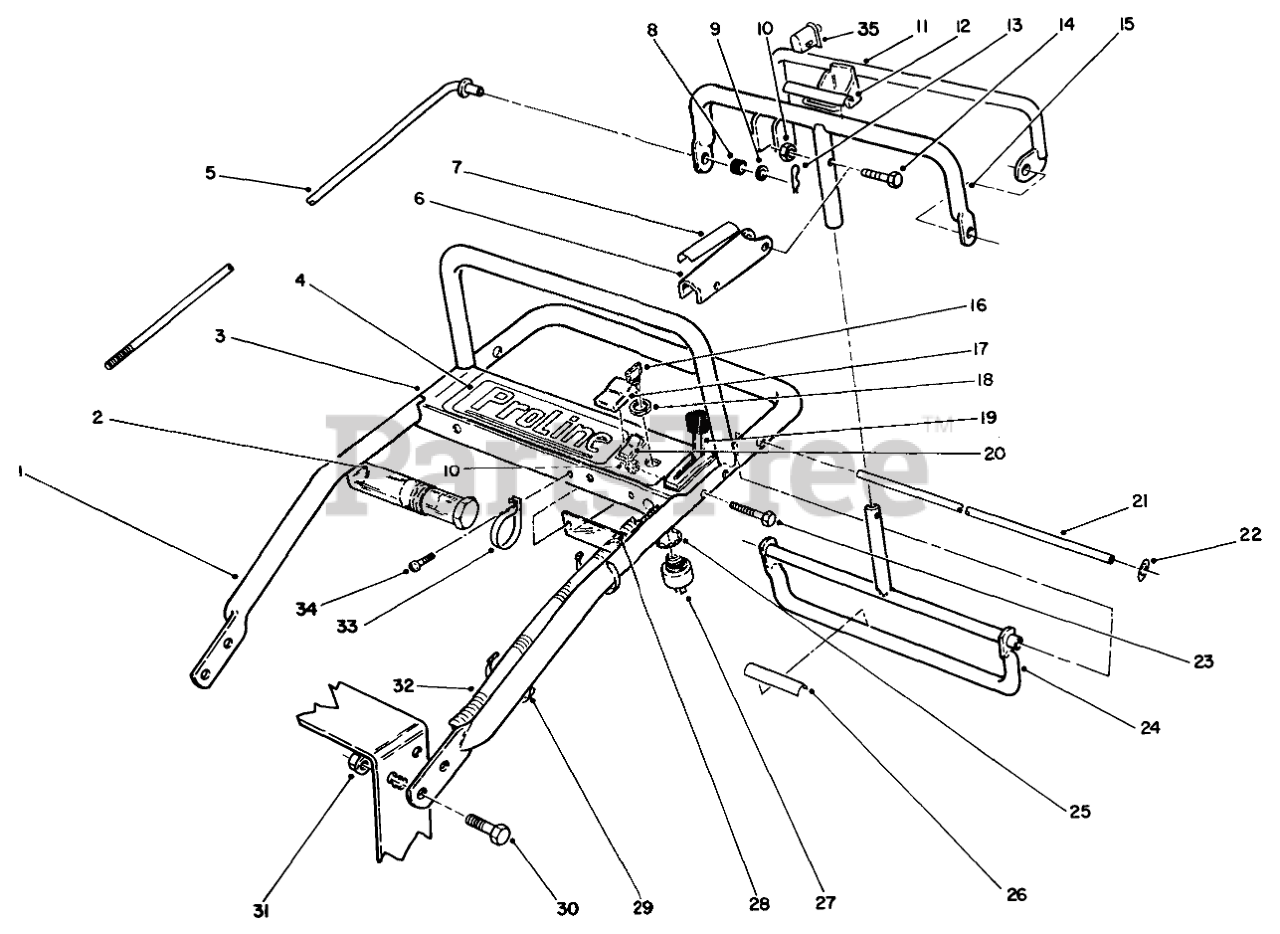

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 67-6440

Handle-Upper
(Superseded to 67-6440-03)

$

$

Not available

2

Toro 74-0720

TUBE-MANUAL

$26.99

$

Usually ships in 3-6 days

0

3

Toro 82-2180

Panel-Control
(Superseded to 82-2180-03)

$

$

Not available

4

Toro 82-7730

DECAL-CONTROL PANEL

$

$

Not available

5

Toro 82-7631

ROD-CONTROL

$78.99

$

Usually ships in 3-6 days

0

6

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$42.99

$

In Stock, only 1 left!

0

7

Toro 52-2010

DECAL-LEVER, PARKING

$6.49

$

In Stock, only 1 left!

0

8

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, only 2 left!

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 15

0

11

Toro 82-7680

Bail
(Superseded to 82-7680-03)

$166.99

$

Usually ships in 3-6 days

0

12

Toro 82-2290

DECAL

$13.99

$

Usually ships in 3-6 days

0

13

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

14

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 6

0

15

Toro 82-7690

Bar
(Superseded to 82-7690-03)

$307.99

$

In Stock, only 1 left!

0

16

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

17

Toro 82-3820

BOOT-SWITCH

$

$

Not available

18

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

19

Toro 74-0630

CONTROL-THROTTLE

$139.99

$

Usually ships in 3-6 days

0

20

Toro 82-2300

SWITCH
(Superseded to 121-8032)

$52.99

$

In Stock, only 1 left!

0

21

Toro 74-0470

PIVOT ROD

$56.99

$

Usually ships in 3-6 days

0

22

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.99

$

In Stock, only 4 left!

0

23

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

24

Toro 74-0380

Control Pivot
(Superseded to 74-0380-03)

$

$

Not available

25

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 8

0

26

Toro 82-2280

DECAL

$11.99

$

Usually ships in 3-6 days

0

27

Toro 29-5560

Switch-Off/On (Incl. Ref. #16, 18, & 25)

$18.99

$

In Stock, only 1 left!

0

28

Toro 57-5811

Panel-Bottom
(Superseded to 93-1187-03)

$53.99

$

Usually ships in 3-6 days

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

30

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

31

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

32

Wire Harness (Ref.)

$

$

Not available

33

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

34

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

35

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0
