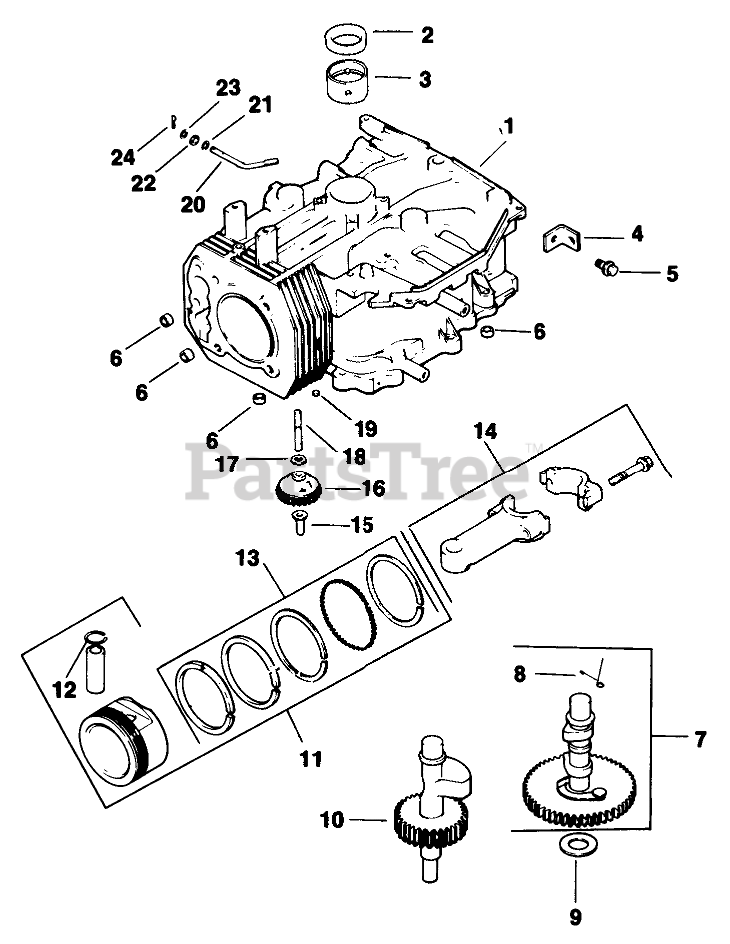

30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 020000001 - 029999999) (1992) CRANKCASE-ENGINE KOHLER MODEL NO. CV14T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

CRANKCASE-ENGINE KOHLER MODEL NO. CV14T-1412 Parts Diagram

  • Title

1

Block-Cylinder (Use Short Block 12 522 01)

$

$

Not available

2

12_032_03

Seal-Oil

$

$

Not available

3

12_030_01

Bearing-Crankshaft

$

$

Not available

12_030_02

Bearing-Crankshaft (.25)

$

$

Not available

12_030_03

Bearing-Crankshaft (.50)

$

$

Not available

4

Toro 12_445_02

Strap-Liting

$

$

Currently unavailable

5

Kohler SM-0839025

Screw

$1.49

$

Usually ships in 2-5 days

0

6

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

7

12_010_01

Camshaft Assembly

$

$

Not available

8

12_089_18

Spring-Actuating

$

$

Not available

9

Toro 12_422_08

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_02

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_10

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_11

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_12

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_06

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_07

Shim-Camshaft

$

$

Currently unavailable

10

12_144_04

Shaft-Balance

$

$

Not available

11

Toro 12_847_01

Piston W/Ring Set (Std.)

$

$

Currently unavailable

Toro 12_847_02

Piston W/Ring Set (.25)

$

$

Currently unavailable

Toro 12_847_03

Piston W/Ring Set (.50)

$

$

Currently unavailable

12

12_018_02

Retainer-Piston Pin

$

$

Not available

13

12_108_01

Ring Set (Std.)

$

$

Not available

12_108_02

Ring Set (.25)

$

$

Not available

12_108_03

Ring Set (.50)

$

$

Not available

14

12_067_01

Connecting Rod STD

$

$

Not available

12_067_02

Connecting Rod .25

$

$

Not available

15

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

16

12_043_05

Gear-Governor ASM

$

$

Not available

17

Kohler SM-0631005

Washer

$

$

Not available

18

12_144_02

Shaft-Govenor Gear

$

$

Not available

19

Toro 52_139_09

Cup

$

$

Currently unavailable

20

12_144_01

Rod-Push

$

$

Not available

21

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 10

0

22

12_032_01

Seal

$

$

Not available

23

Kohler SM-0631015

Washer

$

$

Not available

24

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable
