30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 039000001 - 039999999) (1993) Crankcase - Engine Kohler Model No. Cv14t-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

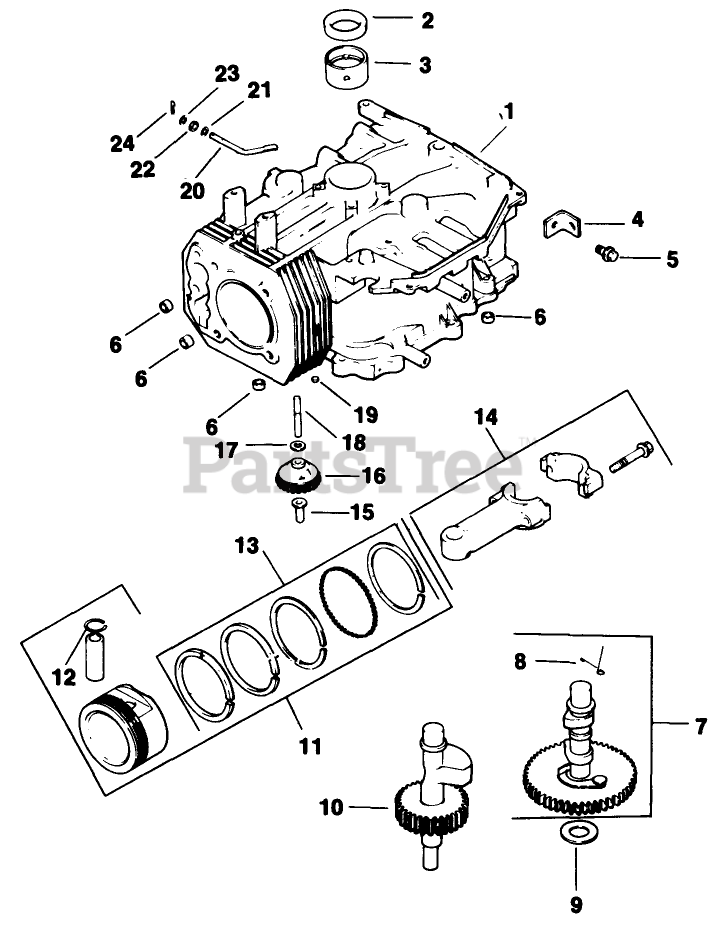

Crankcase - Engine Kohler Model No. Cv14t-1412 Parts Diagram

  • Title

1

Block-Cylinder (Use Short Block 12_522_01)

$

$

Not available

2

Toro 12 032 03

Seal-Crankshaft (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

3

12_030_01

Bearing-Crankshaft

$

$

Not available

12_030_02

Bearing-Crankshaft (.25)

Note: Not Illustrated.

$

$

Not available

12_030_03

Bearing-Crankshaft (.50)

Note: Not Illustrated.

$

$

Not available

4

Toro 12_445_02

Strap-Lifting (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

5

Toro SM-0839025

Screw

$

$

Currently unavailable

6

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

7

12_010_01

Camshaft Assembly

$

$

Not available

8

12_089_18

Spring-Actuating (Only On: 72042,72043,72062,72063)

$

$

Not available

9

Toro 12_422_08

Shim-Camshaft

$

$

Currently unavailable

Toro 12_422_02

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_10

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_11

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_12

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_06

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_422_07

Shim-Camshaft

Note: Not Illustrated.

$

$

Currently unavailable

10

12_144_04

Shaft-Balance

$

$

Not available

11

Toro 12_847_01

Piston W/Ring Set (Std.)

$

$

Currently unavailable

Toro 12_847_02

Piston W/Ring Set (.25)

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_847_03

Piston W/Ring Set (.50)

Note: Not Illustrated.

$

$

Currently unavailable

12

12_018_02

Retainer-Piston Pin (Only On: 72042, 72043,72062,72063)

$

$

Not available

13

12_108_01

Ring Set STD (Only On: 72042,72043,72062,72063)

$

$

Not available

12_108_02

Ring Set .25 (Only On: 72042,72043,72062,72063)

Note: Not Illustrated.

$

$

Not available

12_108_03

Ring Set .50 (Only On: 72042,72043,72062,72063)

Note: Not Illustrated.

$

$

Not available

14

Toro 12 067 01

Connecting Rod STD (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

Toro 12 067 02

Connecting Rod .25 (Only On: 72042, 72063, 72062, 72043)

Note: Not Illustrated.

$

$

Currently unavailable

15

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

16

Toro 12 043 05

Gear-Governor ASM (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

17

Toro SM-0631005

Washer

$

$

Currently unavailable

18

12_144_02

Shaft-Govenor Gear

$

$

Not available

19

Toro 52_139_09

Cup

$

$

Currently unavailable

20

Toro 12 144 01

Shaft-Governor Cross (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

21

Toro X-25-102

Washer

$

$

Currently unavailable

22

12_032_01

Seal

$

$

Not available

23

Toro SM-0631015

Washer-Governor Shaft (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

24

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable
