30175 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 049000001 - 049999999) (1994) Fuel System Group-Engine Kohler Model No. Cv14 T-1412(continued) Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

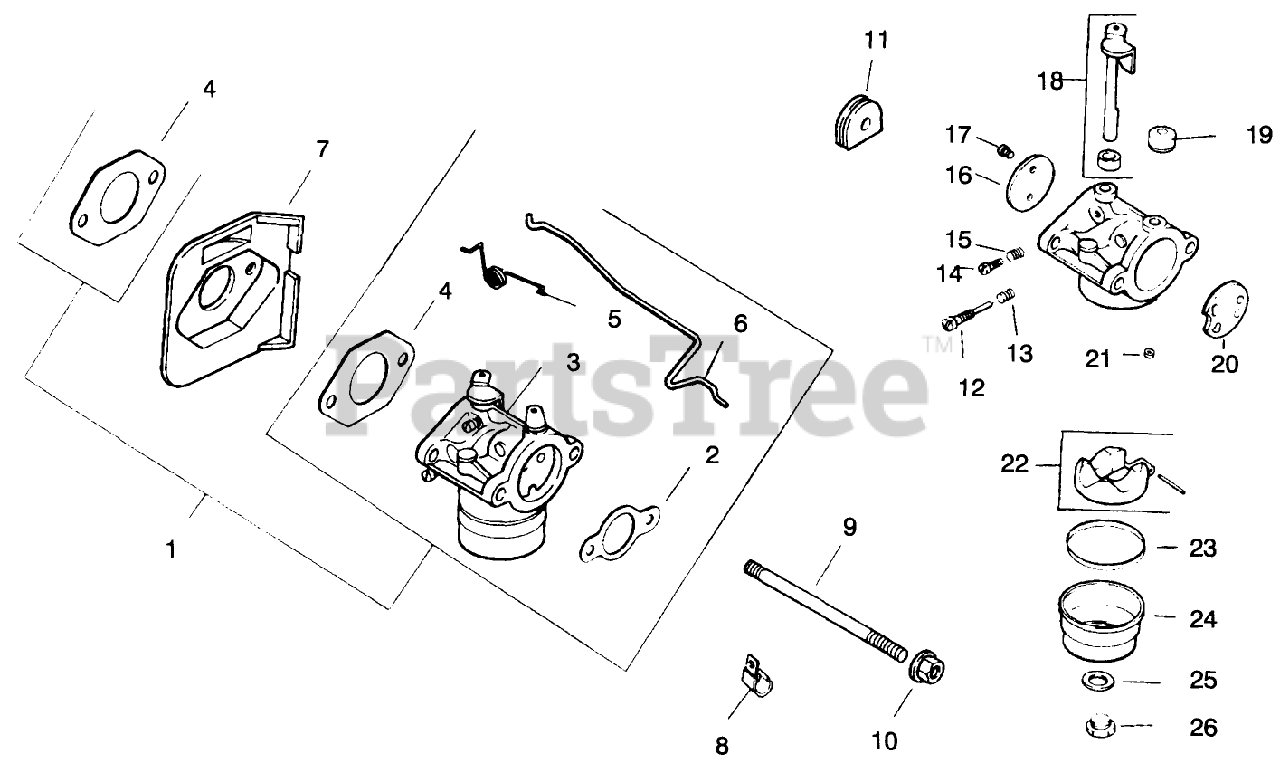

Fuel System Group-Engine Kohler Model No. Cv14 T-1412(continued) Parts Diagram

  • Title

1

Toro 12 853 20

Kit-Carburetor (Incl. Ref. #2-6)

$

$

Currently unavailable

2

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

3

Toro 12 053 26

Carburetor Assembly (Incl. Ref. #2-6)

$

$

Currently unavailable

4

Toro 12 041 01

Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

5

Toro 12 089 23

Spring Choke

$

$

Currently unavailable

6

12_079_07

Linkage-Choke (Only On: 72042,72043,72062,72063)

$

$

Not available

7

Toro 12_265_01

Deflector-Heat (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

8

Toro 47 154 01

Clip-Cable (Only On: 72103)

$

$

Currently unavailable

9

Toro M-0629122

Stud M6x1.0x110 (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

10

Toro SM-0641060

Nut

$

$

Currently unavailable

11

Toro 12 313 01

Grommet (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

12

Toro 12 368 03

Needle-Idle

$

$

Currently unavailable

13

Toro 12 089 09

Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

14

12_086_04

Screw-Idle Speed Adjust (Only On: 72042,72043,72062,72063)

$

$

Not available

15

Toro 12 089 09

Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

16

12_146_03

Plate-Throttle (Only On: 72042,72043,72062,72063)

$

$

Not available

17

Toro 25_086_27

Screw-Throttle Plate (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

18

Toro 12 144 09

Shaft-W/Lever Seal (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

19

Toro 12 173 06

Cap-Choke Lever

$

$

Currently unavailable

20

Toro 12 146 10

Plate-Choke

$

$

Currently unavailable

21

Toro 12 337 07

Jet-Main

$

$

Currently unavailable

22

Toro 12_757_02

Kit-Float (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

23

12_041_05

Gasket-Bowl (Only On: 72042,72043,72062,72063)

$

$

Not available

24

Toro 12 104 01

Bowl-Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

25

Toro 12 041 06

Gasket-Bowl Screw (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

26

Toro 12 086 05

Screw-Fuel Bowl (Only On: 72042, 72063,72062, 72043)

$

$

Currently unavailable

Toro 12_757_01

Kit-Carburetor Repair (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 755 36

Kit-High Altitude Jet

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 11

Kit-Choke Repair

Note: Not illustrated

$

$

Currently unavailable
