30176 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 059000001 - 059999999) (1995) ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

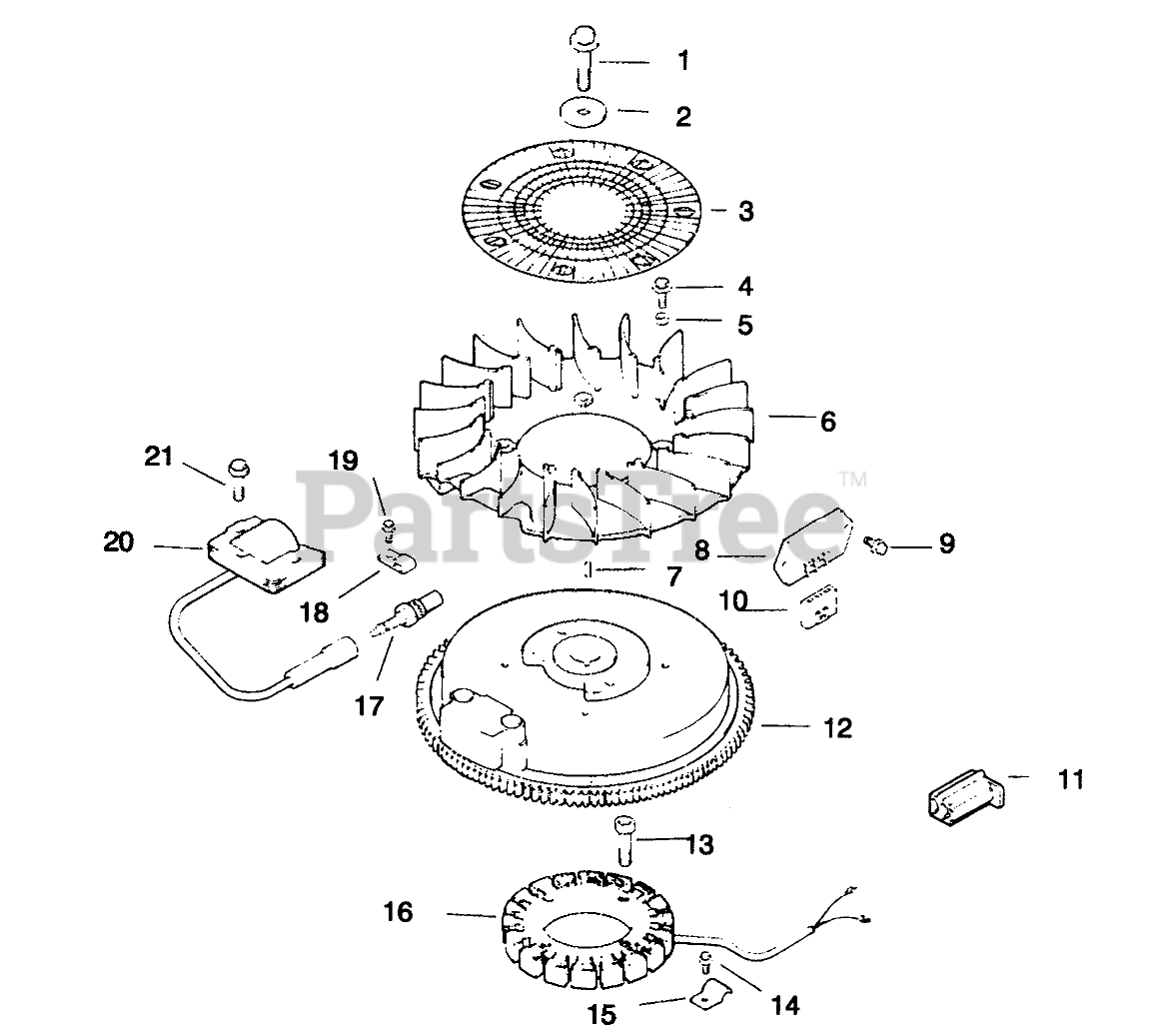

ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

  • Title

Toro 12-755-02

Kit-Cylinder Head

Note: Not illustrated

$

$

Currently unavailable

1

Toro 12-086-14

Screw-Flywheel

$

$

Currently unavailable

2

Toro 12-486-03

Washer-Flywheel

$

$

Currently unavailable

3

Toro 12-162-03

Screen-Grass

$

$

Currently unavailable

4

Kohler M-0639016

Screw
(Superseded to M-639016)

$2.49

$

In Stock, only 3 left!

0

5

Toro 12-112-01

Spacer

$

$

Currently unavailable

6

Toro 12-157-01

Fan

$

$

Currently unavailable

7

Kohler X-42-15

Key
(Superseded to X-42-15-S)

$2.99

$

In Stock, only 2 left!

0

8

Toro 12-403-01

Rectifier-Unregulated

$

$

Currently unavailable

9

Kohler M-0639016

Screw
(Superseded to M-639016)

$2.49

$

In Stock, only 3 left!

0

10

Kohler 236602

Connector
(Superseded to 236602-S)

$7.99

$

In Stock, Qty 11

0

11

Toro 41-155-03

Connector

$

$

Currently unavailable

12

Toro 12-025-16

Flywheel Assembly

$

$

Currently unavailable

13

Kohler M-0548025

Screw
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

14

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, Qty 13

0

15

Toro 12-154-02

Clip-Stator Harness

$

$

Currently unavailable

16

Toro 24-085-01

Stator-15 amp

$

$

Currently unavailable

17

Toro 12-132-02

Spark Plug

$

$

Currently unavailable

18

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

19

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, Qty 13

0

20

Toro 12-584-02

Module-Ignition

$

$

Currently unavailable

21

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

Toro 25-518-05

Lead-Black, Rectifier to Connector(5"-14 Gauge

Note: Not illustrated

$

$

Currently unavailable

Toro 12-518-01

Lead-White, Ground to Kill (9.5"-18 Gauge)

Note: Not illustrated

$

$

Currently unavailable
