30176 - Toro ProLine Walk-Behind Mower, Gear Drive, 14hp (SN: 059000001 - 059999999) (1995) ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 14hp

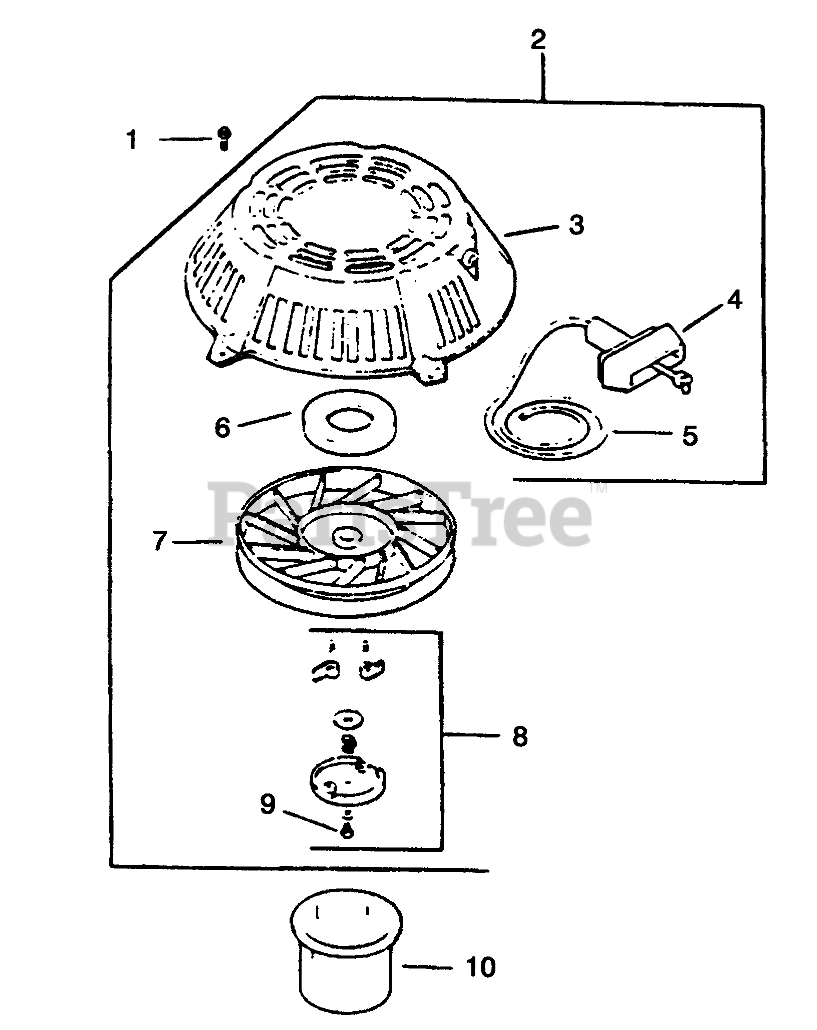

ENGINE KOHLER MODEL NO. CV14 T-1412 Parts Diagram

  • Title

Toro 12-133-31

Decal-H.P.

Note: Not illustrated

$

$

Currently unavailable

1

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, Qty 13

0

2

Toro 12-165-01

Starter (Incl.Ref. #3-9)

$

$

Currently unavailable

3

Toro 12-081-01

Housing-Starter

$

$

Currently unavailable

4

Kohler 234452

Handle
(Superseded to 25 166 01)

$15.99

$

In Stock, Qty 10

0

5

Toro 12-160-01

Rope-Starter

$

$

Currently unavailable

6

Toro 12-089-06

Spring & Keeper

$

$

Currently unavailable

7

Toro 12-093-01

Pulley

$

$

Currently unavailable

8

Toro 12-757-06

Kit-Dog Replacement (Incl Ref. #9)

$

$

Currently unavailable

9

Toro 41-086-09

Screw-Pozidrive

$

$

Currently unavailable

10

Toro 15-109-01

Cup-Driver

$

$

Currently unavailable

Toro 12-113-07

Decal-Starting

Note: Not illustrated

$

$

Currently unavailable
