30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 020000001 - 029999999) (1992) BAFFLE & SHROUD-ENGINE MODEL NO. MV16S-TYPE 56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

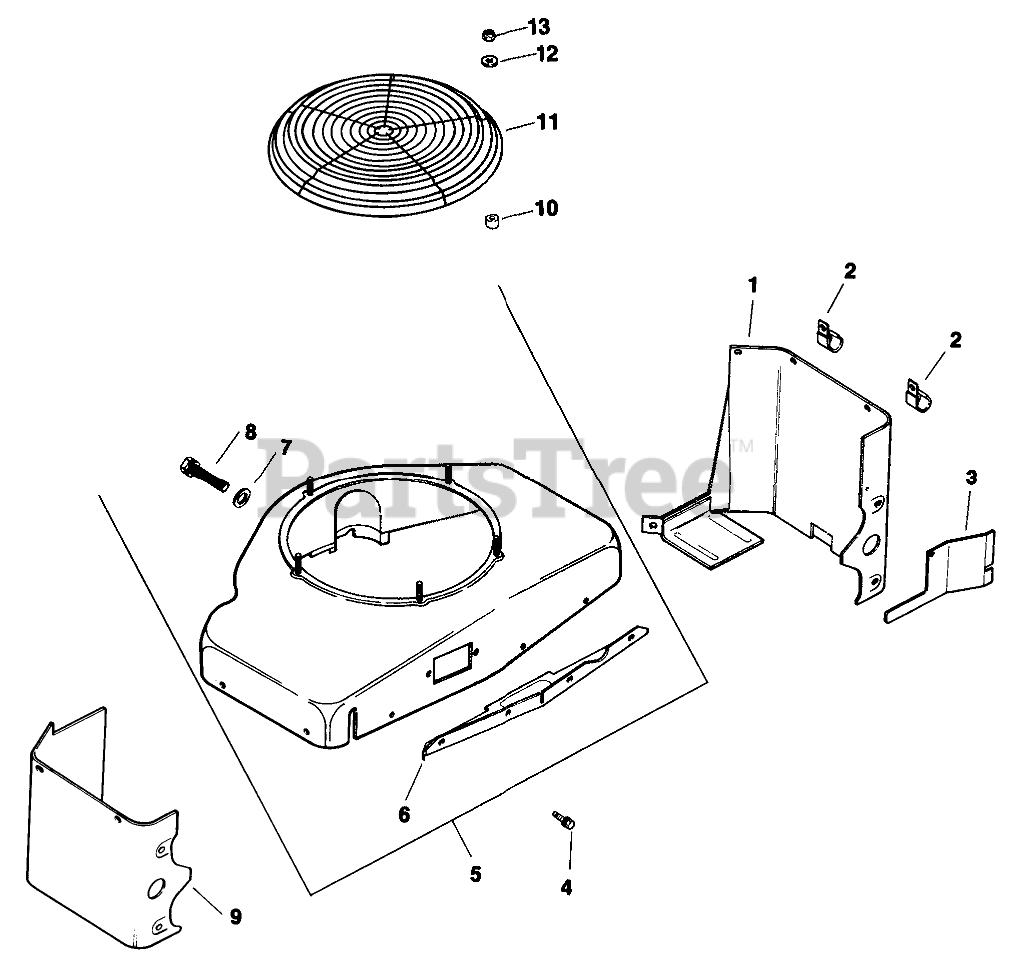

BAFFLE & SHROUD-ENGINE MODEL NO. MV16S-TYPE 56519 Parts Diagram

  • Title

1

Toro 52_063_21

Baffle-Cylinder Head

$

$

Currently unavailable

2

47_154_01

Clamp

$

$

Not available

3

Toro 52_063_01

Baffle-Cylinder Head

$

$

Currently unavailable

4

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

Usually ships in 2-5 days

0

5

Toro 82_755_01

Kit-Blower Housing (Incl. Ref. #6-8)

$

$

Currently unavailable

6

Toro 52_217_01

Support-Upper Housing

$

$

Currently unavailable

7

Toro 52_468_16

Washer

$

$

Currently unavailable

8

52_086_11

Screw-H.C

$

$

Not available

9

Toro 52_124_23

Baffle-Cylinder Head

$

$

Currently unavailable

10

Toro 52_112_12

Spacer

$

$

Currently unavailable

11

Toro 47_314_01

GuARd-Grass Screen

$

$

Currently unavailable

12

Toro 25_468_03

Washer

$

$

Currently unavailable

13

Kohler X-101-12

Locknut
(Superseded to X-101-12-S)

$

$

Not available

45_113_07

Decal-Horsepower

Note: Not Illustrated.

$

$

Not available
