30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000001 - 049000730) (1994) ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 BREATHER & VENT GROUP 3 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

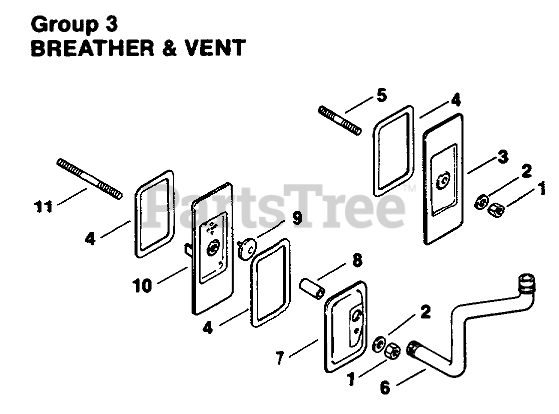

ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 BREATHER & VENT GROUP 3 Parts Diagram

  • Title

1

Toro x-81-1

Nut

$

$

Currently unavailable

2

Kohler X-25-12

Washer
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

3

Kohler 52 096 18

Cover-Cylinder Valve
(Superseded to 52 096 55-S)

$

$

Not available

4

5205501

Gasket-Cover

$

$

Not available

5

Toro X-325-39

Stud-Valve Cover

$

$

Currently unavailable

6

5232612

Hose-Breather

$

$

Not available

7

5209608

Cover-Upper Cylinder Valve

$

$

Not available

8

5203204

Seal-Breather

$

$

Not available

9

Kohler 52 462 01

Valve-Umbrella

$

$

Not available

10

Kohler 52 096 22

Cover-Lower Cylinder Value
(Superseded to 52 035 02)

$42.99

$

In Stock, only 1 left!

0

11

Kohler 275220

Stud
(Superseded to 275220-S)

$

$

Not available
