30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000001 - 049000730) (1994) ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 CAMSHAFT & VALVES GROUP 4 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

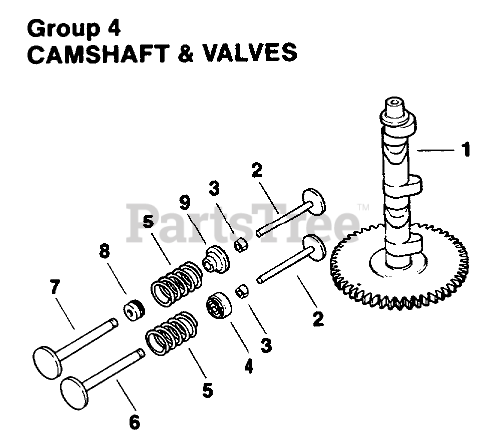

ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 CAMSHAFT & VALVES GROUP 4 Parts Diagram

  • Title

1

5201209

Camshaft

$

$

Not available

2

5201903

Tappet

$

$

Not available

3

Kohler 4175510

Kit-Retainer

$

$

Not available

4

Kohler 52 413 01

Rotator-Valve
(Superseded to 52 413 01-S)

$35.99

$

Usually ships in 2-5 days

0

5

2508901

Spring-Valve

$

$

Not available

6

5201605

Valve-Exhaust

$

$

Not available

7

5201708

Valve-Intake

$

$

Not available

8

5203213

Seal-Intake Valve Stem

$

$

Not available

9

Kohler 230011

Retainer-Spring
(Superseded to 230011-S)

$9.49

$

In Stock, Qty 11

0
