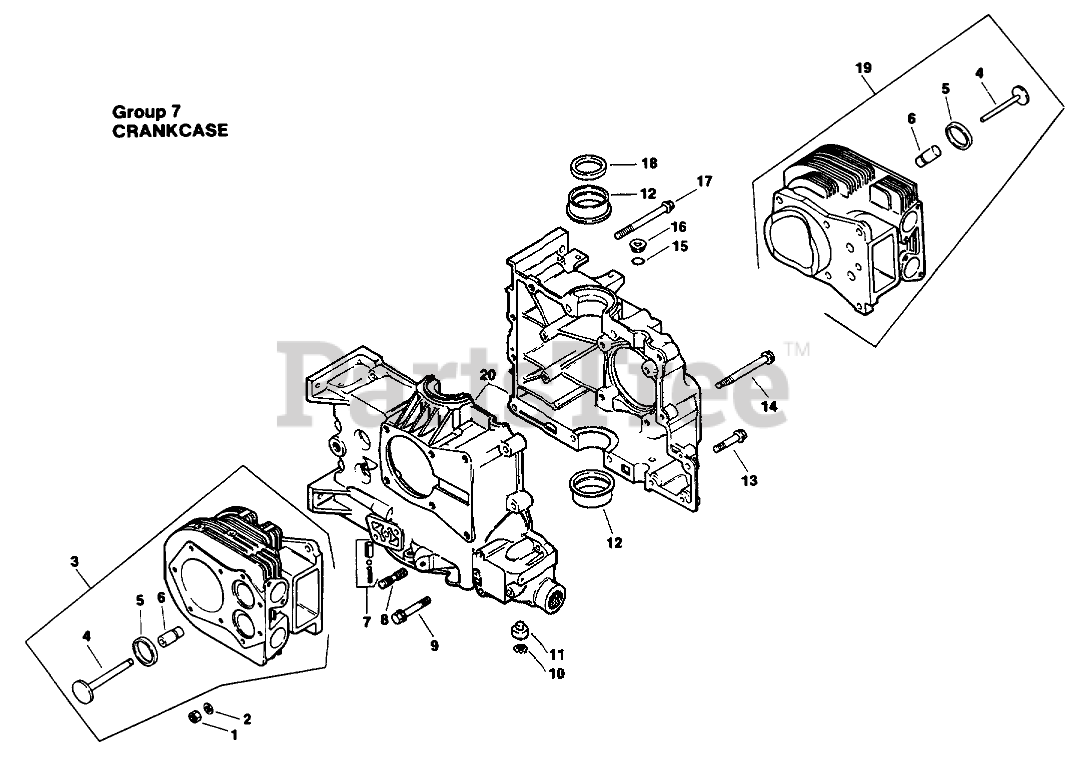

30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000001 - 049000730) (1994) ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 CRANKCASE GROUP 7 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 CRANKCASE GROUP 7 Parts Diagram

  • Title

1

Kohler X-82-2

Nut
(Superseded to 25 100 22-S)

$5.99

$

Usually ships in 2-5 days

0

2

5246812

Washer-Flat

$

$

Not available

3

8275517

Kit-#2 Cylinder Barrel (Incl. Ref. #4-6)

$

$

Not available

4

5201605

Valve-Exhaust

$

$

Not available

5

5203101

Inset-Valve Seat

$

$

Not available

6

5231606

Guide-Valve

$

$

Not available

7

5275550

Kit-Oil Relief

$

$

Not available

8

52 07212

Stud-Step

$

$

Not available

9

2508612

Screw-Hex. Flange

$

$

Not available

10

Kohler X-269-43

Ring-Retaining
(Superseded to X-269-43-S)

$3.99

$

Usually ships in 2-5 days

0

11

5207805

Shaft-Governor

$

$

Not available

12

5203010

Bearing-Sleeve (Std.)

$

$

Not available

5203011

Bearing-Sleeve (.010)

Note: Not illustrated

$

$

Not available

5203012

Bearing-Sleeve (.020)

Note: Not illustrated

$

$

Not available

13

2508610

Screw-Hex. Flange

$

$

Not available

14

2508613

Screw-Hex. Flange

$

$

Not available

15

5214102

O-Ring

$

$

Not available

16

5213908

Plug

$

$

Not available

17

2508611

Screw-Hex Flange

$

$

Not available

18

Kohler 52 032 10

SeaI-RearOil
(Superseded to 52 032 10-S)

$30.99

$

In Stock, only 3 left!

0

19

8275516

Kit-#2 Cylinder Barrel (Incl. Ref. #4-6)

$

$

Not available

Kohler 82 522 30

Crankcase Service with Short Block

$

$

Not available
