30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000001 - 049000730) (1994) ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 ELECTRIC START GROUP 11 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

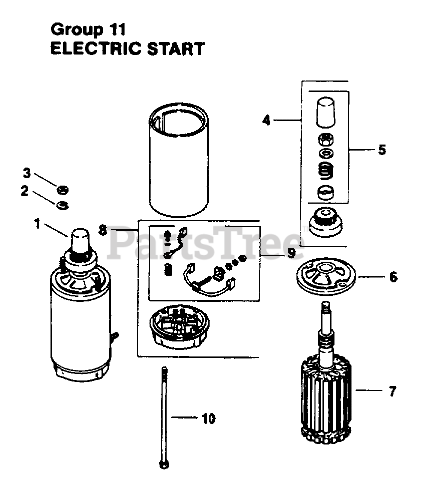

ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 ELECTRIC START GROUP 11 Parts Diagram

  • Title

1

Kohler 52 098 09

Starter Assembly (Incl. Ref. #4-10)
(Superseded to 52 098 12)

$393.99

$

Usually ships in 2-5 days

0

2

Kohler X-20-1

Washer
(Superseded to X-20-1-S)

$3.99

$

Usually ships in 2-5 days

0

3

Toro x-81-1

Nut

$

$

Currently unavailable

4

Kohler 52 755 05

Kit-Drive (Incl. Ref. #5)
(Superseded to 82 755 32)

$

$

Not available

5

Kohler 52 755 08

Kit-Drive Parts
(Superseded to 82 755 32)

$

$

Not available

6

Kohler 52 227 01

Cap-Drive End
(Superseded to 82 755 32)

$

$

Not available

7

Kohler 52 170 02

Armature
(Superseded to 52 170 02-S)

$

$

Not available

8

Kohler 52 227 09

Cap-Commutator End (Incl. Ref. #9)
(Superseded to 52 227 10-S)

$341.99

$

Usually ships in 2-5 days

0

9

Kohler 48 755 15

Kit-Brush
(Superseded to 52 755 15)

$

$

Not available

10

5221101

Bolt

$

$

Not available

5235701

Lubricant

$

$

Not available
