30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000001 - 049000730) (1994) ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 OIL PUMP GROUP 25 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

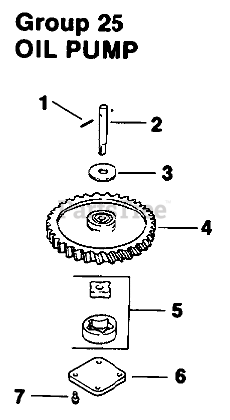

ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 OIL PUMP GROUP 25 Parts Diagram

  • Title

1

Toro X-280-25

Pin-Roll

$

$

Currently unavailable

2

52 144 05

Shaft-OiIPump

$

$

Not available

3

5242201

Spacer-Shim

$

$

Not available

4

52 043 05

Gear-OiIPump

$

$

Not available

5

52 393 09

Rotor Set

$

$

Not available

6

52 096 03

Cover-Oil Pump

$

$

Not available

7

Toro X-67-64

Screw

$

$

Currently unavailable
