30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000731 - 049999999) (1994) Electric Schematic Parts Diagram
ProLine Walk-Behind Mower, Gear Drive, 16hp

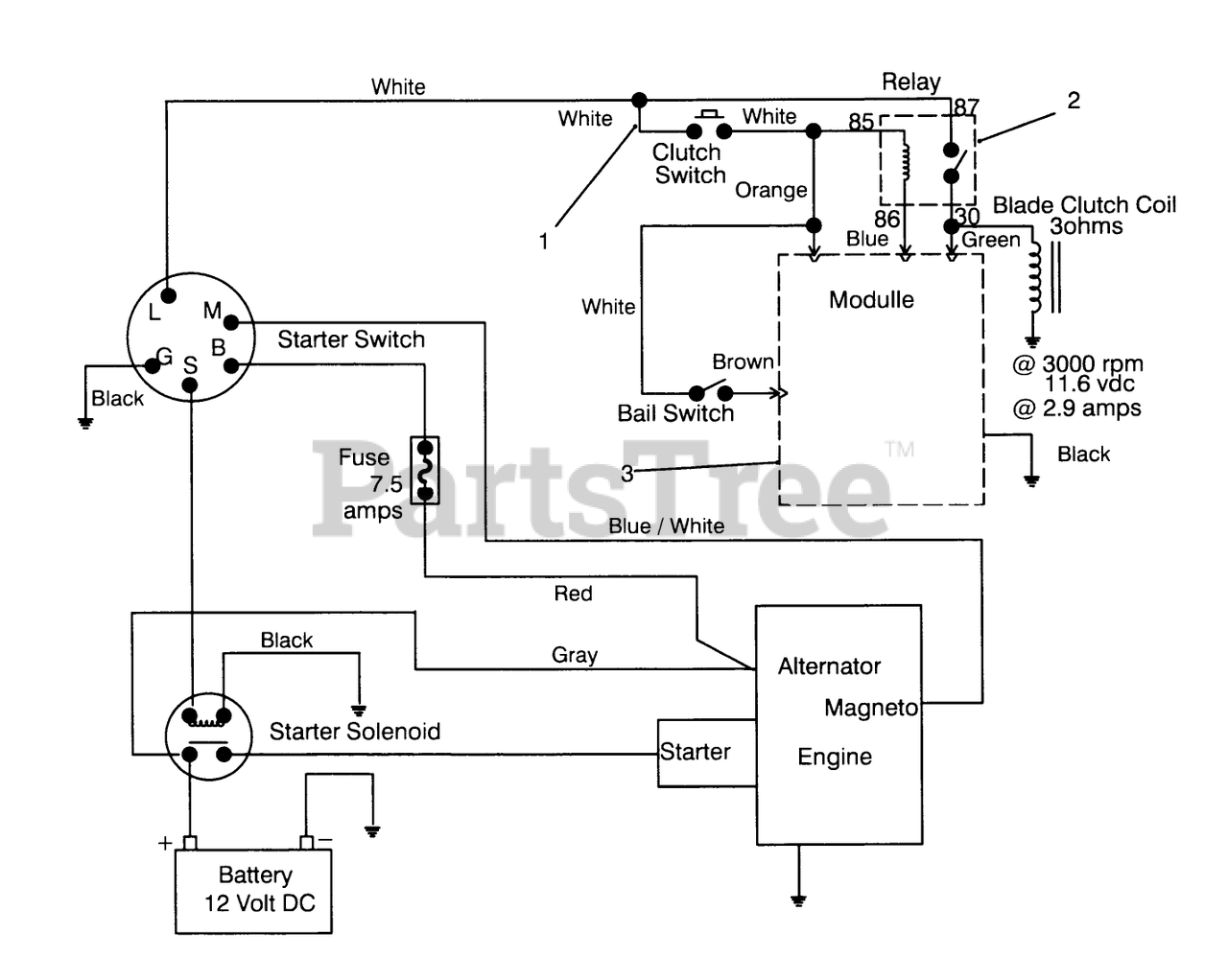

Electric Schematic Parts Diagram
Toro 82-4840
DISCONTINUED
$
$
Not available
Toro 63-7590
RELAY
$89.99
$
Usually ships in 3-6 days
$
$
Not available
