30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 049000731 - 049999999) (1994) OIL PAN-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

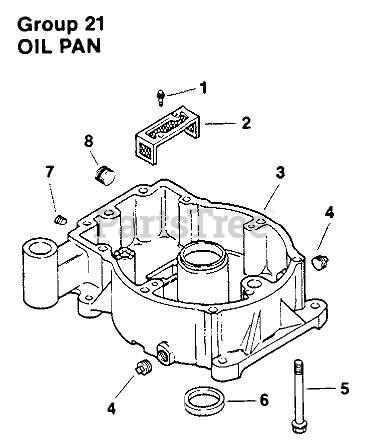

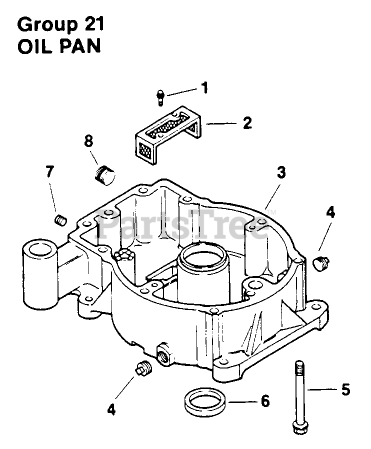

OIL PAN-ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$

$

Not available

2

5205003

Filter-Oil Pickup

$

$

Not available

3

Kohler 52 199 03

Pan-Oil
(Superseded to 52 199 12-S)

$501.99

$

Usually ships in 2-5 days

0

4

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, Qty 14

0

5

5208612

Screw-Hex. Washer Hd.

$

$

Not available

6

Kohler 52 032 10

SeaI-RearOil
(Superseded to 52 032 10-S)

$23.99

$

In Stock, Qty 5

0

7

Kohler X-75-38

Plug-Hex Countersunk
(Superseded to X-75-38-S)

$3.49

$

Usually ships in 2-5 days

0

8

Toro X-75.23

Plug-Countersunk Hex

$

$

Currently unavailable
