30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) BLOWER HOUSING AND BAFFLES ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

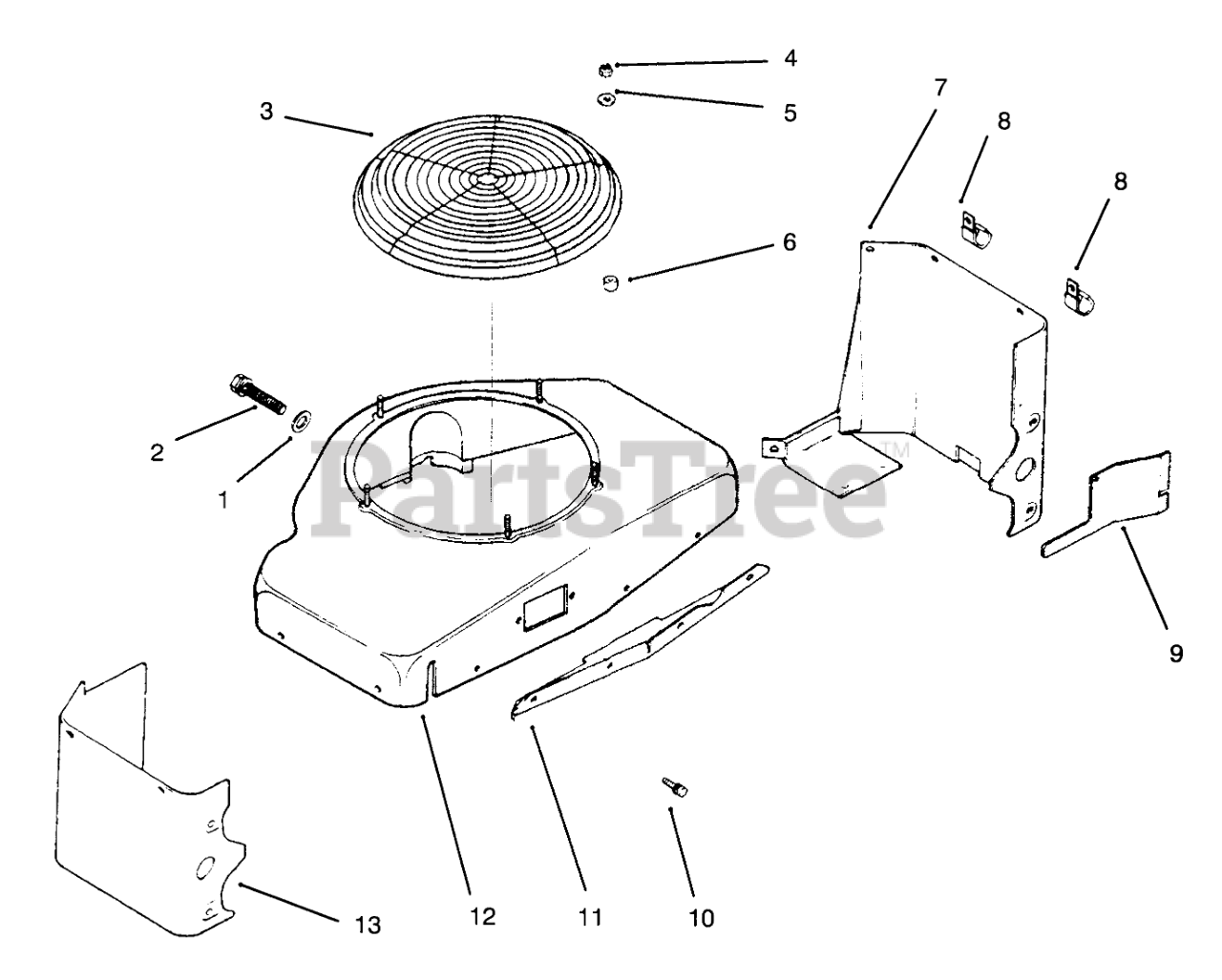

BLOWER HOUSING AND BAFFLES ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

5246816

Washer

$

$

Not available

2

5208611

Screw-Self Tap

$

$

Not available

3

4731401

Guard-Grass Screen

$

$

Not available

4

Kohler X-101-12

Locknut
(Superseded to X-101-12-S)

$

$

Not available

5

2546803

Washer

$

$

Not available

6

5211212

Spacer

$

$

Not available

7

5206321

Baffle-Cylinder Head

$

$

Not available

8

4715401

Clamp

$

$

Not available

9

5206301

Baffle-Cylinder Head

$

$

Not available

10

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

11

5221701

Support-Upper Housing

$

$

Not available

12

8275501

Kit-Blower Housing (Incl. Ref. #1,2,11)

$

$

Not available

13

5212423

Baffle-Cylinder Head

$

$

Not available

4511307

Decal-Horsepower

Note: Not illustrated

$

$

Not available
