30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) Cylinder Head, Crankshaft, Pistons And Connecting Rods Engine Kohler Model No. Mv16s-Type Ps56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

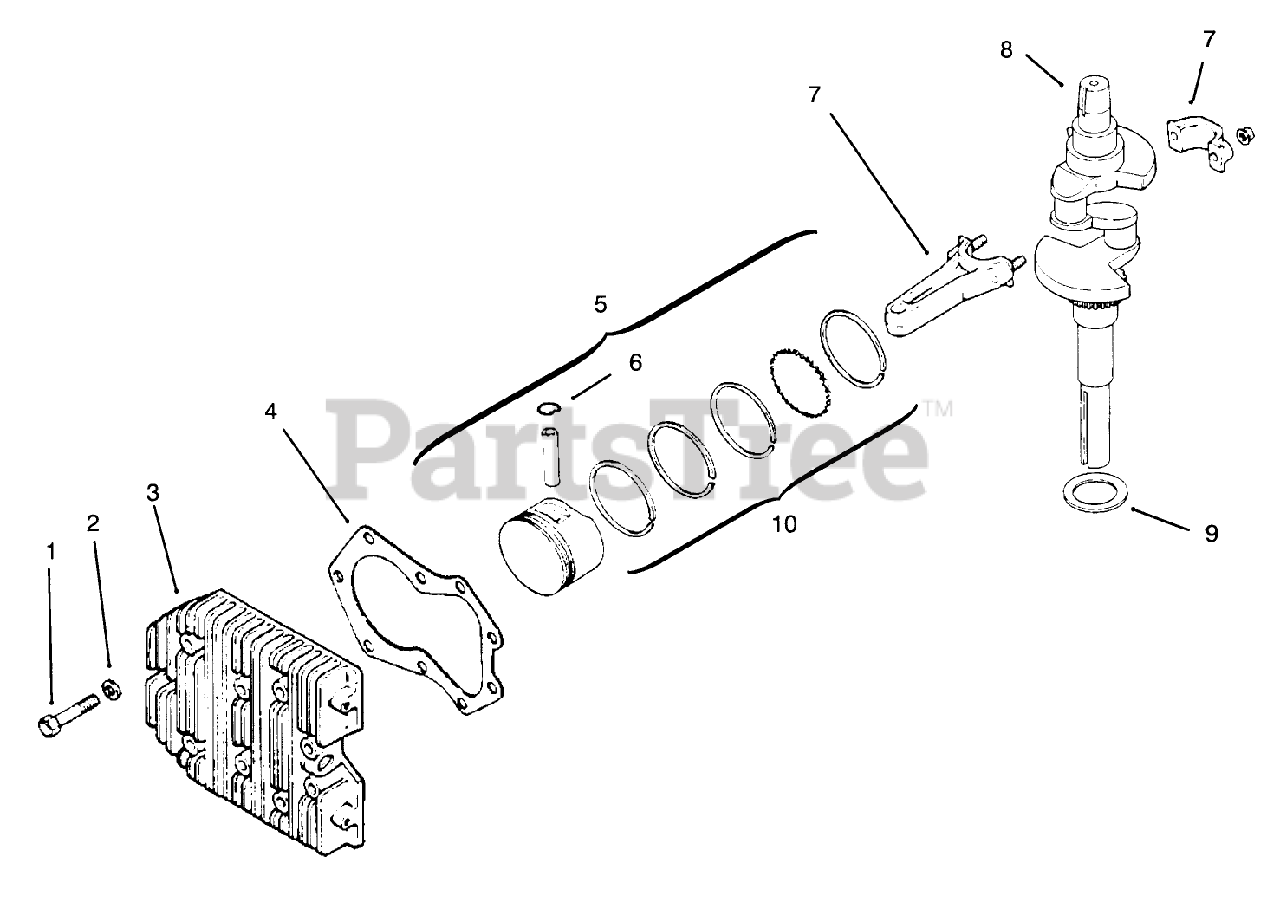

Cylinder Head, Crankshaft, Pistons And Connecting Rods Engine Kohler Model No. Mv16s-Type Ps56519 Parts Diagram

  • Title
1

Toro 41_086_02

Screw H.C.

$

$

Currently unavailable

2

Toro 220534

Washer

$

$

Currently unavailable

3

Toro 52_015_10

Head-Cylinder

$

$

Currently unavailable

4

Toro 52_041_02

Gasket-Head

$

$

Currently unavailable

5

Toro 52_874_11

Piston Ring Set Std.

$

$

Currently unavailable

Toro 52_874_12

Piston Ring Set .003"

Note: Not illustrated

$

$

Currently unavailable

Toro 52_874_13

Piston Ring Set .010"

Note: Not illustrated

$

$

Currently unavailable

Toro 52_874_14

Piston Ring Set .020"

Note: Not illustrated

$

$

Currently unavailable

Toro 52_874_15

Piston Ring Set .030"

Note: Not illustrated

$

$

Currently unavailable

6

Toro 230004

Retainer, Pin

$

$

Currently unavailable

7

Toro 52_067_67

Rod-Connecting Std.

$

$

Currently unavailable

Toro 52_067_68

Rod-Connecting .010"

Note: Not illustrated

$

$

Currently unavailable

8

Toro 52_014_93

Crankshaft

$

$

Currently unavailable

9

Toro 52_468_03

Washer-Thrust

$

$

Currently unavailable

Toro 52_468_04

Washer-Thrust

Note: Not illustrated

$

$

Currently unavailable

Toro 52_468_05

Washer-Thrust

Note: Not illustrated

$

$

Currently unavailable

10

Toro 52_108_09

Ring Set Std. .003"

$

$

Currently unavailable

Toro 52_108_10

RingSet.010"

Note: Not illustrated

$

$

Currently unavailable

Toro 52_108_11

Ring Set .020"

Note: Not illustrated

$

$

Currently unavailable

Toro 52_108_12

Ring Set.030"

Note: Not illustrated

$

$

Currently unavailable
