30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) INTAKE MANIFOLD AND CARBURATOR ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

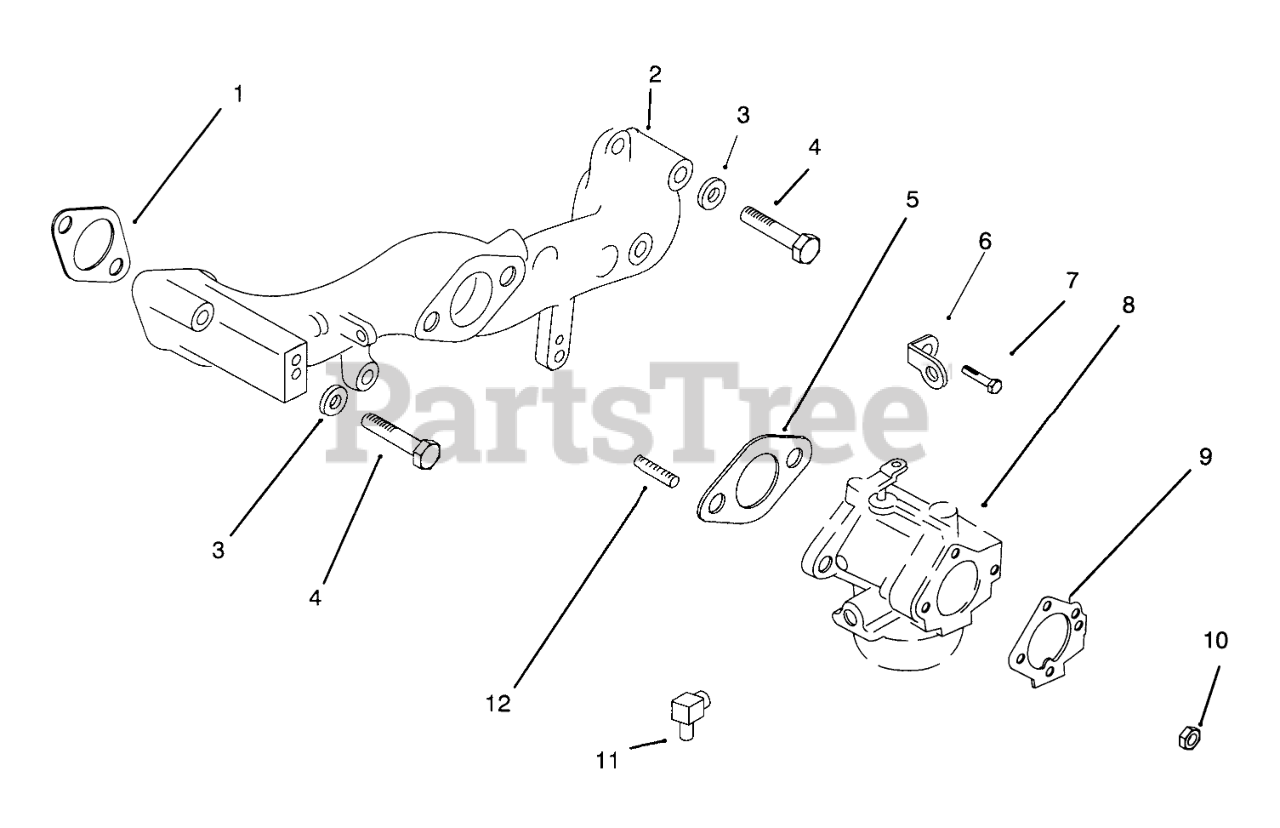

INTAKE MANIFOLD AND CARBURATOR ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

5204109

Gasket-Intake Manifold

$

$

Not available

2

5216414

Manifold,Intake

$

$

Not available

3

Kohler X-21-1

Washer
(Superseded to X-21-1-S)

$3.99

$

Usually ships in 2-5 days

0

4

Kohler X-6-29

Screw
(Superseded to X-6-29-S)

$3.49

$

In Stock, only 4 left!

0

5

Kohler 271030

Gasket
(Superseded to 271030-S)

$7.49

$

In Stock, Qty 8

0

6

Kohler 232867

Strap Lifting
(Superseded to 28 445 01-S)

$

$

Not available

7

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

8

5285309

Carburetor Kit w/Linkage

$

$

Not available

5285325

Carburetor Kit w/Linkage

Note: Not illustrated

$

$

Not available

5205354

Carburetor Assembly For Information Only

Note: Not illustrated

$

$

Not available

9

2504106

Gasket

$

$

Not available

10

Kohler X-77-2

Nut
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

11

25515502

Connector-Hose

$

$

Not available

12

Kohler 235778

Clip
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0
