30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) OIL PUMP AND DIPSTICK ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

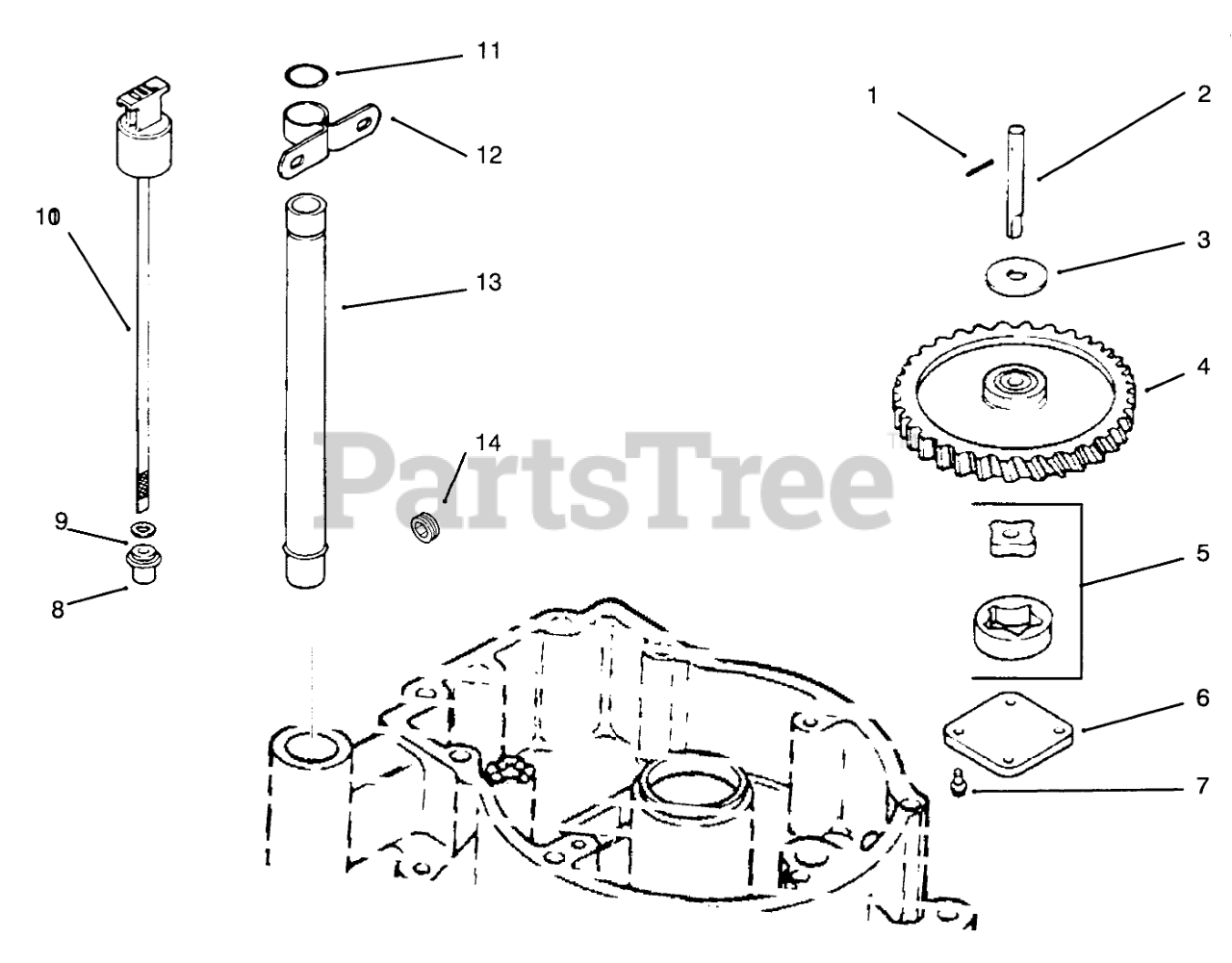

OIL PUMP AND DIPSTICK ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

Kohler X-280-25

Pin-Roll
(Superseded to X-280-25-S)

$3.49

$

In Stock, Qty 11

0

2

5214405

Shaft-Oil Pump

$

$

Not available

3

5242201

Spacer-Shim

$

$

Not available

4

5204305

Gear-Oil Pump

$

$

Not available

5

5239309

Rotor Set

$

$

Not available

6

5209603

Cover-Oil Pump

$

$

Not available

7

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$

$

Not available

8

5203214

Seal-Rubber

$

$

Not available

9

Kohler X-25-44

Screw
(Superseded to X-25-44-S)

$3.99

$

Usually ships in 2-5 days

0

10

5203814

Dipstick (Incl. Ref. #8-9)

$

$

Not available

11

4115301

O-Ring

$

$

Not available

12

5212611

Bracket-Oil Tube Support

$

$

Not available

13

5212320

Tube-Oil Fill

$

$

Not available

14

4713901

Plug-Cup

$

$

Not available
