30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 059000001 - 059999999) (1995) STARTER ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

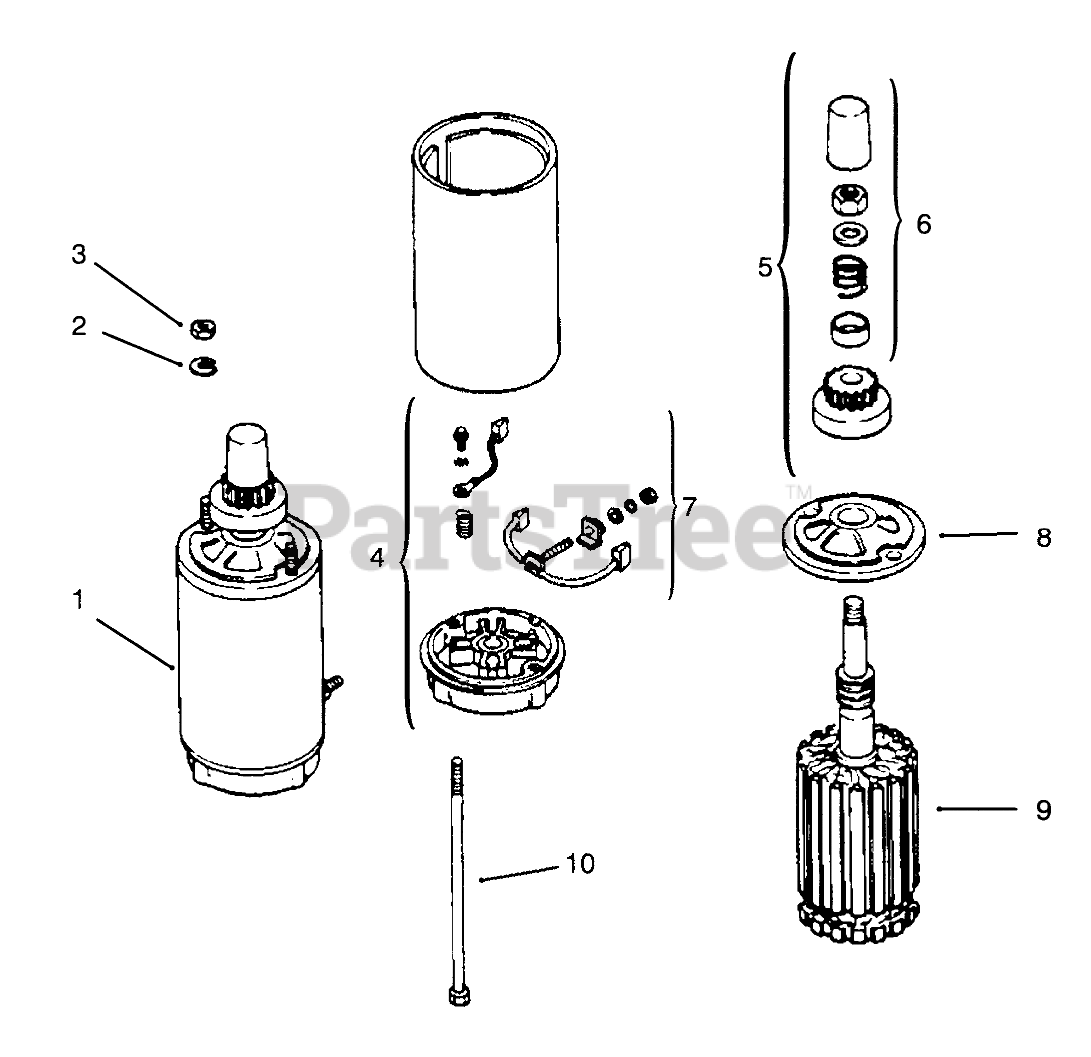

STARTER ENGINE KOHLER MODEL NO. MV16S-TYPE PS56519 Parts Diagram

  • Title

1

5209809

Starter Assembly (Incl. Ref. #4-10)

$

$

Not available

2

Toro X-20-1

Washer

$

$

Currently unavailable

3

Toro x-81-1

Nut

$

$

Currently unavailable

4

5222709

Cap-Commutator End (Incl. Ref. # 9)

$

$

Not available

5

5275505

Kit-Drive (Incl. Ref. #5)

$

$

Not available

6

5275508

Kit-Drive Parts

$

$

Not available

7

4875515

Kit-Brush

$

$

Not available

8

5222701

Cap-Drive End

$

$

Not available

9

5217002

Armature

$

$

Not available

10

5221101

Bolt

$

$

Not available

5235701

Lubricant Starter

Note: Not illustrated

$

$

Not available
